15-18 FRAME
Storage Box

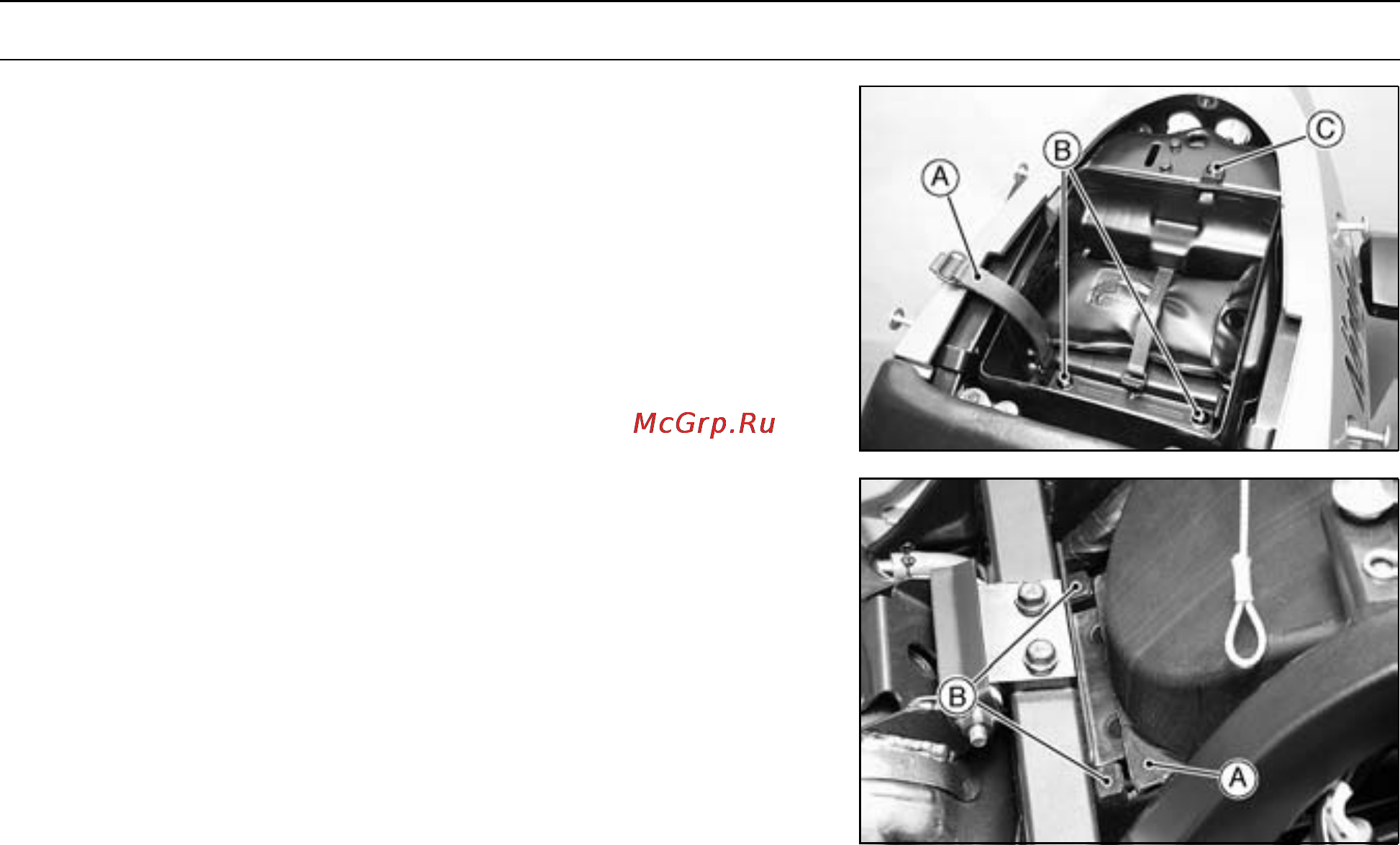

Storage Box Removal
•
Remove:
Seats (see this chapter)
Band [A]
Bolts [B ]
Bolt [C]
•
Pulling up the rear part of the box backward.
Storage B ox Installation
•
Insert the front part [A] of the box into the hook [B] of the
rear fender rear.
