ELECTRICAL SYSTEM 16-3

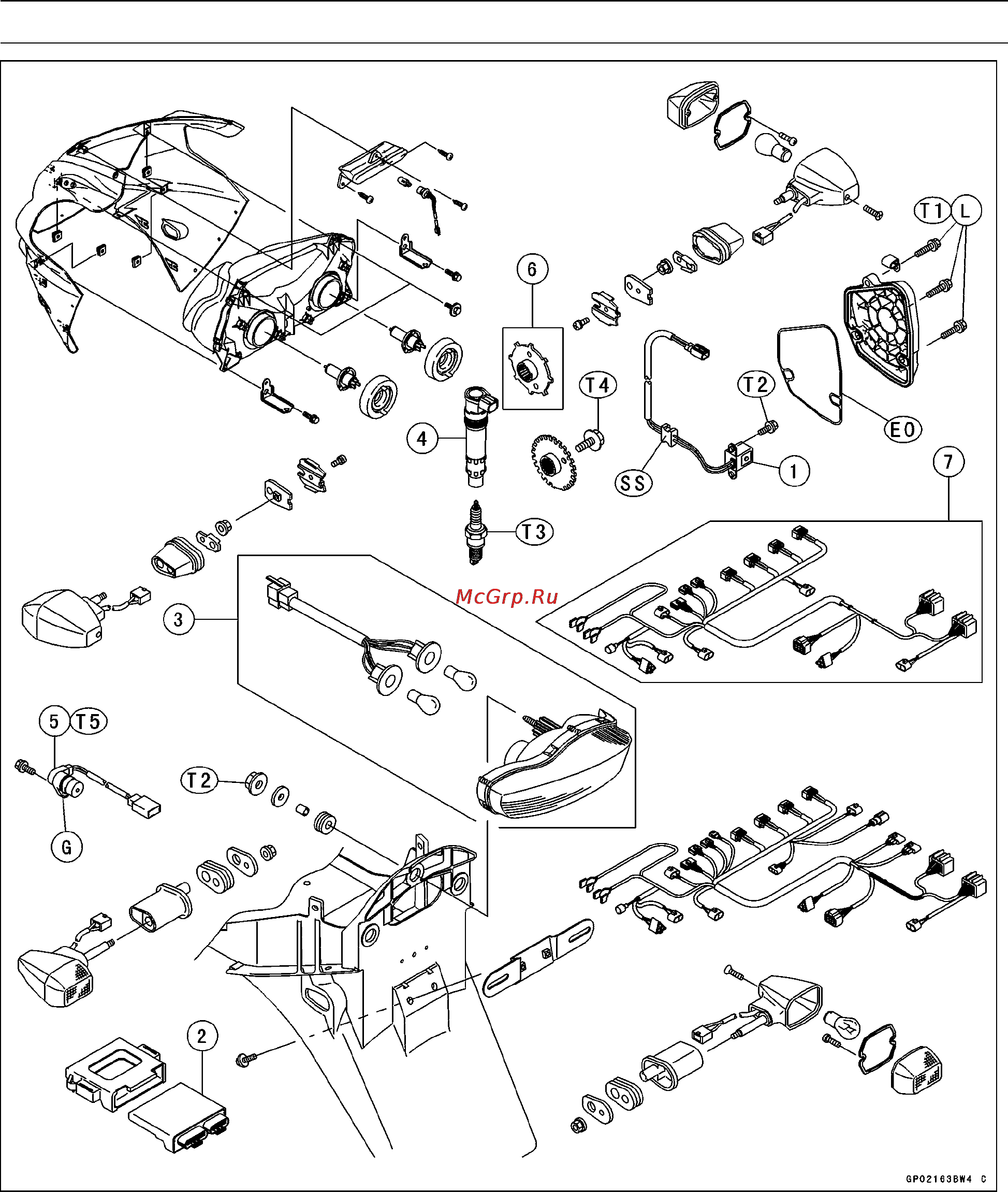

Exploded View
1. Crankshaft Sensor
2. ECU
3. Tail/Brake Lights
4. Stick Coils
5. Camshaft Position Sensor
6. Timing Rotor (ZX1200-B1/B2)
7. Harness (ZX1200-B1/B2)
T1: 15 N·m (1.5 kgf·m, 11 ft·lb)
T2: 6.0 N·m (0.60 kgf·m, 53 in·lb)
T3: 13 N·m (1.3 kgf·m, 115 in·lb)
T4: 39 N·m (4.0 kgf·m, 29 ft·lb)
T5: 12 N·m (1.2 kgf·m, 106 in·lb)
EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
SS: Apply silicone sealant.
