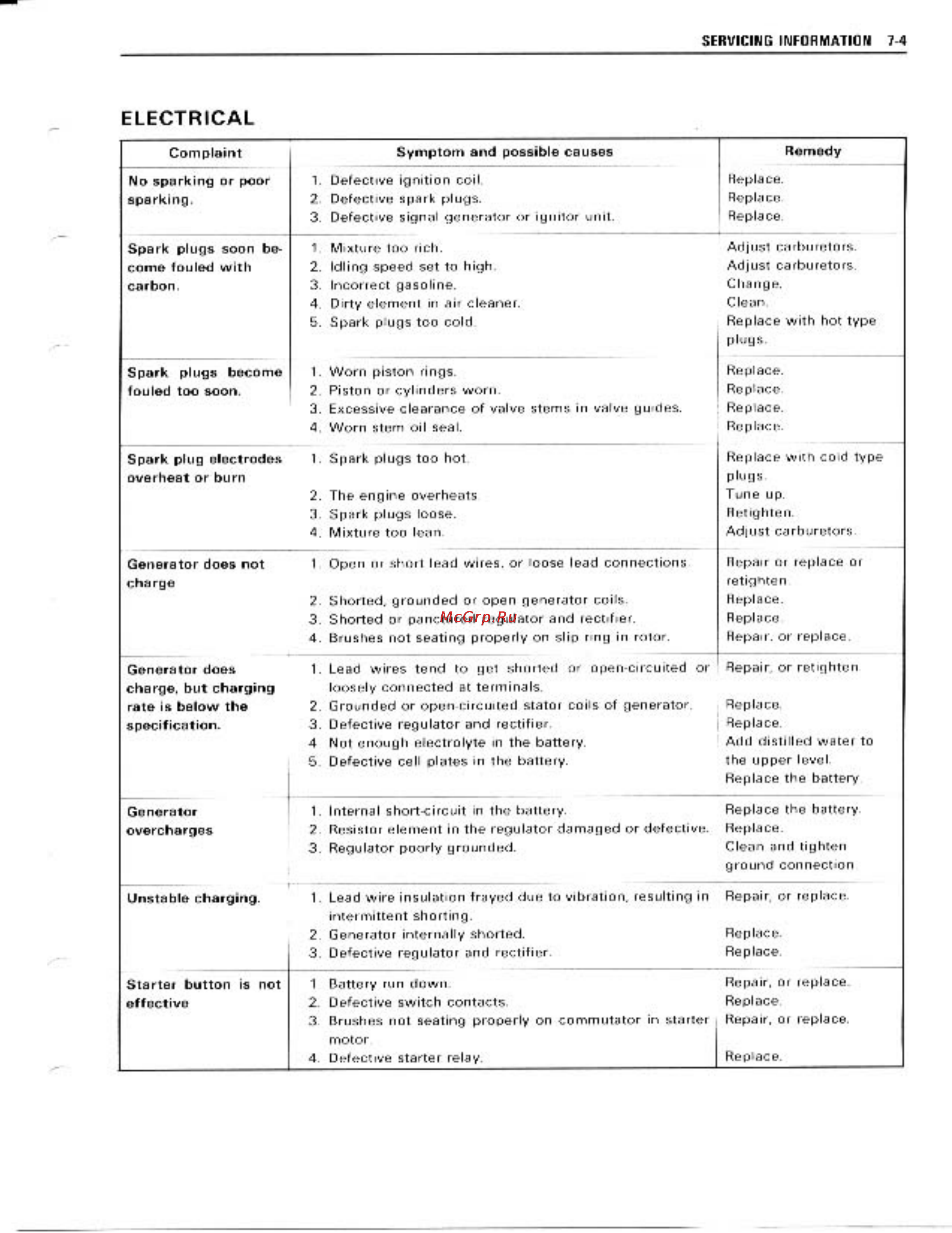

SERVICING INFORMATION 7 4 ELECTRICAL Complaint Symptom and possible causes Romtidy No sptirking or poor sparking 1 Defective ignition coil 2 Defective spark plugs 3 Defective signal generator or ignitor unit Replace Replace Replace Spark plugs soon be come fouled with 1 Mixture ino rich 2 Idling speed set tn high 3 Incorrect gasoline 4 Dirty element in air cleaner 5 Spark p ups too cold Adjust cmbiitetnrs Adjust carburetors Change Clean Replace with hot type plugs Spark plugs become fouled too soon 1 Worn piston rings Piston o cylinders worn 3 Excessive clearance of valve stems in valvu guides 4 Worn slum oil Seal Replace Replace Replace Replace Spark plug olocfrodes overheat or burn 1 Spark plugs too hot Replace with co id type plugs Tune up Retighten Adjust carburetors carbon 2 The engine overheats 3 Spark plugs loose 4 Mixture too lean Generator does not charge 1 Open i short lead wires or roose lead connections I Shorted grounded or open generator coils 3 Shorted o panclmcd regulator and rectifier 4 Brushes not seating properly on slip r ng in rotor Generatur does charge but charging rate is below the specification Generator overcharges Unstable charging Starter button is not effective 1 Lead wires tend to gel shrined a open circuited or loosely connected at terminals 2 Grounded or open circuited statoi coils of generator 3 Defective regulator and rectifier 4 Not enough electrolyte m the battery 5 Defective cell plates in th battery Repair ut replace ÛI retignten Replace Replace Repair or replace Repair or retighten Replace Replace Add distilled water to the upper level Replace the battery 1 Internal short circuit m the battery 2 Resistor element in the regulator damaged or defective 3 Regulator poorly g murid nd Replace the battery Replace Clean ami lighten ground connection 1 Lead wire insulation frayed due to vibration resulting in intermittent shorting 2 Generator internally shotted 3 Defective regulator and rectifier Repair or replace 1 Battery run down 2 Defective switch contacts 3 Brushes not seating properly on commutator in starter motor 4 Defective starter relay Repair oi replace Replace Repair or replace Replace Replace Replace ________________
