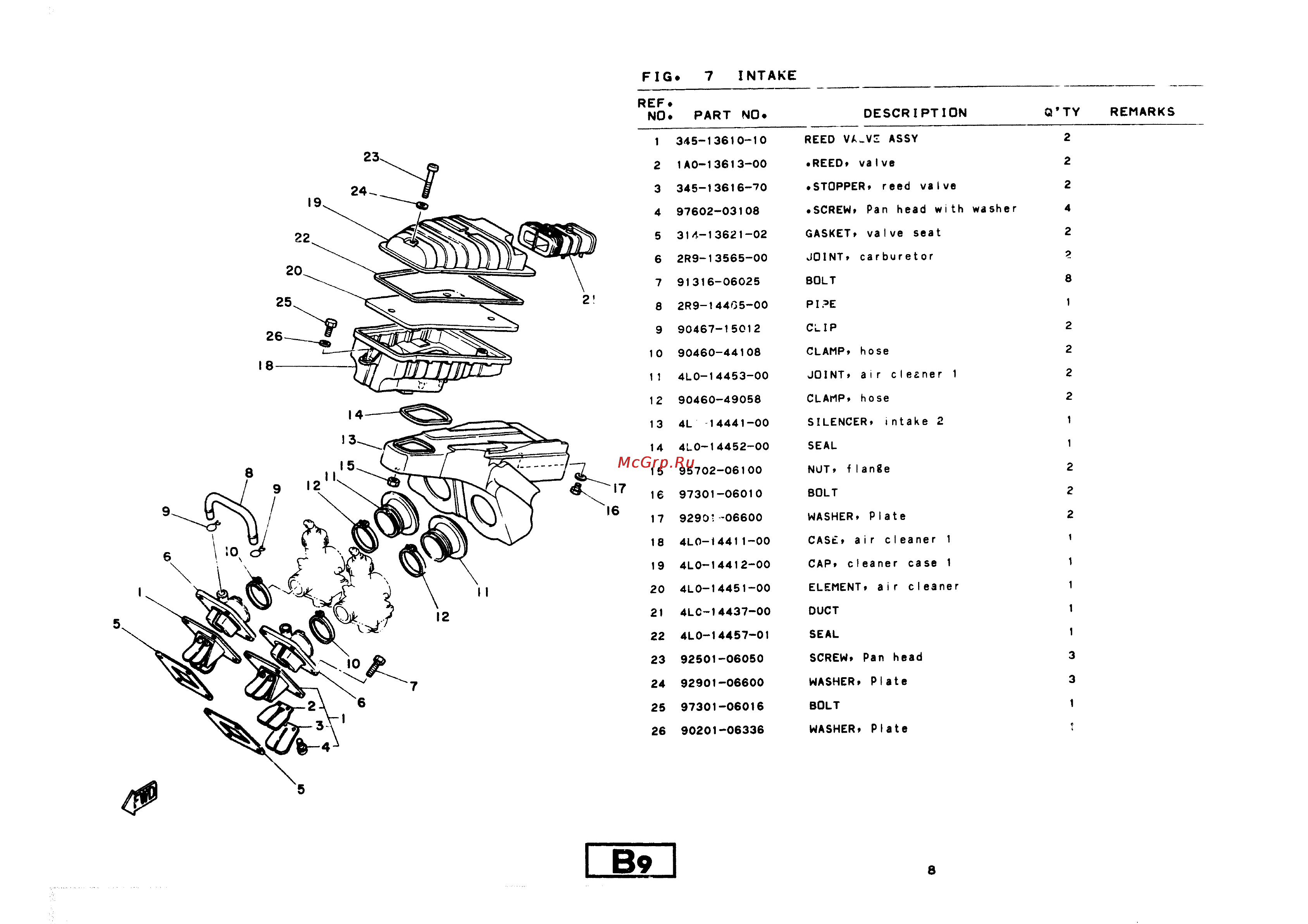

FIG 7 INTAKE REF NO PART NO B9 DESCRIPTION Q TY REMARKS 1 345 13610 10 REED VA VZ ASSY 2 2 1A0 13613 00 REED valve 2 3 345 13616 70 STOPPER reed valve 2 4 97602 03108 SCREW Pan head with washer 4 5 314 13621 02 GASKET valve seat 2 6 2R9 13565 00 JOINT carburetor 2 7 91316 06025 BOLT 8 8 2R9 14465 00 PIPE 1 9 90467 15012 CLIP 2 10 90460 44108 CLAMP hose 2 11 4L0 14453 00 JOINT air cleaner 1 2 12 90460 49058 CLAMP hose 2 13 4L 14441 00 SILENCER i ntake 2 1 14 4L0 14452 00 SEAL 1 15 95702 06100 NUT flange 2 16 97301 06010 BOLT 2 17 92901 06600 WASHER Plate 2 18 4L0 14411 00 CASE air cleaner 1 1 19 4L0 14412 00 CAP cleaner case 1 1 20 4L0 14451 00 ELEMENT air cleaner 1 21 4LC 14437 00 DUCT 1 22 4L0 14457 01 SEAL 1 23 92501 06050 SCREW Pan head 3 24 92901 06600 WASHER Plate 3 25 97301 06016 BOLT 1 26 90201 06336 WASHER Plate 8
