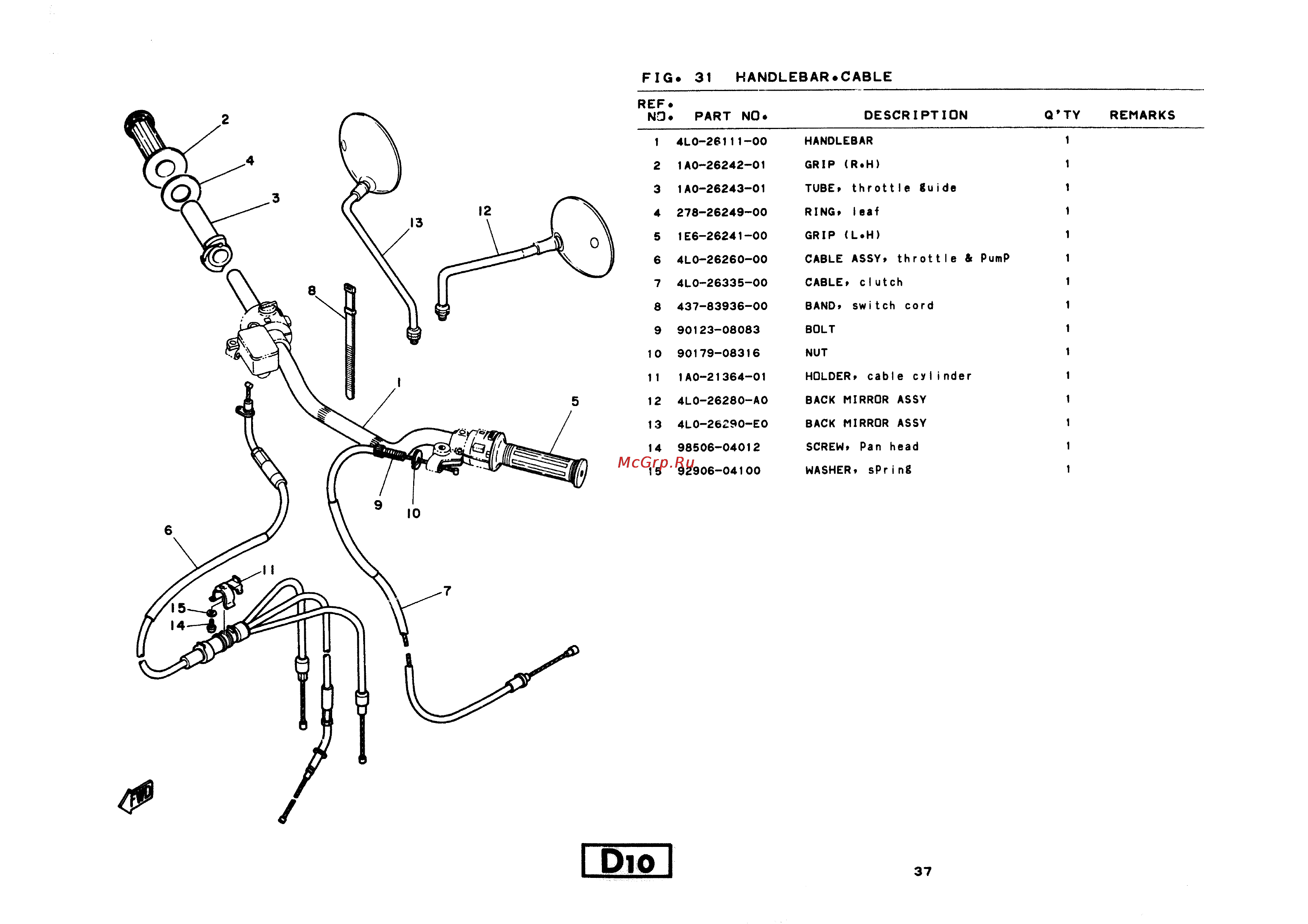

FIG 31 HANDLEBAR CABLE REF NO DESCRIPTION PART NO Q TY 1 4L0 26111 00 HANDLEBAR 1 2 1 AO 26242 01 GRIP R H 1 3 1 AO 26243 01 TUBE throttle guide 1 4 278 26249 00 RING leaf 1 5 1E6 26241 00 GRIP L H 1 6 4L0 26260 00 CABLE ASSY throttle PumP 1 7 4L0 26335 00 CABLE clutch 1 8 437 83936 00 BAND switch cord 1 9 90123 08083 BOLT 1 10 90179 08316 NUT 1 11 1 AO 21364 01 HOLDER cable cylinder 1 12 4L0 26280 A0 BACK MIRROR ASSY 1 13 4L0 26290 E0 BACK MIRROR ASSY 1 14 98506 04012 SCREW Pan head 1 15 92906 04100 WASHER sPring 1 Dio 37 REMARKS
