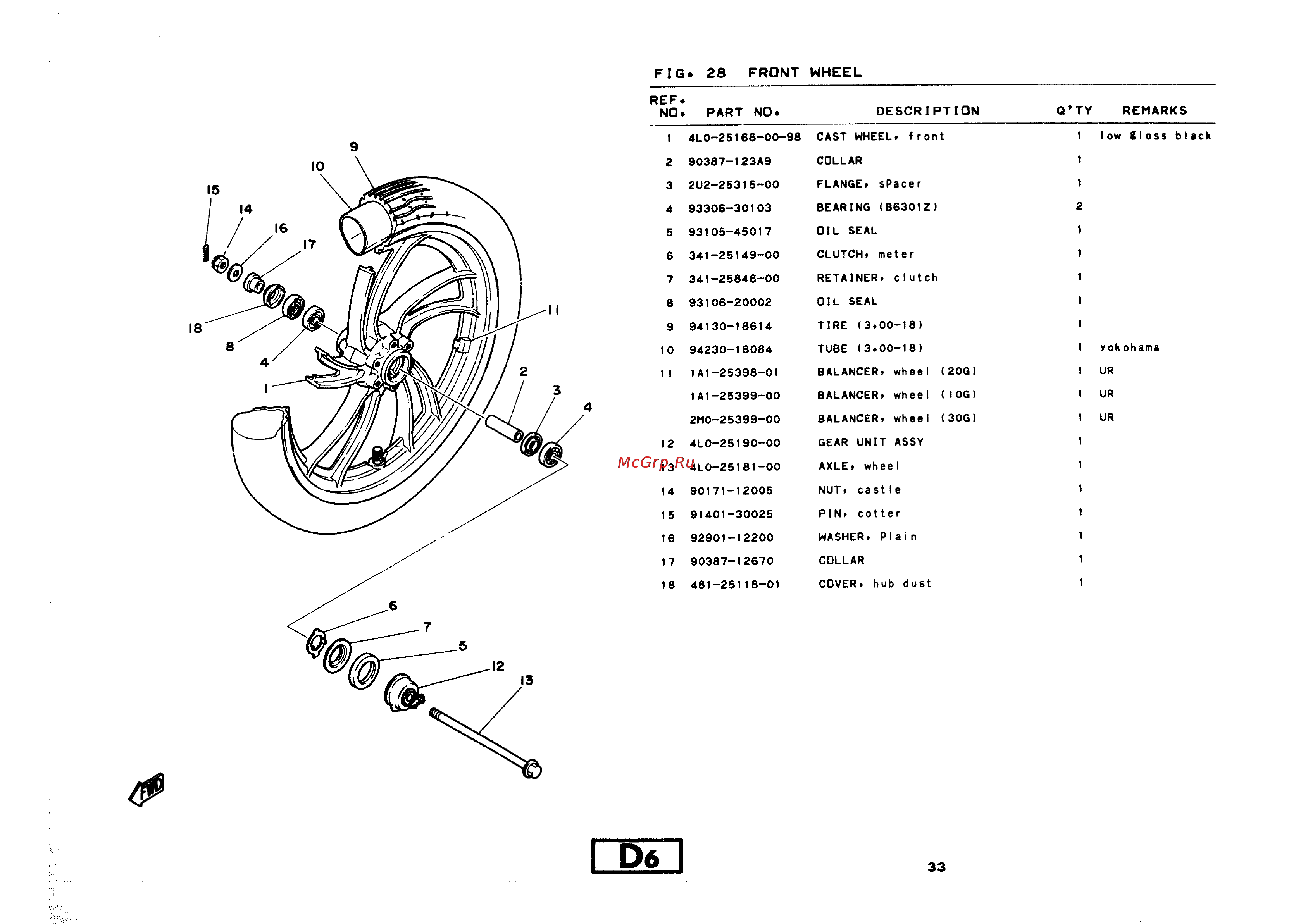

FIG 28 FRONT WHEEL REF NO PART NO D6 DESCRIPTION Q TY REMARKS 1 4L0 25168 00 98 CAST WHEEL front 1 low gloss black 2 90387 123A9 COLLAR 1 3 2U2 25315 00 FLANGE sPacer 1 4 93306 30103 BEARING 86301Z 2 5 93105 45017 IL SEAL 1 6 341 25149 00 CLUTCH meter 1 7 341 25846 00 RETAINER clutch 1 8 93106 20002 IL SEAL 1 9 94130 18614 TIRE 3 00 18 1 10 94230 18084 TUBE 3 00 18 1 Yokohama 11 1A1 25398 01 BALANCER wheel 20G 1 UR 1A1 25399 00 BALANCER wheeI 1 OG 1 UR 2M0 25399 00 BALANCER wheel 30G 1 UR 12 4L0 25190 00 GEAR UNIT ASSY 1 13 4L0 25181 00 AXLE wheel 1 14 90171 12005 NUT castle 1 15 91401 30025 PIN cotter 1 16 92901 12200 WASHER Plain 1 17 90387 12670 COLLAR 1 18 481 25118 01 COVER hub dust 1 33
