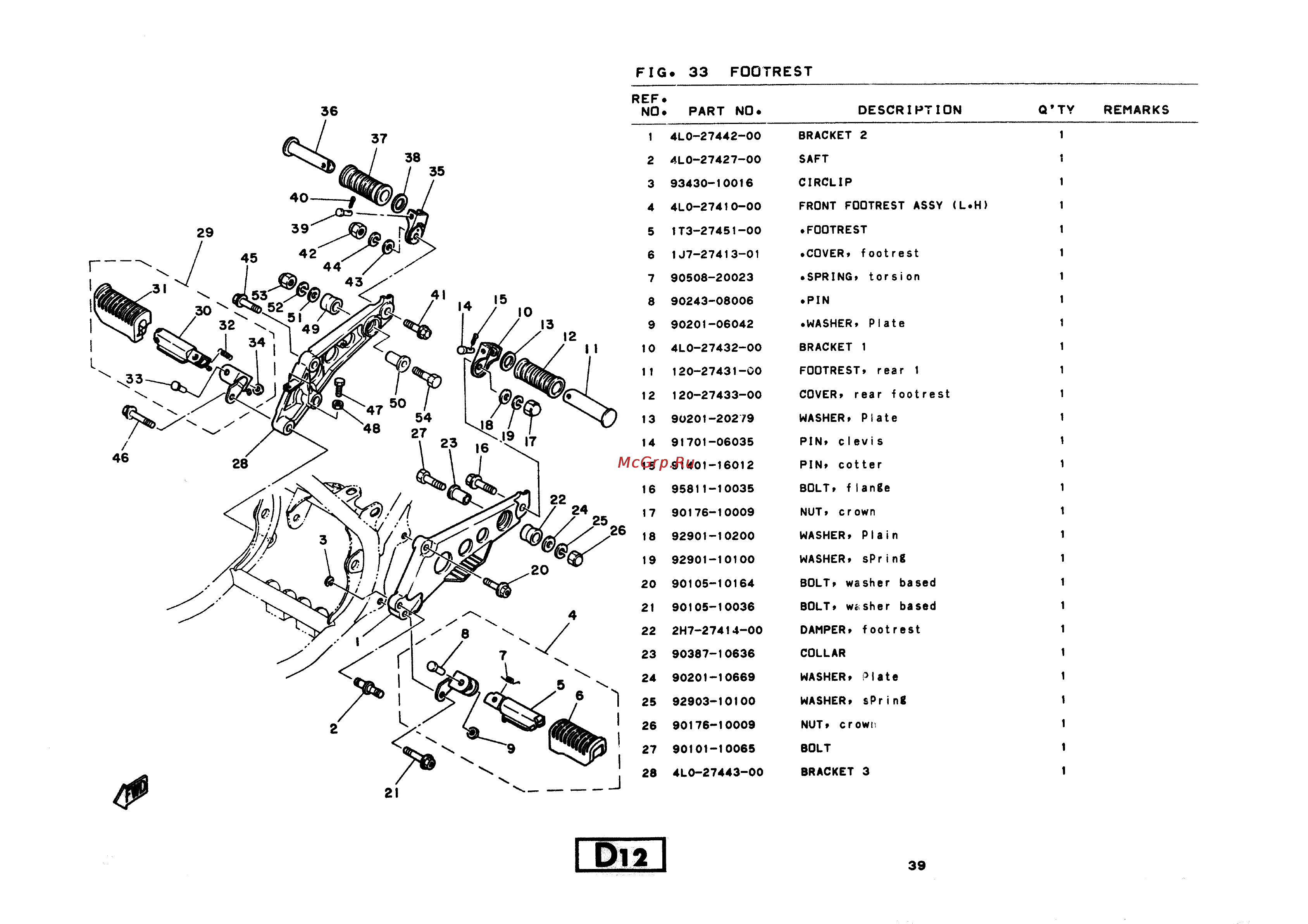

FIG 33 FOOTREST 36 REF NO DESCRIPTION PART NO Q TY 1 4L0 27442 00 BRACKET 2 1 2 4L0 27427 00 SAFT 1 3 93430 10016 CIRCLIP 1 4 4L0 27410 00 FRONT FOOTREST ASSY L H 1 5 1T3 27451 00 FOOTREST 1 6 1J7 27413 01 COVER footrest 1 7 90508 20023 SPRING torsion 1 8 90243 08006 PIN 1 9 90201 06042 WASHER Plate 1 10 4L0 27432 00 BRACKET 1 1 11 120 27431 00 FOOTREST rear 1 1 12 120 27433 00 COVER rear footrest 1 13 90201 20279 WASHER Plate 1 14 91701 06035 PIN clevis 1 15 91401 16012 PIN cotter 1 16 95811 10035 BOLT flange 1 17 90176 10009 NUT crown 1 18 92901 10200 WASHER Plain 1 19 92901 10100 WASHER sPring 1 20 90105 10164 BOLT washer based 1 21 90105 10036 BOLT washer based 1 22 2H7 27414 00 DAMPER footrest 1 23 90387 10636 COLLAR 1 24 90201 10669 WASHER Plate 1 25 92903 10100 WASHER spring 1 26 90176 10009 NUT crowti 1 27 90101 10065 BOLT 1 28 4L0 27443 00 BRACKET 3 1 D12 39 REMARKS
