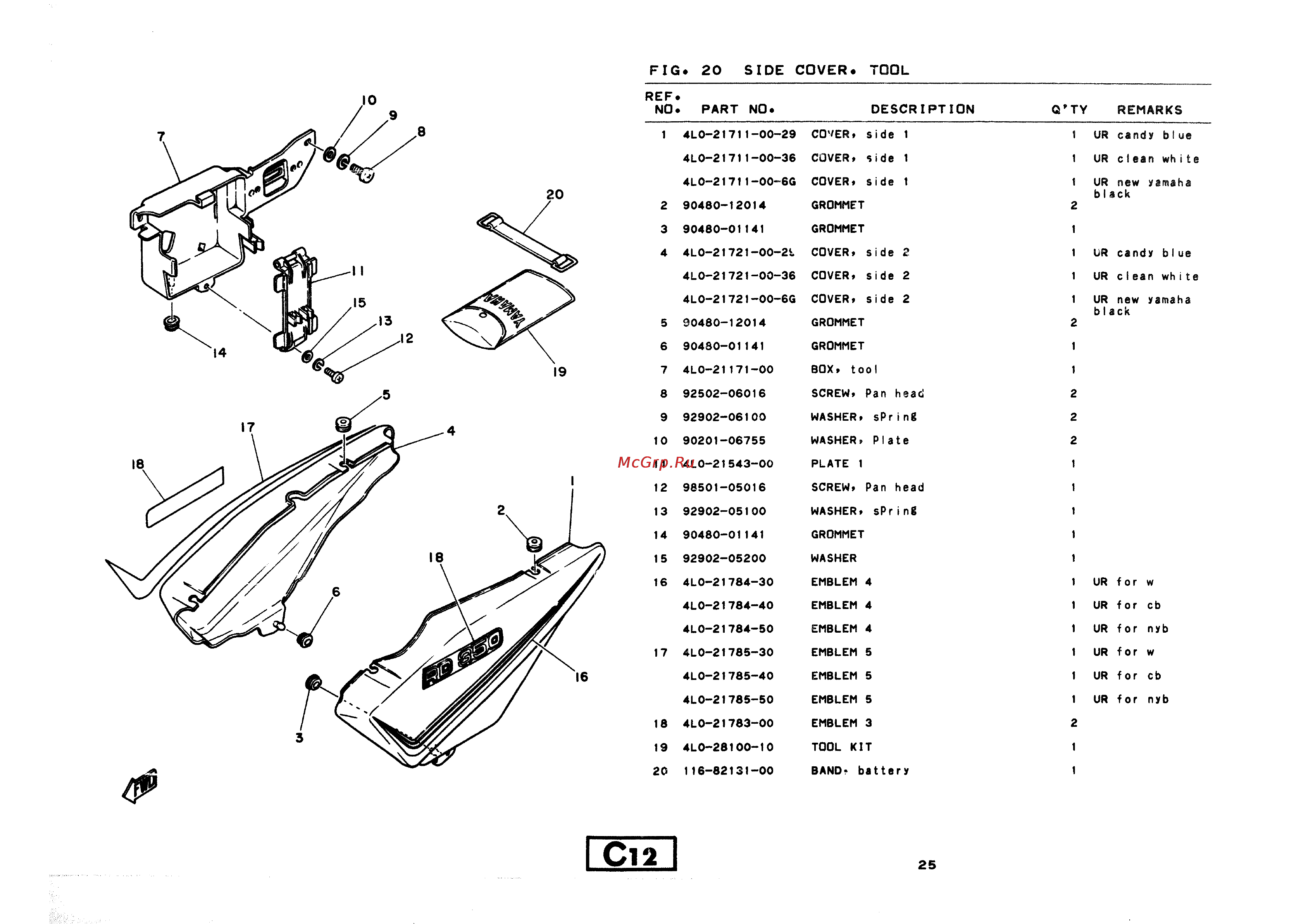

FIG 20 SIDE COVER TOOL REF NO PART NO 1 Q TY REMARKS 4L0 21711 00 29 COVER side 1 1 4L0 21711 00 36 COVER side 1 1 UR clean white 4L0 2171 1 00 6G COVER side 1 1 UR new yamaha black 2 90480 12014 GROMMET 2 3 90480 01141 GROMMET 1 4 4L0 21721 00 21 UR candy blue COVER side 2 1 UR candy blue 4L0 21721 00 36 COVER side 2 1 UR clean white 4L0 21721 00 6G COVER side 2 1 UR new yamaha black GROMMET 2 6 90480 01141 GROMMET 1 7 4L0 21171 00 BOX tool 1 8 92502 06016 SCREW Pan head 2 9 92902 06100 WASHER sPring 2 10 90201 06755 WASHER Plate 2 11 PLATE 1 1 12 98501 05016 SCREW Pan head 1 13 92902 05100 WASHER sPring 1 14 90480 01141 GROMMET 1 15 92902 05200 WASHER 1 16 4L0 21784 30 EMBLEM 4 1 UR for w 4L0 21784 40 EMBLEM 4 1 UR for cb 4L0 21784 50 EMBLEM 4 1 UR for nyb EMBLEM 5 1 UR for w 4L0 21785 40 EMBLEM 5 1 UR for cb 4L0 21785 50 EMBLEM 5 1 UR for nyb 18 4L0 21783 00 EMBLEM 3 2 19 4L0 28100 10 TOOL KIT 1 20 116 82131 00 BAND battery 1 5 90480 12014 4L0 21543 00 17 4L0 21785 30 Ç12 DESCRIPTION 25
