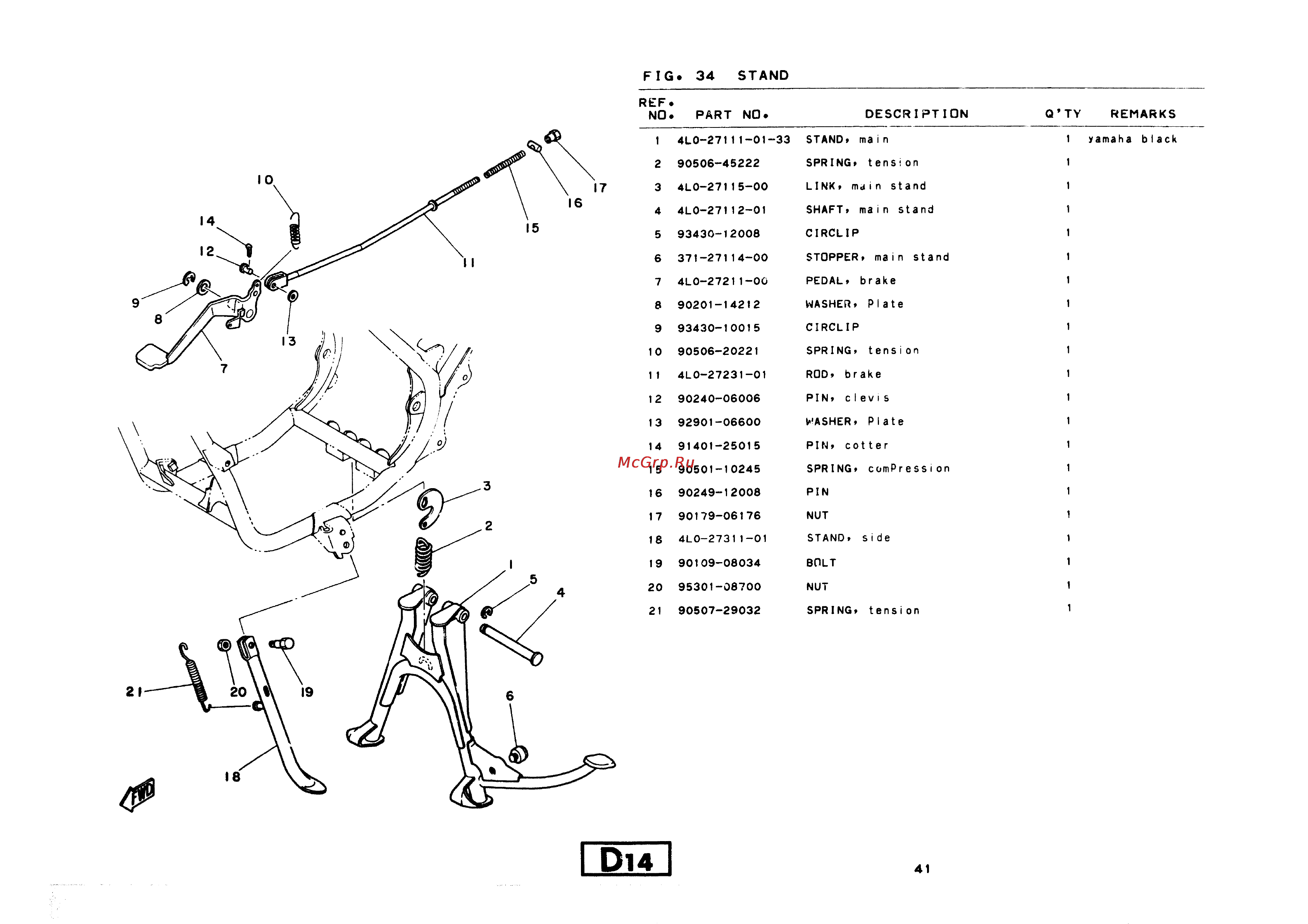

FIG 34 STAND REF NO DM DESCRIPTION PART NO Q TY REMARKS 1 4L0 27111 01 33 STAND ma i n 1 yamaha black 2 90506 45222 SPRING tension 1 3 4L0 27115 00 LINK main stand 1 4 4L0 27112 01 SHAFT main stand 1 5 93430 12008 CIRCLIP 1 6 371 27114 00 STOPPER main stand 1 7 4L0 27211 00 PEDAL brake 1 8 90201 14212 WASHER Plate 1 9 93430 10015 CIRCLIP 1 10 90506 20221 SPRING tens i on 1 11 4L0 27231 01 ROD brake 1 12 90240 06006 PIN clevis 1 13 92901 06600 WASHER Plate 1 14 91401 25015 PIN cotter 1 15 90501 10245 SPRING compression 1 16 90249 12008 PIN 1 17 90179 06176 NUT 1 18 4L0 27311 01 STAND side 1 19 90109 08034 BOLT 1 20 95301 08700 NUT 1 21 90507 29032 SPRING tension 1 41
