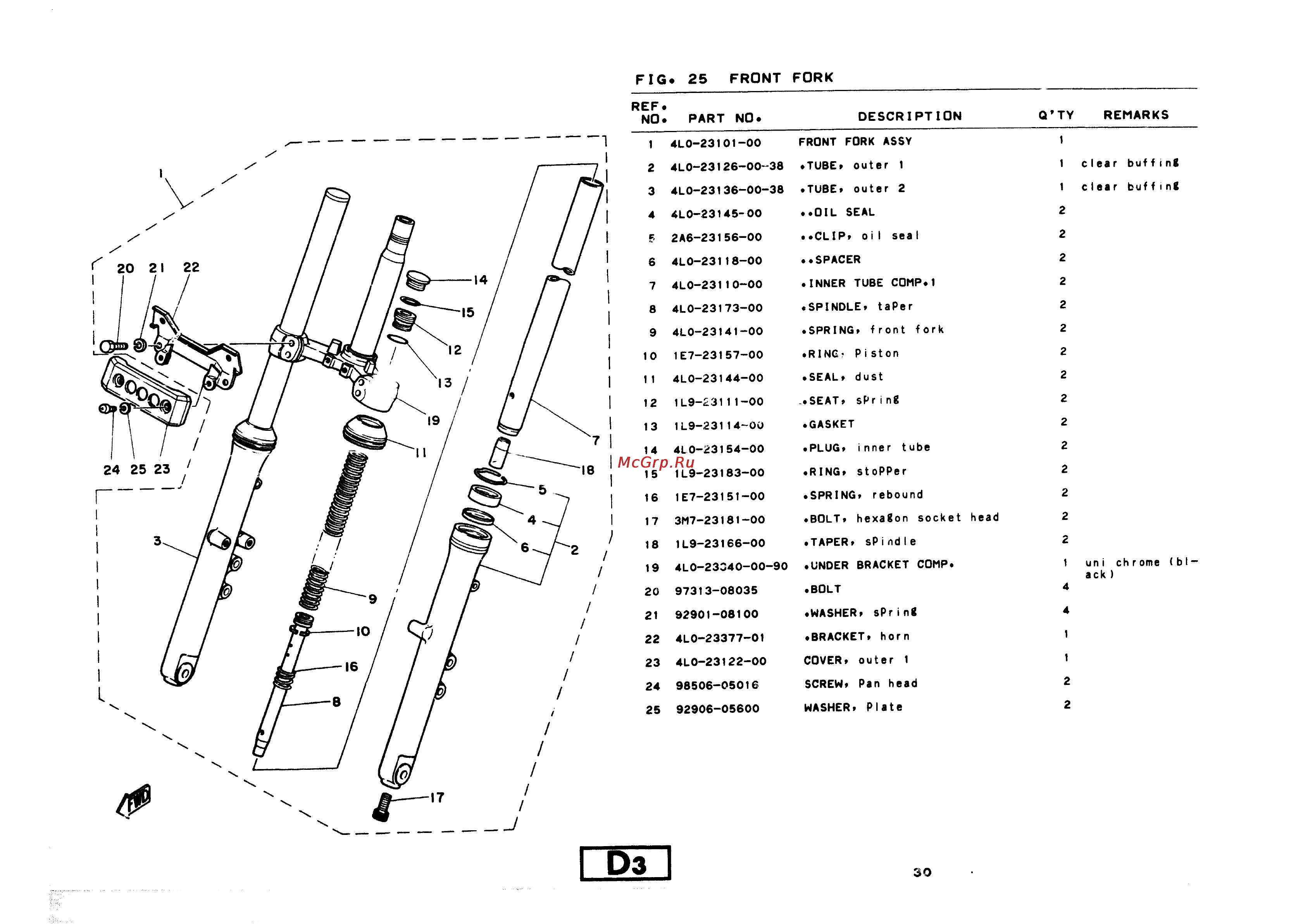

FIG 25 FRONT FORK REF NO DESCRIPTION PART NO Q TY REMARKS 1 4L0 23101 00 FRONT FORK ASSY 1 2 4L0 23126 00 38 TUBE outer 1 1 clear buffing 3 4L0 23136 00 38 TUBE outer 2 1 clear buffing 4 4L0 23145 00 OIL SEAL 2 E 2A6 23156 00 CLIP o iI sea 1 2 6 4L0 23118 00 SPACER 2 7 4L0 23110 00 INNER TUBE C0MP 1 2 8 4L0 23173 00 SPINDLE taPer 2 9 4L0 23141 00 SPRING front fork 2 10 1E7 23157 00 RING Piston 2 11 4L0 23144 00 SEAL dust 2 12 1L9 23111 00 13 1 L9 23114 00 GASKET 2 14 4L 0 23154 00 PLUG inner tube 2 15 1L9 23183 00 RING stoPPer 2 16 1E7 23151 00 SPRING rebound 2 17 3M7 23181 00 BOLT hexagon socket head 2 18 1L9 23166 00 TAPER sPindie 2 19 4L0 23340 00 90 UNDER BRACKET COMP 1 D3 2 SEAT spring 20 97313 08035 BOLT 4 21 92901 08100 WASHER sPring 4 22 4L0 23377 01 BRACKET horn 1 23 4L0 23122 00 COVER outer 1 1 24 98506 05016 SCREW Pan head 2 25 92906 05600 WASHER Plate 2 30 uni ch r ome bl ack
