Yamaha RD350LC (1982) [45/74] Fig 30 rear wheel

Содержание

• Chassis 1
• Contents 1
• Engine 1
• Repair kit 1
• Rd350lc82 2
• Foreword 4
• Chassis 5
• Contents 5
• Engine 5
• Repair kit 5
• Chassis 6
• Contents 6
• Engine 6
• Repair kit 6
• Fig 1 cylinder head cylinder 7
• No part no description q ty remarks 7
• Fig 2 crankshaft piston 8
• No part no description q ty remarks 8
• Fig 3 a c generator 9
• No part no description q ty remarks 9
• Fig 4 water pump 10
• No part no description q ty ret krks 10
• Fig 5 rad iator hose 11
• No part no description q ty remarks 11
• Fig 6 oil pump 12
• No part no description q ty remarks 12
• Fig 6 oil pump 13
• Fig 7 intake 14
• Ref no part no description q ty remarks 14
• Fig 8 carburetor 15
• No part no description q ty remarks 15
• Fig 8 carburetor 16
• No part no description q tv 16
• Remarks 16
• Fig 9 exhaust 17
• Description 18
• Fig 10 crankcase 18
• No part no 18
• Q ty remarks 18
• Fig 11 crankcase cover 19
• No part no description q ty remarks 19
• Fig 12 kick starter 20
• No part no description q ty remarks 20
• Chassis 21
• Contents 21
• Engine 21
• Repair kit 21
• Chassis 22
• Contents 22
• Engine 22
• Repair kit 22
• Description 23
• Fig 13 clutch 23
• No part no 23
• Q ty remarks 23
• Description q ty remarks 24
• Fig 13 clutch 24
• No part no 24
• Fig 14 transmission 25
• No part no description q ty remarks 25
• Fig 14 transmission 26
• No part no description q ty remarks 26
• Fig 15 tachometer gear 27
• No part no description q ty remarks 27
• Fig 16 shift cam fork 28
• No part no description q ty remarks 28
• Fig 17 shift shaft pedal 29
• No part no description q ty remarks 29
• Fig 18 frame 30
• Ref no part no description q ty remarks 30
• Fig 18 frame 31
• No part no description q ty remarks 31
• Fig 19 front fender rear fender 32
• No part no description q ty remarks 32
• Fig 20 side cover tool 33
• No part no description q ty remarks 33
• Fig 21 oil tank 34
• No part no description q ty remarks 34
• Fig 22 rear arm 35
• No part no description q ty remarks 35
• Fig 23 i ear suspension 36
• No pari no description q ty remarks 36
• Chassis 37
• Contents 37
• Engine 37
• Repair kit 37
• Chassis 38
• Contents 38
• Engine 38
• Repair kit 38
• Fig 24 steering 39
• Ref no part no description q ty remarks 39
• Fig 25 front fork 40
• No part no description q ty remarks 40
• Fig 26 fuel tank 41
• No part no description q ty remarks 41
• Fig 27 seat______________ ___________________________________________ 42
• Noi part no description q ty remarks 42
• Fig 28 front wheel 43
• No part no description q ty remarks 43
• Fig 29 front brake caliper 44
• No part no description q ty remarks 44
• Fig 30 rear wheel 45
• No part no description q ty remarks 45
• Fig 30 rear wheel 46
• No part no description g ty remarks 46
• Fig 31 handlebar cable 47
• No part no description q ty remarks 47
• Fig 32 front master cylinder 48
• No part no description q ty remarks 48
• Fig 33 footrest 49
• No part no description q ty remarks 49
• Fig 33 footrest 50
• No part no description q ty 50
• Remarks 50
• Si oi oeoss 50
• Fig 34 stand 51
• No part no description q ty remarks 51
• Fig 35 flasher light 52
• Part no description q ty remarks 52
• Chassis 53
• Contents 53
• Engine 53
• Repair kit 53
• Chassis 54
• Contents 54
• Engine 54
• Repair kit 54
• Description 55
• Fig 36 meter 55
• No part no 55
• Q ty remarks 55
• Fig 37 headlight 56
• No part no description q ty remarks 56
• Fig 37 headlight 57
• No part no description q ty remarks 57
• Fig 38 taillight 58
• No part no description q ty remarks 58
• Fig 39 electrical 1 59
• No part no description q ty remarks 59
• Fig 40 electrical 2 60
• Ncj part no description q ty remarks 60
• Fig 41 handle switch lever 61
• Ref no part no description q ty remarks 61
• Fig 42 repair kit 62
• No part no description q ty 62
• Remarks 62
• Chassis 63
• Contents 63
• Engine 63
• Repair kit 63
• Numerical index numerical index 64
• Numerical index numerical index 65
• Numerical index numerical index 66
• Numerical index 67
• Parts name index parts name index parts name index 68
• Parts name index parts name index parts name index 69
• Parts name index parts name index parts name index 70
• Parts name index parts name index parts name index 71
• B e c c c b 72
• Parts name index parts name index parts name index 72
• Parts name index parts name index parts name index 73
• Parts name index parts name index parts name index 74

Похожие устройства

• Tesy GCU 1020 SRC Инструкция по эксплуатации
• Yamaha NEOS 50 YN50 (2002) Инструкция по эксплуатации
• Tesy GCU 1520 SRC Инструкция по эксплуатации
• Yamaha JOG CS50 (Z) (2002) Инструкция по эксплуатации
• Tesy CB 1507 E01 R Инструкция по эксплуатации
• Yamaha FZR1000 (1993) Инструкция по эксплуатации
• Tesy CB 2009 E01 R Инструкция по эксплуатации
• Yamaha FJR1300(N) (2001) Инструкция по эксплуатации
• Tesy CB 2009 E01 V Инструкция по эксплуатации
• Yamaha YX600 (1984-1992) Инструкция по эксплуатации
• Tesy CB 2512 E01 R Инструкция по эксплуатации
• Yamaha XJ (1984-1992) Инструкция по эксплуатации
• Tesy CB 2512 E01 V Инструкция по эксплуатации
• Yamaha FZ (1984-1992) Инструкция по эксплуатации
• Tesy CB 3014 E01 R Инструкция по эксплуатации
• Yamaha FJ (1984-1992) Инструкция по эксплуатации
• Tesy CC 2008 E05 R Инструкция по эксплуатации
• Yamaha FAZER FZS1000(N) (2001) Инструкция по эксплуатации
• Tesy CC 2510 E05 R Инструкция по эксплуатации
• Yamaha YW50AP (2001) Инструкция по эксплуатации

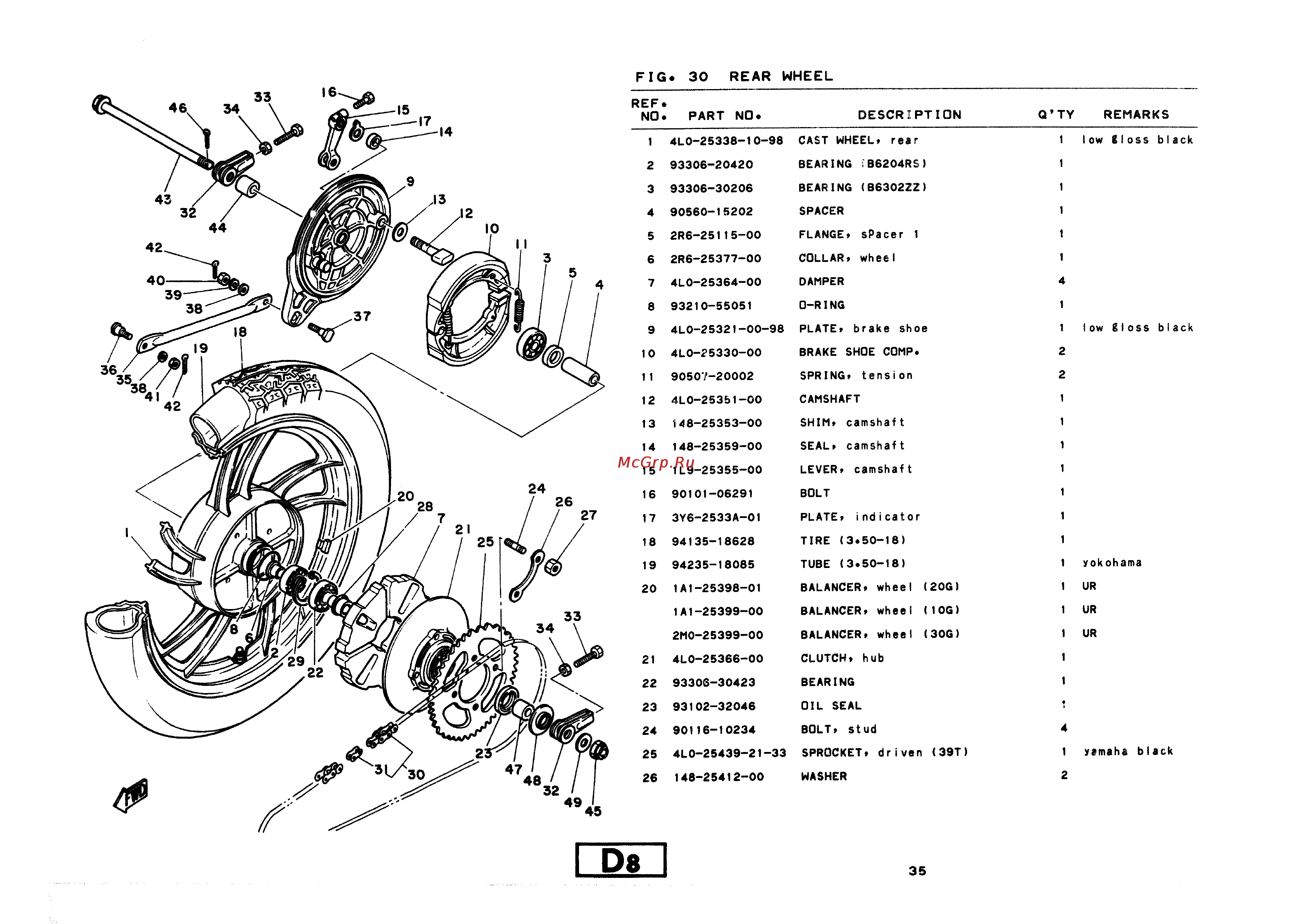

FIG 30 REAR WHEEL REF NO PART NO Q TY REMARKS 1 4L0 25338 10 98 CAST WHEEL rear 1 2 93306 20420 BEARING B6204RS 1 3 93306 30206 BEARING B6302ZZ 1 4 90560 15202 SPACER 1 5 2R6 25115 00 FLANGE sPacer 1 1 6 2R6 25377 00 COLLAR wheel 1 7 4L0 25364 00 DAMPER 4 8 93210 55051 0 RI NG 1 9 4L0 25321 00 98 PLATE brake shoe 1 I OW 4L0 25330 00 BRAKE SHOE COMP 2 11 90507 20002 SPRING tension 2 12 4L0 25351 00 CAMSHAFT 1 13 148 25353 00 SHIM camshaft 1 14 148 25359 00 SEAL camshaft 1 15 1L9 25355 00 LEVER camshaft 1 16 90101 06291 BOLT 1 17 3Y6 2533A 01 PLATE indicator 1 18 94135 18628 TIRE 3 50 18 1 19 94235 18085 TUBE 3 50 18 10 1 ow gloss black gloss black 1 yokohama 1A1 25398 01 BALANCER wheel 20G 1 UR 1A1 25399 00 BALANCER wheel 10G 1 UR 2M0 25399 00 BALANCER wheel 30G 1 UR 21 4L0 25366 00 CLUTCH hub 1 22 93306 30423 BEARING 1 23 93102 32046 OIL SEAL 24 90116 10234 BOLT stud 25 4L0 25439 21 33 SPROCKET driven 39T 26 148 25412 00 WASHER 20 D8 DESCRIPTION 4 1 yamaha black 2 35
