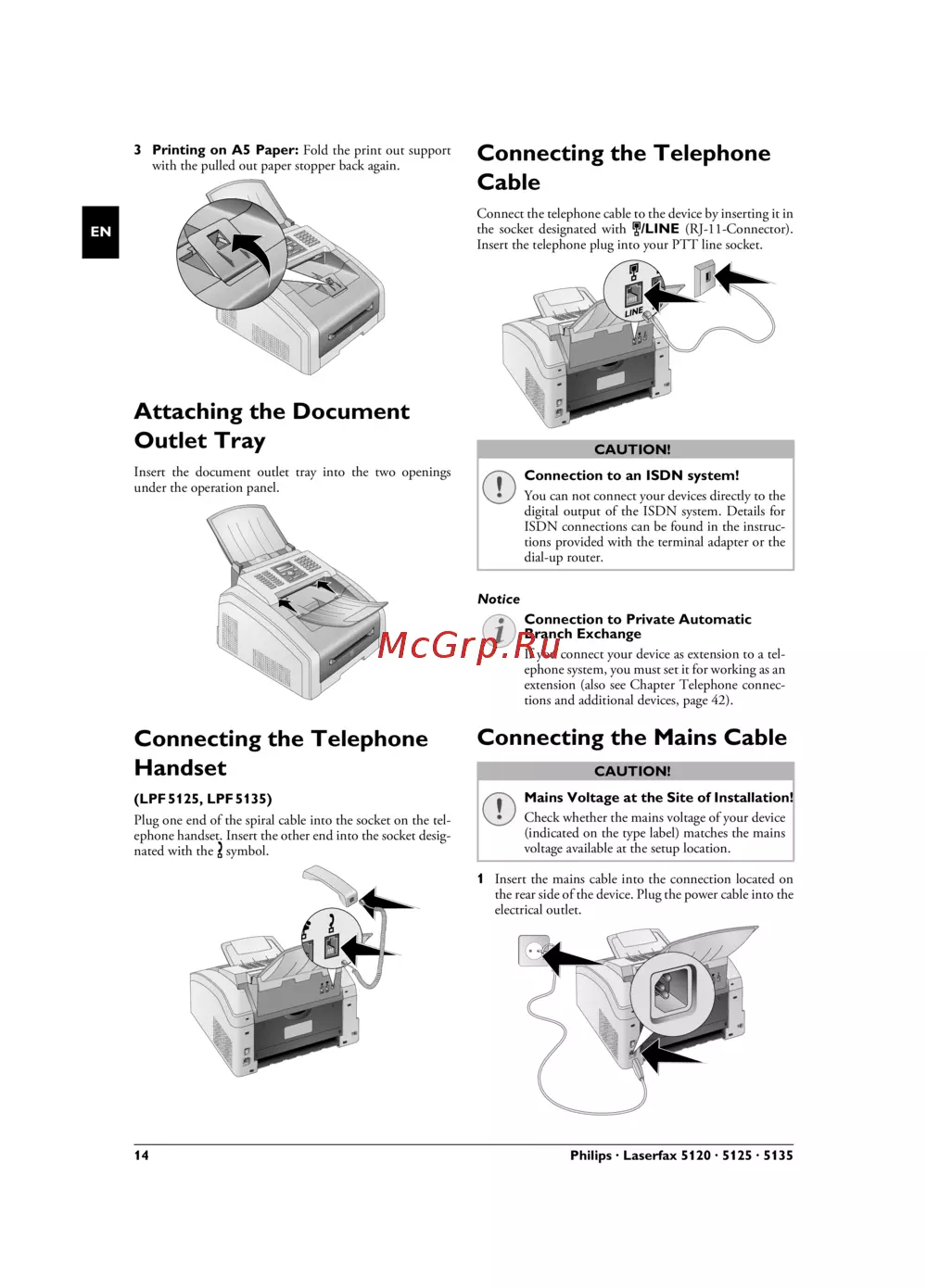

14 Philips · Laserfax 5120 · 5125 · 5135
EN
3 Printing on A5 Paper: Fold the print out support
with the pulled out paper stopper back again.

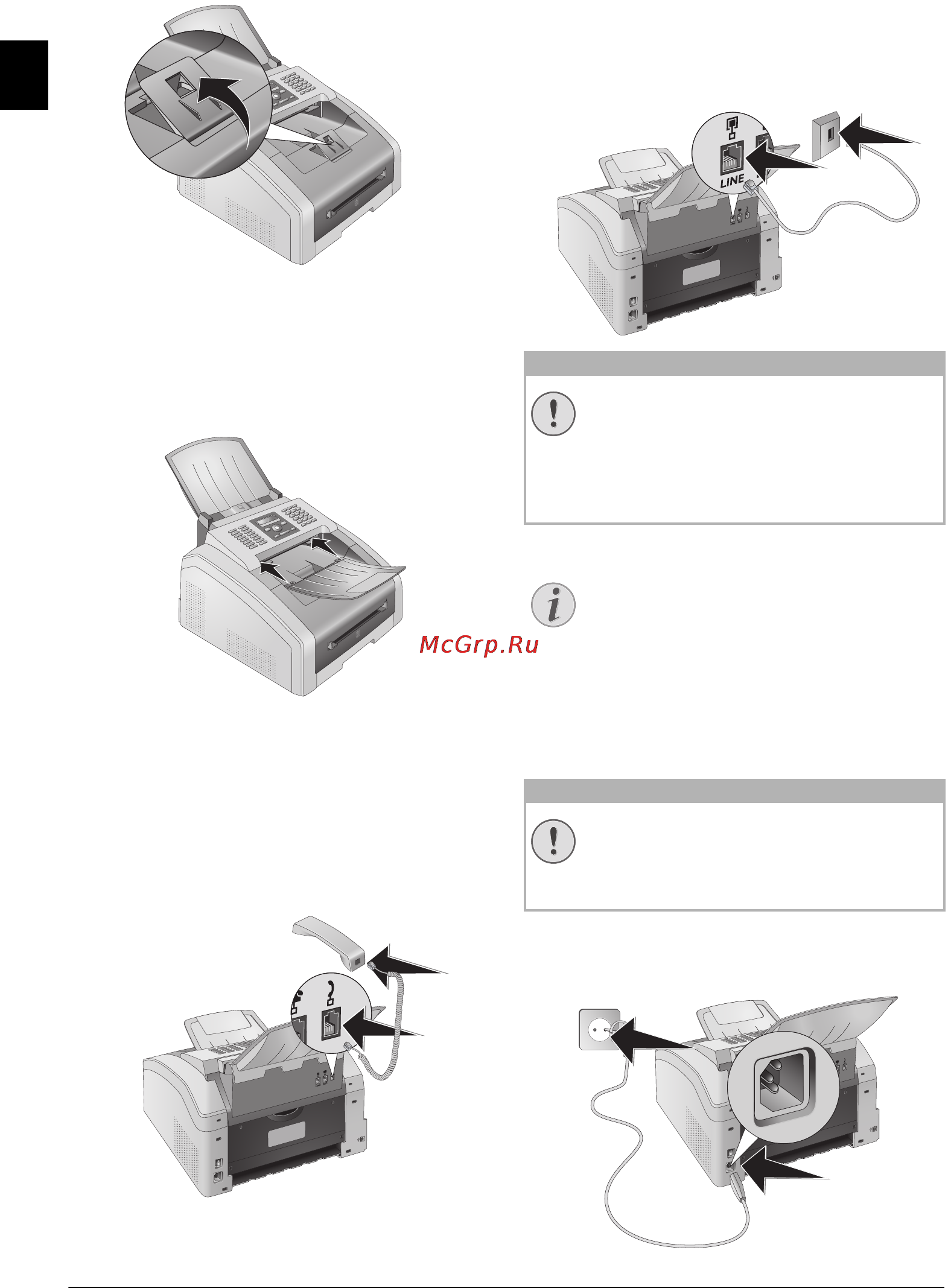

Attaching the Document
Outlet Tray
Attaching the Document Outl et Tray
Insert the document outlet tray into the two openings
under the operation panel.
Dokumentenausgabehalter aufstecken
Connecting the Telephone
Handset
Type 3 (mit Telefon)
(LPF¦5125, LPF¦5135)
Connecting the Handset
Plug one end of the spiral cable into the socket on the tel-
ephone handset. Insert the other end into the socket desig-
nated with the Ð symbol.
Telefonhörer anschließen
Connecting the Telephone
Cable
Connecting the Te lephone Cable
Connect the telephone cable to the device by inserting it in
the socket designated with Î/LINE (RJ-11-Connector).
Insert the telephone plug into your PTT line socket.
Telefonkabel anschließen
Connection to an ISDN system!
PABX Systems 1
Connecting the Mains Cable
Mains Voltage a t the Site of Installation
1 Insert the mains cable into the connection located on
the rear side of the device. Plug the power cable into the
electrical outlet.
CAUTION!
Connection to an ISDN system!
You can not connect your devices directly to the
digital output of the ISDN system. Details for
ISDN connections can be found in the instruc-
tions provided with the terminal adapter or the
dial-up router.
Notice
Connection to Private Automatic
Branch Exchange
If you connect your device as extension to a tel-
ephone system, you must set it for working as an
extension (also see Chapter Telephone connec-
tions and additional devices, page 42).
CAUTION!
Mains Voltage at the Site of Installation!
Check whether the mains voltage of your device
(indicated on the type label) matches the mains
voltage available at the setup location.
lpf-5120-5125-5135-manual-uk-int-253117544-b.book Seite 14 Mittwoch, 16. Dezember 2009 10:01 10
