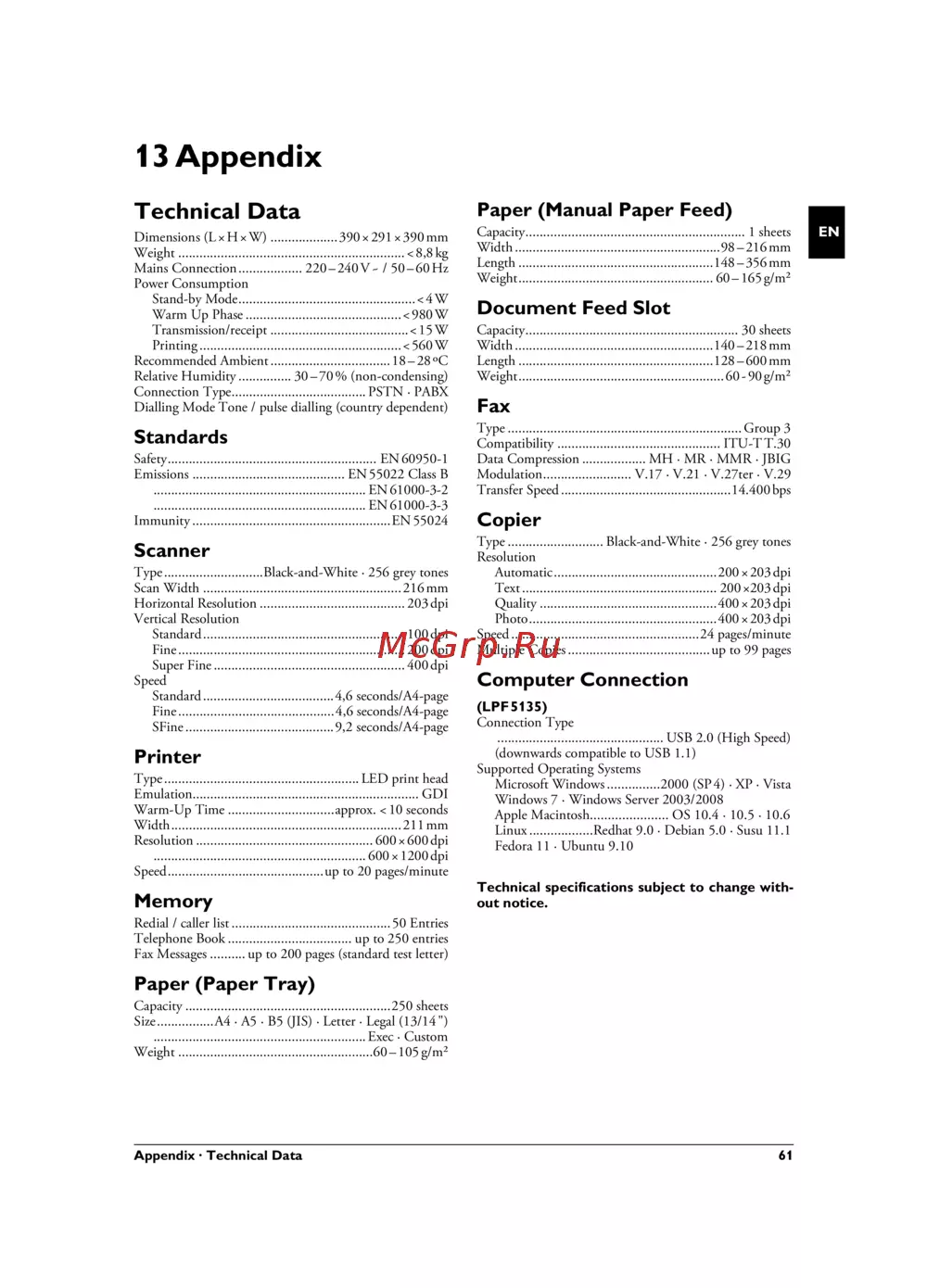

Appendix · Technical Data 61
EN
13 Appendix
Technical Data
Dimensions
Dimensions (L¦×¦H¦×¦W) ...................390¦×¦291¦×¦390¦mm
Weight
Weight ................................................................<¦8,8¦kg
Mains Connection
Mains Connection.................. 220¦–¦240¦V¦~ / 50¦–¦60¦Hz
Power Consumption
Power Consumption
Stand-by Mode
Stand-by Mode..................................................<¦4¦W
Warm Up Phase
Warm Up Phase............................................<¦980¦W
Transmission/receipt
Transmission/receipt .......................................<¦15¦W
Printing
Printing.........................................................<¦560¦W
Recommended Amb ient
Recommended Ambient..................................18¦–¦28¦ºC
Relative Humidi ty
Relative Humidity............... 30¦–¦70¦% (non-condensing)
Connection Type
Connection Type...................................... PSTN · PABX
Dialling Mode
Dialling Mode Tone / pulse dialling (country dependent)
Standards
Safety EN 60950-1
Safety........................................................... EN¦60950-1
Emissions EN 55022 Class B
Emissions ........................................... EN¦55022 Class B
Emissions EN 61000-3-2
............................................................ EN¦61000-3-2
Emissions EN 61000-3-3
............................................................ EN¦61000-3-3
Immunity to El ectrical Noise EN 55024
Immunity ........................................................EN¦55024
Scanner
Type Black-and-White
Type............................Black-and-White · 256 grey tones
Scan Width
Scan Width ........................................................216¦mm
Horizontal Resolution
Horizontal Resolution ......................................... 203¦dpi
Vertical Resolution
Vertical Resolution
Standard
Standard.........................................................100¦dpi
Fine
Fine................................................................ 200¦dpi
Vertical Resolution SFine
Super Fine...................................................... 400¦dpi
Speed
Speed
Standard
Standard.....................................4,6 seconds/A4-page
Fine
Fine............................................4,6 seconds/A4-page
SFine
SFine..........................................9,2 seconds/A4-page
Printer
Type Class 1 LED-Laser Printer
Type....................................................... LED print head
Emulation
Emulation................................................................ GDI
Warm-Up Time
Warm-Up Time ..............................approx. <¦10 seconds
Width
Width.................................................................211¦mm
Resolution Low
Resolution .................................................. 600¦×¦600¦dpi
Resolution High
............................................................ 600¦×¦1200¦dpi
Speed
Speed............................................up to 20 pages/minute
Memory
Redial / caller list
Redial / caller list.............................................50 Entries
Telephone Book
Telephone Book ................................... up to 250 entries
Fax Messages
Fax Messages ..........up to 200 pages (standard test letter)
Paper (Paper Tray)
Capacity
Capacity ..........................................................250 sheets
Size
Size................A4 · A5 · B5 (JIS) · Letter · Legal (13/14¦")
............................................................ Exec · Custom
Weight
Weight .......................................................60¦–¦105¦g/m²
Spaltenumbruch
Paper (Manual Paper Feed)
Capacity
Capacity.............................................................. 1 sheets
Width
Width..........................................................98¦–¦216¦mm
Length
Length .......................................................148¦–¦356¦mm
Weight
Weight....................................................... 60¦–¦165¦g/m²
Document Feed Slot
Capacity
Capacity............................................................ 30 sheets
Width
Width........................................................140¦–¦218¦mm
Length
Length .......................................................128¦–¦600¦mm
Weight
Weight..........................................................60¦-¦90¦g/m²
Fax
Type Group 3
Type .................................................................. Group 3
Compatibility
Compatibility .............................................. ITU-T¦T.30
Data Compression
Data Compression .................. MH · MR · MMR · JBIG
Modulation
Modulation......................... V.17 · V.21 · V.27ter · V.29
Transfer Speed
Transfer Speed................................................14.400¦bps
Copier
Type Black-and-White
Type ........................... Black-and-White · 256 grey tones
Resolution
Resolution
Resolution Auto
Automatic..............................................200¦×¦203¦dpi
Resolution Text
Text....................................................... 200¦×203¦dpi
Resolution Quality
Quality ..................................................400¦×¦203¦dpi
Resolution Photo
Photo.....................................................400¦×¦203¦dpi
Speed
Speed .....................................................24 pages/minute
Multiple Copies
Multiple Copies ........................................up to 99 pages
Computer Connection
Type 4 (PC)
(LPF¦5135)
Connection Type
Connection Type
............................................... USB 2.0 (High Speed)
(downwards compatible to USB 1.1)
Supported Operati ng Systems
Supported Operating Systems
Microsoft Windows
Microsoft Windows ...............2000 (SP¦4) · XP · Vista
Windows 7 · Windows Server 2003/2008
Apple Macintosh
Apple Macintosh...................... OS 10.4 · 10.5 · 10.6
Linux
Linux..................Redhat 9.0 · Debian 5.0 · Susu 11.1
Fedora 11 · Ubuntu 9.10
Subject to Change
Technical specifications subject to change with-
out notice.
