─ 12 ─

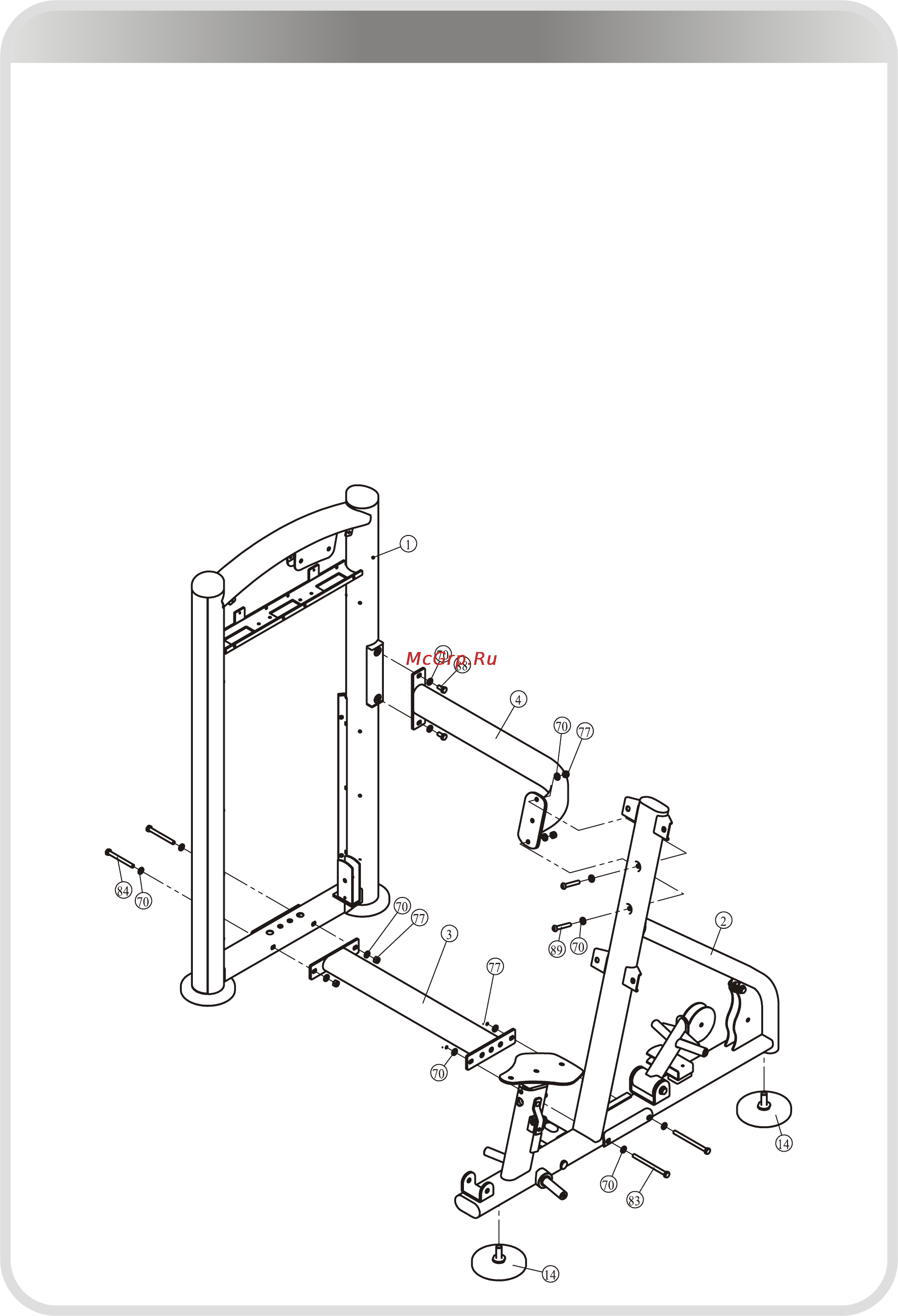

Assembly

STEP 2

1. Attach two Adjustable Foot plate (#14) to the Main Frame (#2).

2. Attach the Bottom Cross Brace (#3) to the Weight Stack Frame (#1) using:

two M10*100 HHB (#84) four Φ11*Φ20*2 Flat Washer (#70)

two M10 Nylon lock Nut (#77)

3. Attach the Bottom Cross Brace (#3) to the Main Frame (#2) using:

two M10*135 HHB (#83) four Φ11*Φ20*2 Flat Washer (#70)

two M10 Nylon lock Nut (#77)

4. Attach the Rear Cross Brace (#4) to the Weight Stack Frame (#1) using:

two M10*20 HHB (#88) two Φ11*Φ20*2 Flat Washer (#70)

5. Attach the Rear Cross Brace (#4) to the Main Frame (#2) using:

two M10*65 BHCS (#89) four Φ11*Φ20*2 Flat Washer (#70)

two M10 Nylon lock Nut (#77)

Note: Hand Τighten Βolts and Nylon Lock nuts.
