─ 15 ─

AssemblyAssembly

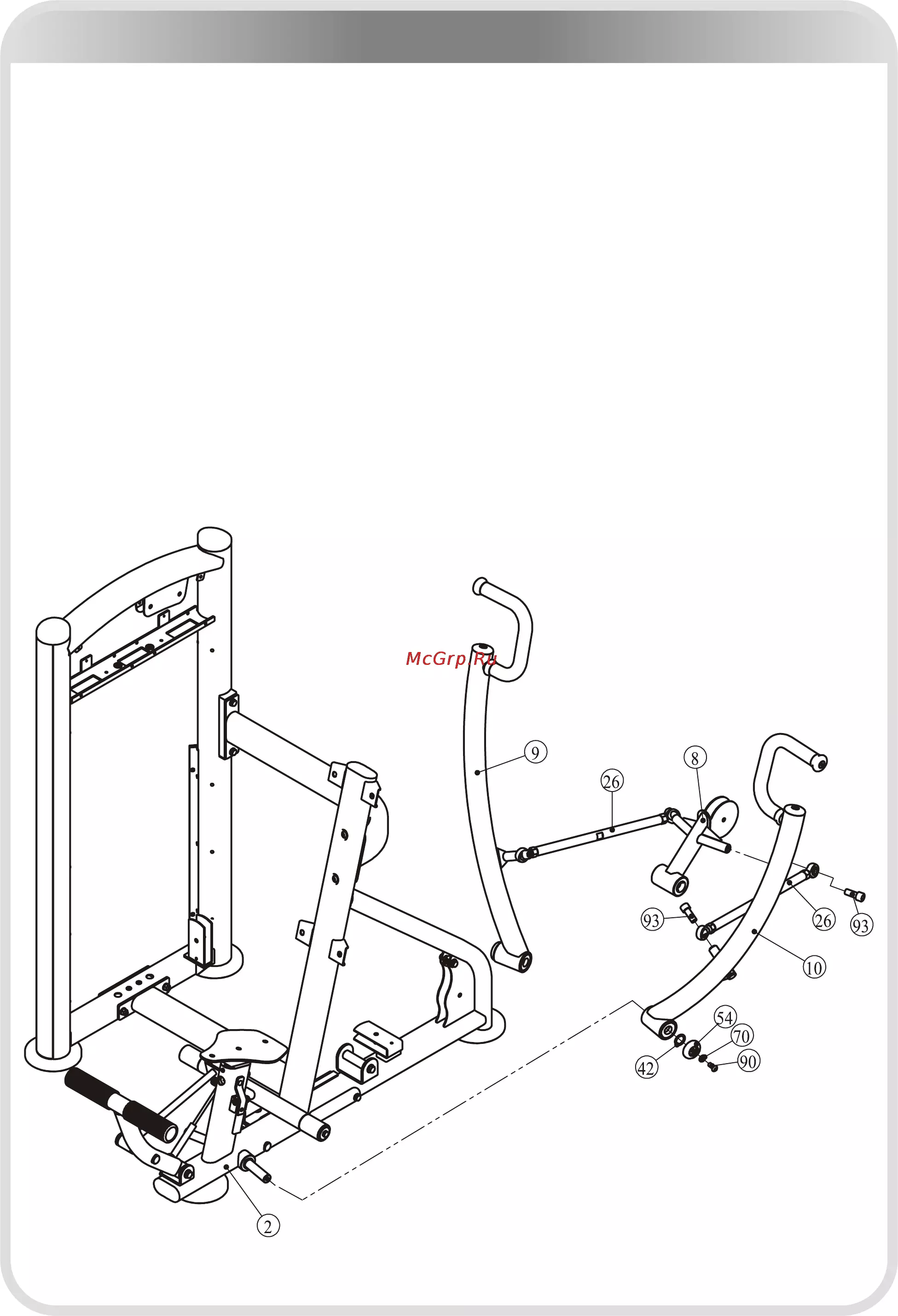

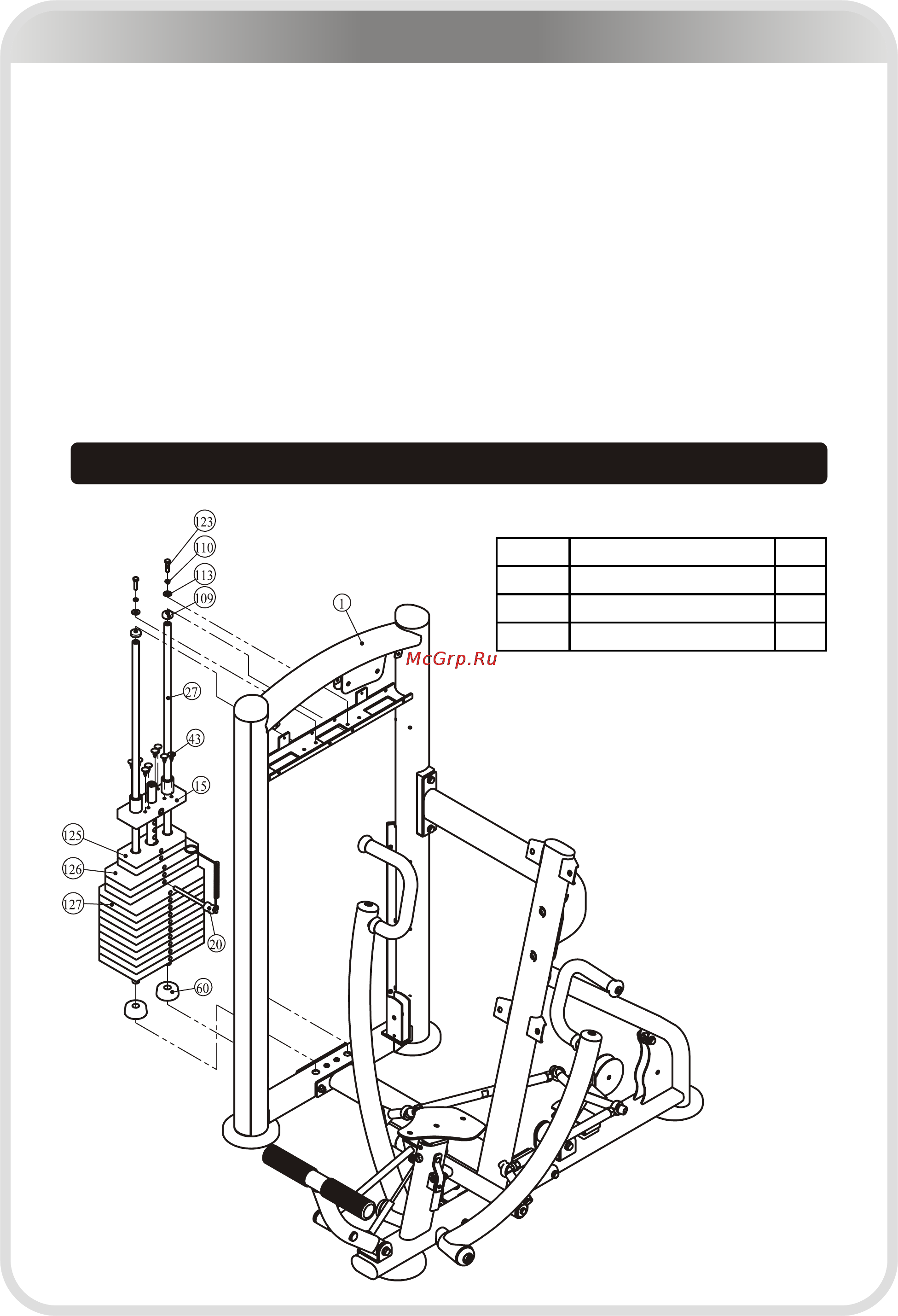

STEP 5

1. Attach:

two Φ19*1177 Guide Rods (#27) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#60)

ten Weight Plate 15LBS (#127) three Weight Plate 10LBS (#126)

two Weight Plate 5LBS (#125) one Top Plate (#15)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#123) two Φ8 Spring Washers (#110)

two Φ9*Φ22*1.6 Flat Washers (#113) two Φ29*Φ19*10 Rubber Plugs (#109)

2. Attach the Selector Pin W/Coil (#20) to the Top Plate (#15).

3. Attach eight Φ8*Φ20*23 Buttons (#43) to the Top Plate (#15).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 200LBS Weights !

Item No. Description Qty

125 Weight Plate 5LBS 2

126 Weight Plate 10LBS 3

127 Weight Plate 15LBS 10

200LBS Weights
