AssemblyAssembly
STEP 7

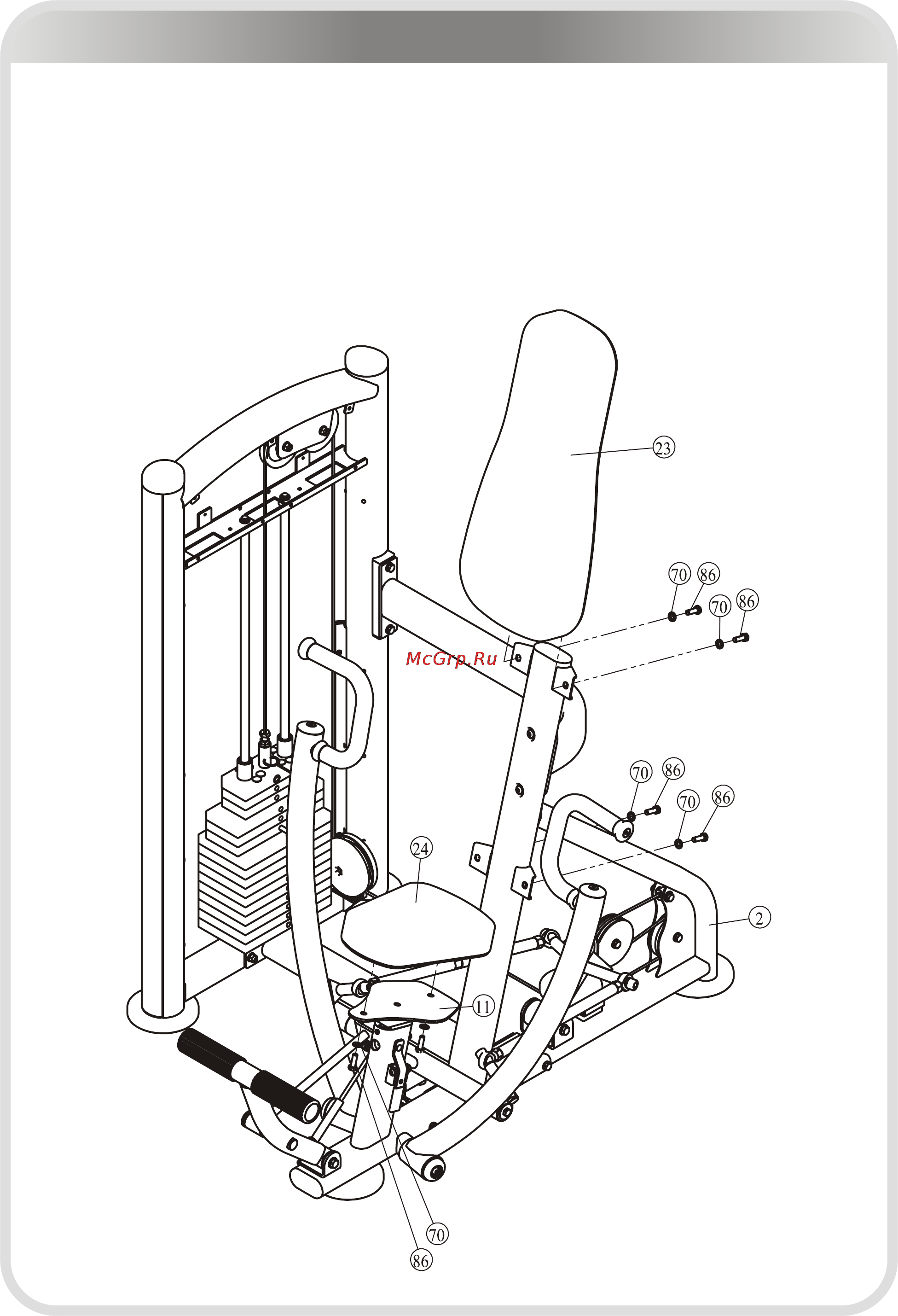

1. Attach the Seat Pad (#24) to the Seat Pad Support (#11) using:
two M10*30 HHB (#86) two Φ11*Φ20*2 Flat Washer (#70)
2. Attach the Back Pad (#23) to the Main Frame (#2) using:
four M10*30 HHB (#86) four Φ11*Φ20*2 Flat Washer (#70)
Note: Wrench Tighten Βolts and Nylon Lock nuts.
