AssemblyAssembly

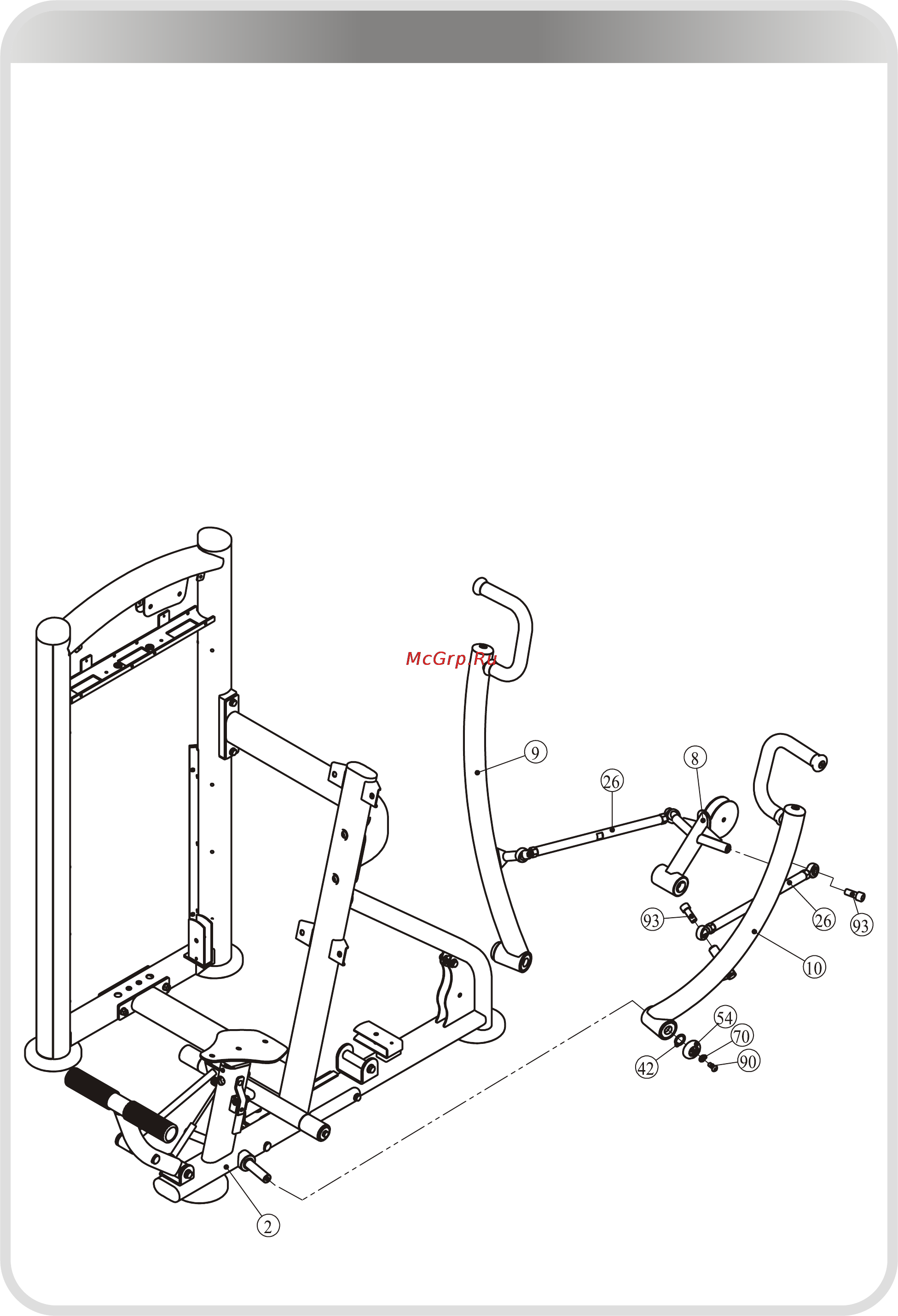

STEP 4

1. Attach the Right Press Arm (#9) to the Main Frame (#2) using:

one M10*25 BHCS (#90) one Φ11*Φ20*2 Flat Washer (#70)

one Φ55*13 Big Washer (#54) one Φ35*Φ25.4*2 Brass Washer (#42)

2. Attach the Left Press Arm (#10) to the Main Frame (#2) using:

one M10*25 BHCS (#90) one Φ11*Φ20*2 Flat Washer (#70)

one Φ55*13 Big Washer (#54) one Φ35*Φ25.4*2 Brass Washer (#42)

3. Attach two Rod (#26) to the Sway Pulley Bracket (#8) using:

two M16*40 SHCS (#93)

4. Attach two Rod (#26) to the Right Press Arm (#9) & Right Press Arm (#10)

using:

two M16*40 SHCS (#93)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
