AssemblyAssembly

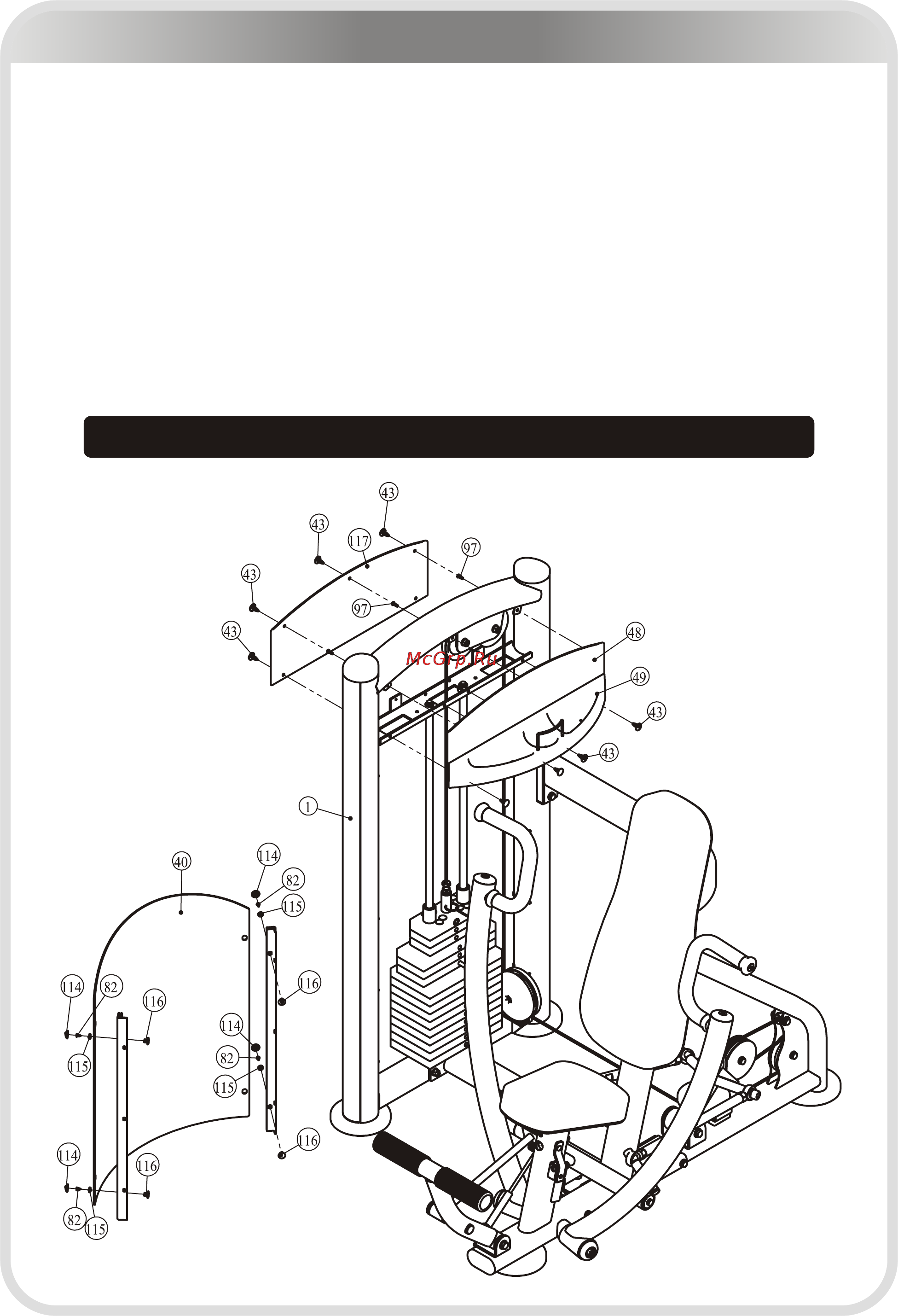

STEP 8

1. Attach one Shroud (#40) to the Weight Stack Frame (#1) using:

four Φ13*3 Plastic Washers (#115) four Φ21*5.7 Plastic Covers (#114)

four Φ18*12 Connect Button (#116) four ST4.2*10 Self-Tapping Screws (#82)

2. Attach the Top Front Shroud & The Front Support (#48, #49) to the Weight

Stack Frame (#1) using:

four Φ8*Φ20*23 Buttons (#43) three M5*16 Flat Philips Screws (#97)

3. Attach the Top Rear Shroud (#117) to the Weight Stack Frame (#1) using:

five Φ8*Φ20*23 Buttons (#43)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Shor t Shroud !
