─ 20 ─

AssemblyAssembly

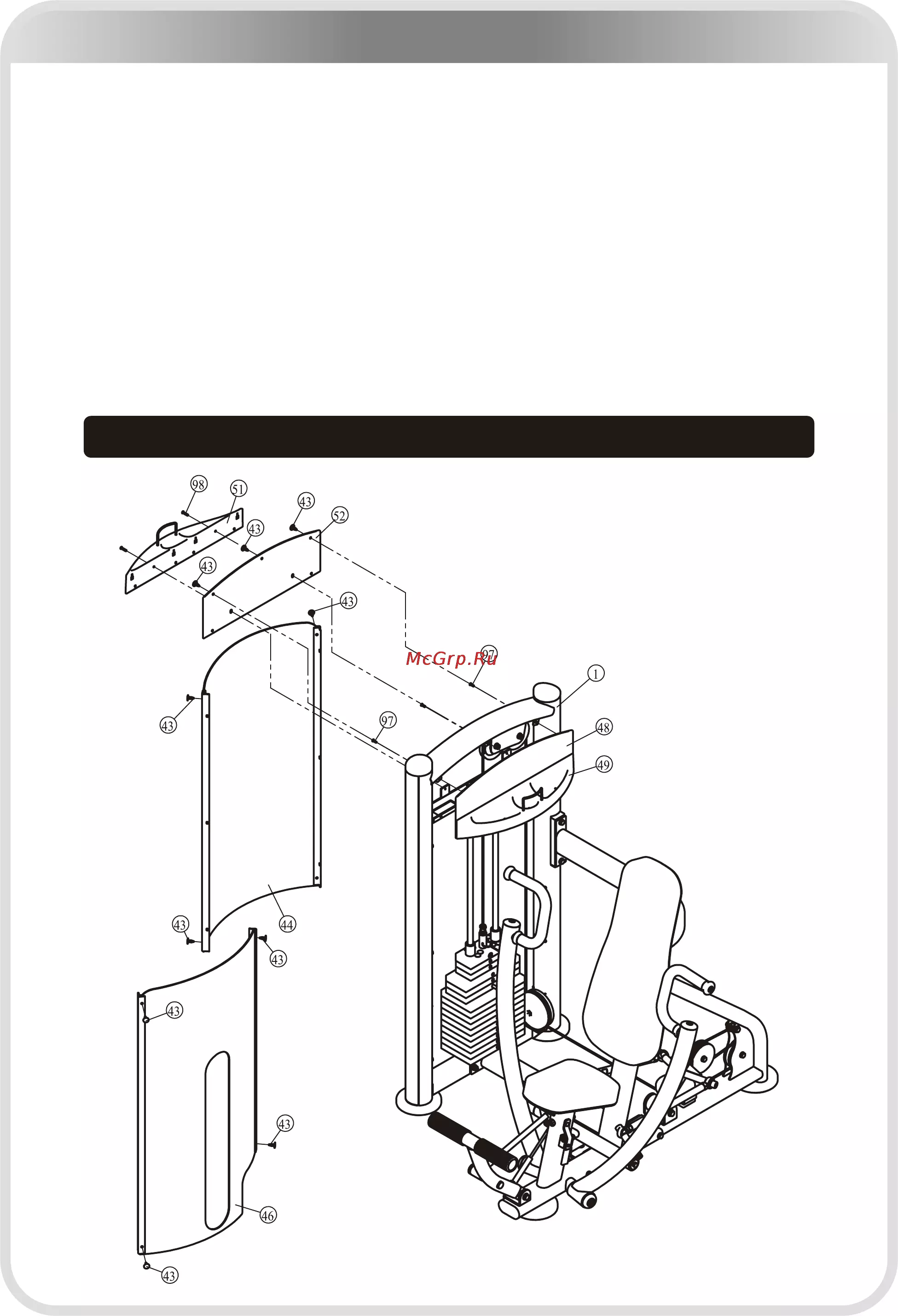

STEP 8

1. Attach one Front Shroud (#46) and one Rear Shroud (#44) to the Weight

Stack Frame (#1) using:

eight Φ8*Φ20*23 Buttons (#43)

2. Attach the Top Front Shroud & The Front Support (#48, #49) to the Weight

Stack Frame (#1) using:

three M5*16 Flat Philips Screws (#97)

3. Attach the Top Rear Shroud-A (#52) and the Rear Support (#51) to the Weight

Stack Frame (#1) using:

three Φ8*Φ20*23 Buttons (#43) two M5*25 Flat Philips Screws (#98)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

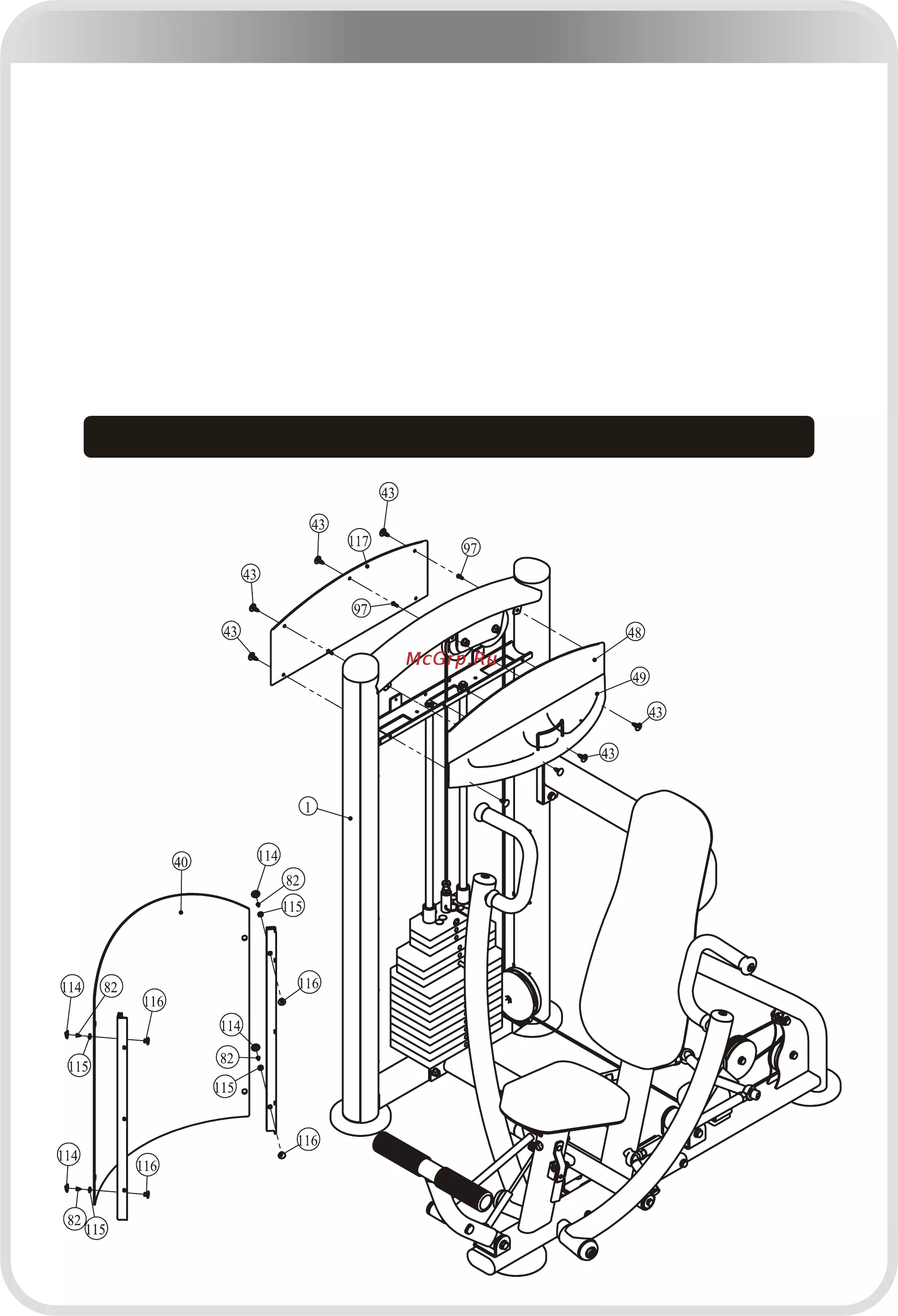

Here is the assembly instruction for Long Shroud !
