─ 10 ─
Assembly
STEP 1

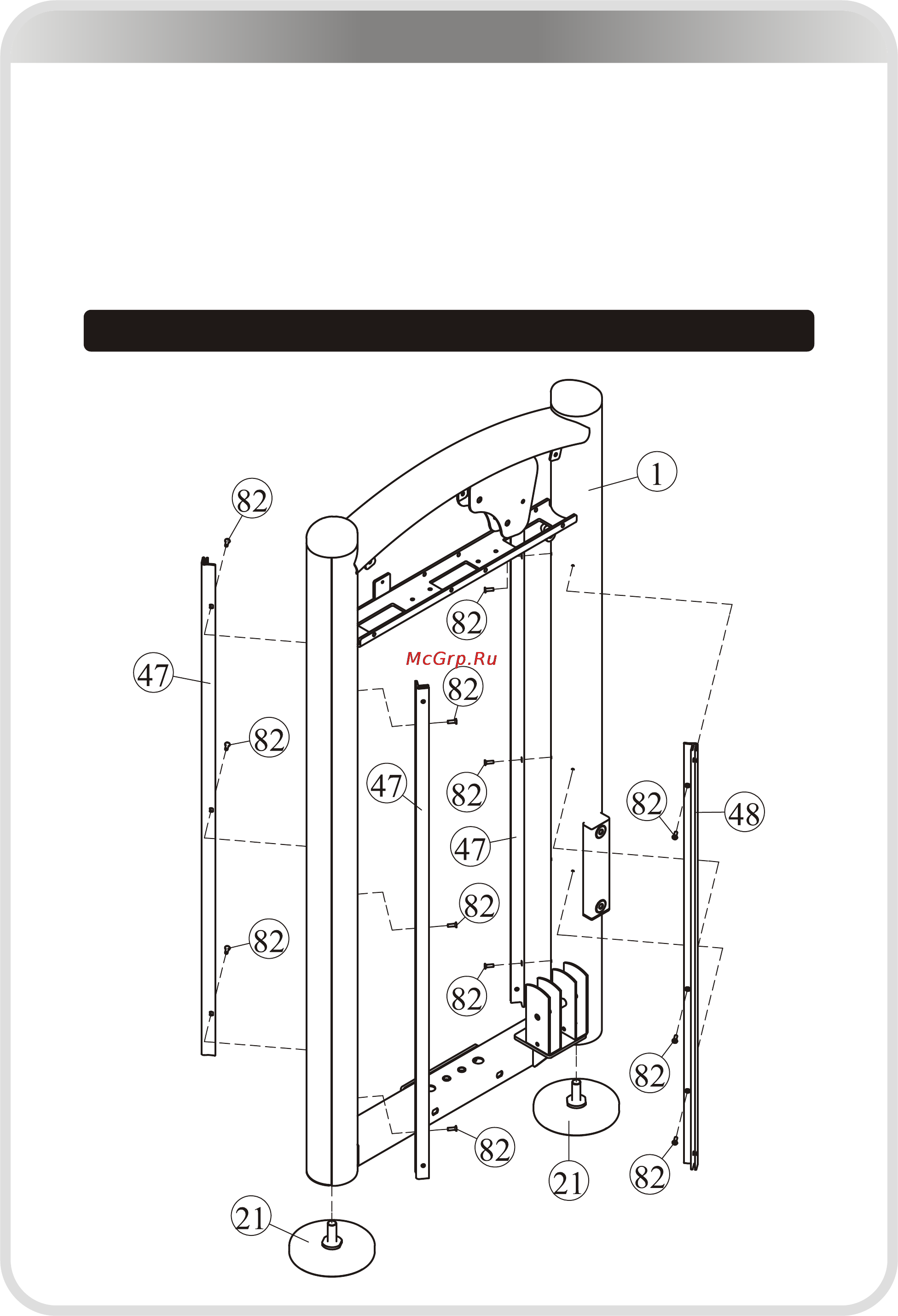

1. Attach two Adjustable Foot Plate (#21) to the Weight Stack Frame (#1).
2. Attach three Shroud Retainer Plate (#47) & one Right Shroud Retainer Plate
(#48) to the Weight Stack Frame (#1) using:
twelve M5*16 Flat Philips Screw (#82)
Note: Wrench Tighten Screws.

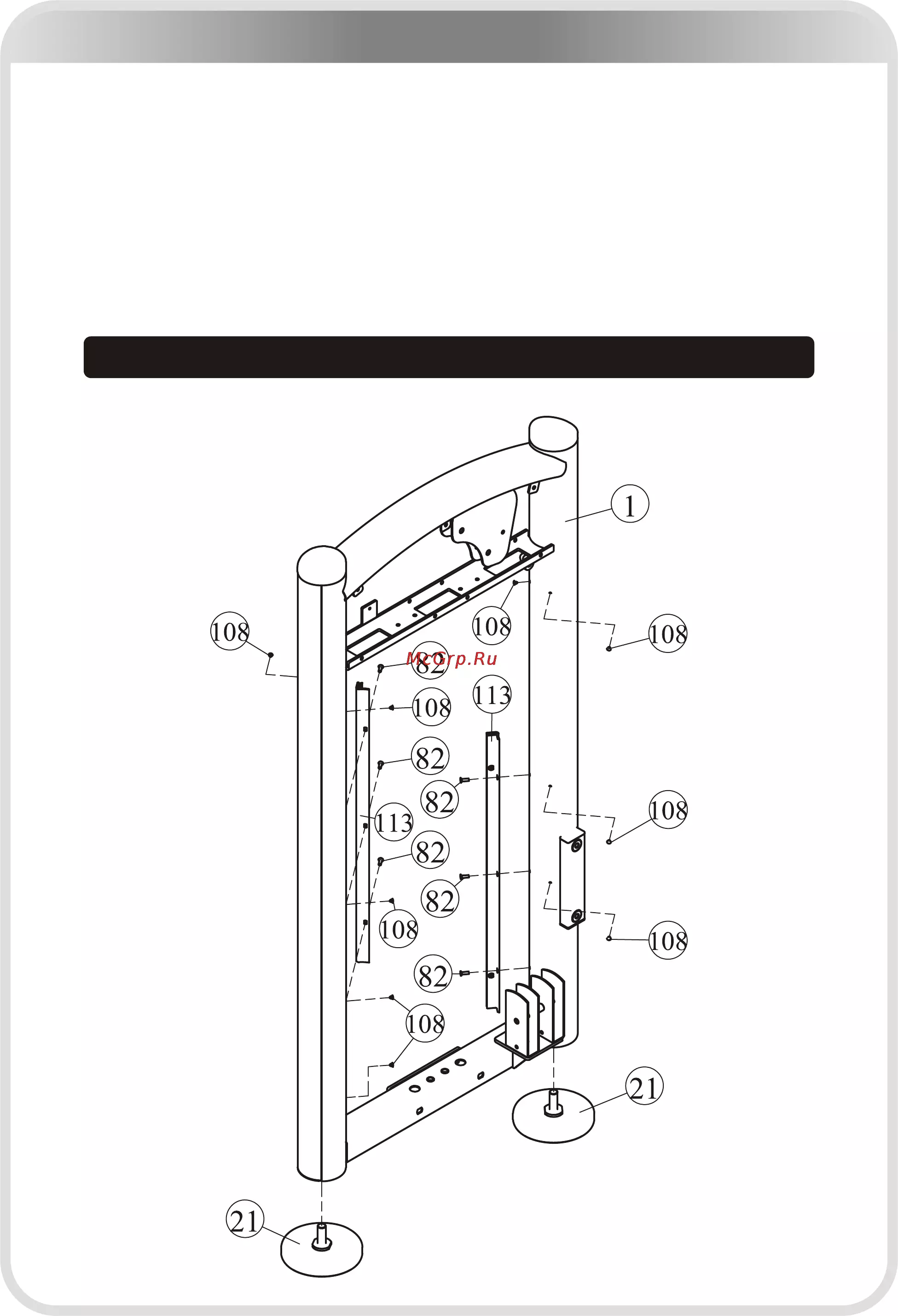

Here is the assembly instruction for Long Shroud !
