─ 18 ─

AssemblyAssembly

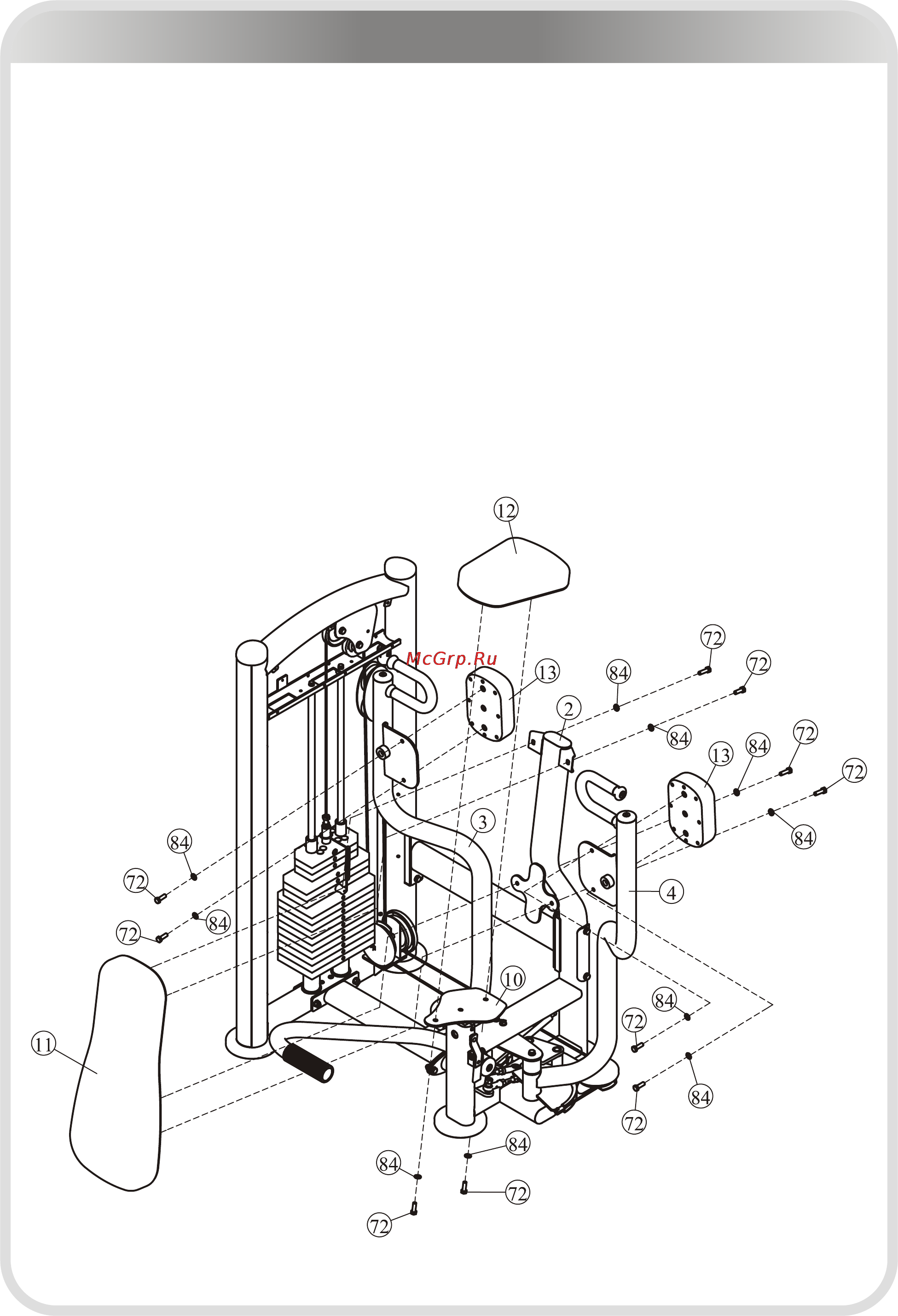

STEP 7

1. Attach the Seat Pad (#12) to the Seat Pad Support (#10) using:

two M10*30 HHB (#72) two Φ11*Φ20*2 Flat Washer (#84)

2. Attach the Back Pad (#11) to the Main Frame (#2) using:

four M10*30 HHB (#72) four Φ11*Φ20*2 Flat Washer (#84)

3. Attach the Arm Pad (#13) to the Right Lat Arm (#3) using:

two M10*30 HHB (#72) two Φ11*Φ20*2 Flat Washer (#84)

4. Attach the Arm Pad (#13) to the Left Lat Arm (#4) using:

two M10*30 HHB (#72) two Φ11*Φ20*2 Flat Washer (#84)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
