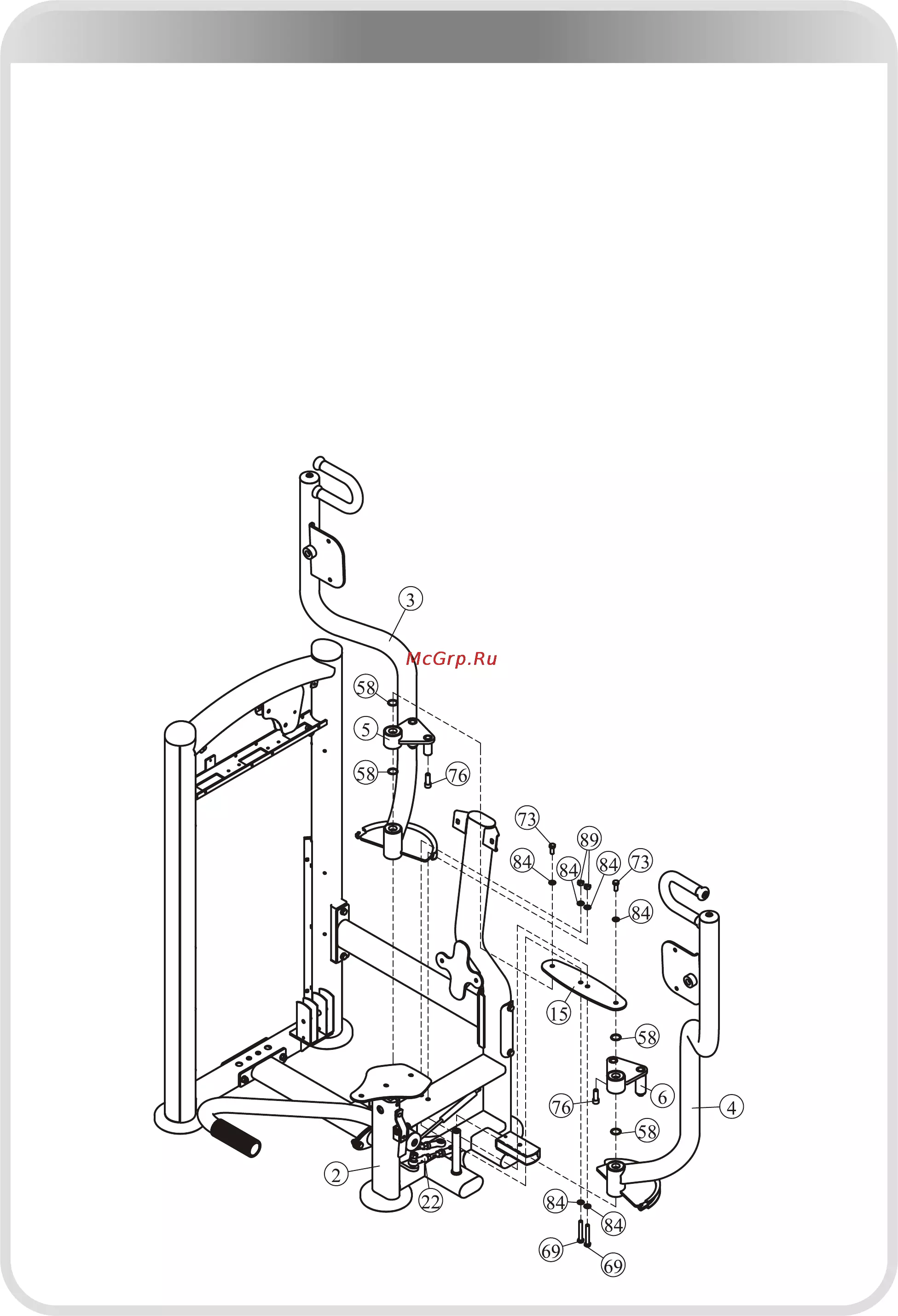

AssemblyAssembly

STEP 5

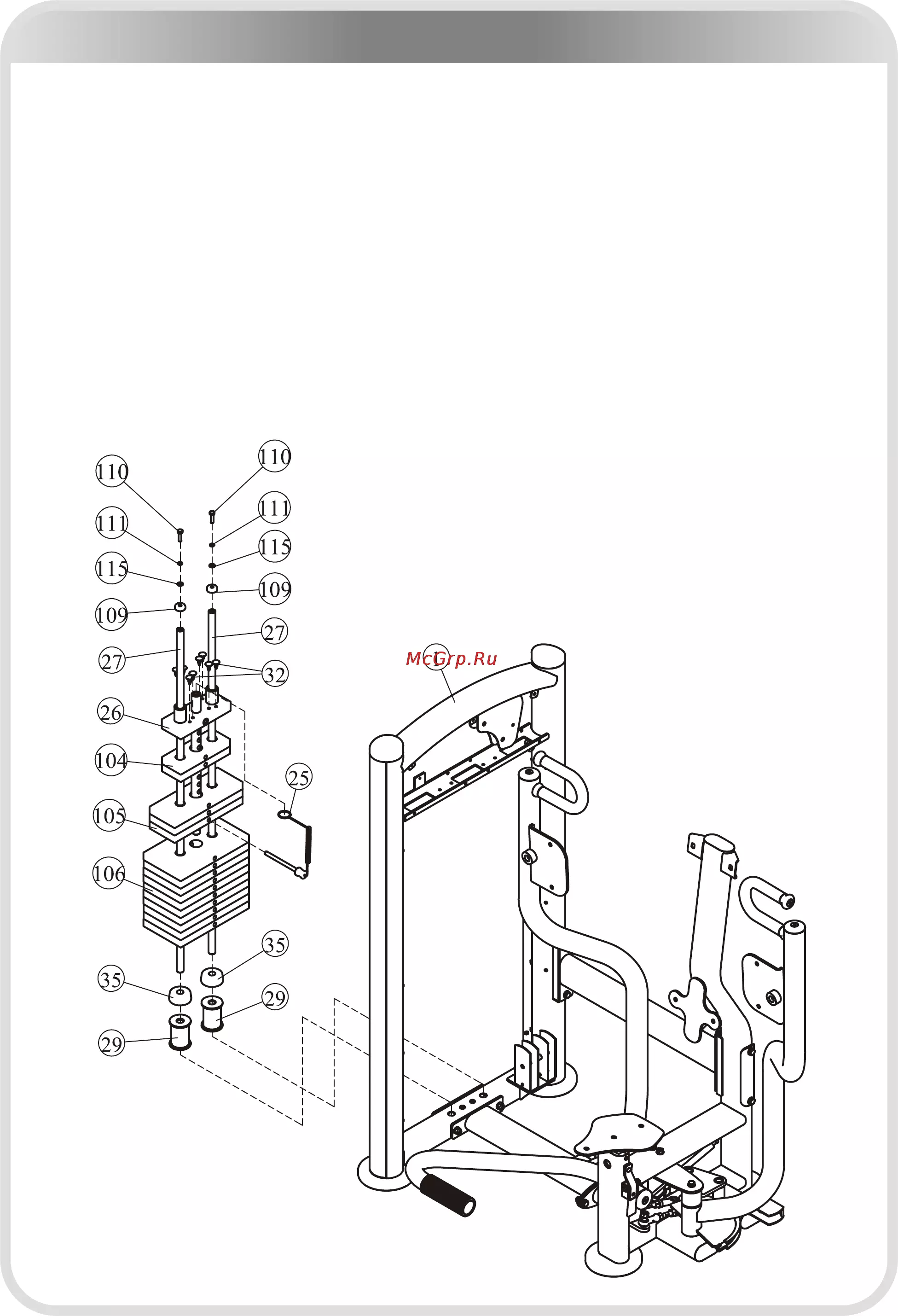

1. Attach:

two Guide Rod (#27) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#35)

two Weight Stack Space (#29) ten Weight Plate 15LBS (#106)

three Weight Plate 10LBS (#105) two Weight Plate 5LBS (#104)

one Top Plate (#26)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#110) two Φ8 Spring Washers (#111)

two Φ9*Φ22*1.6 Flat Washer (#115) two Φ29*Φ19*10 Rubber Plug (#109)

2. Attach the Selector Pin W/Coil (#25) & eight Button (#32) to the Top Plate (#26).

Note: Wrench Tighten Βolts and Nylon Lock nuts.
