AssemblyAssembly

STEP 8

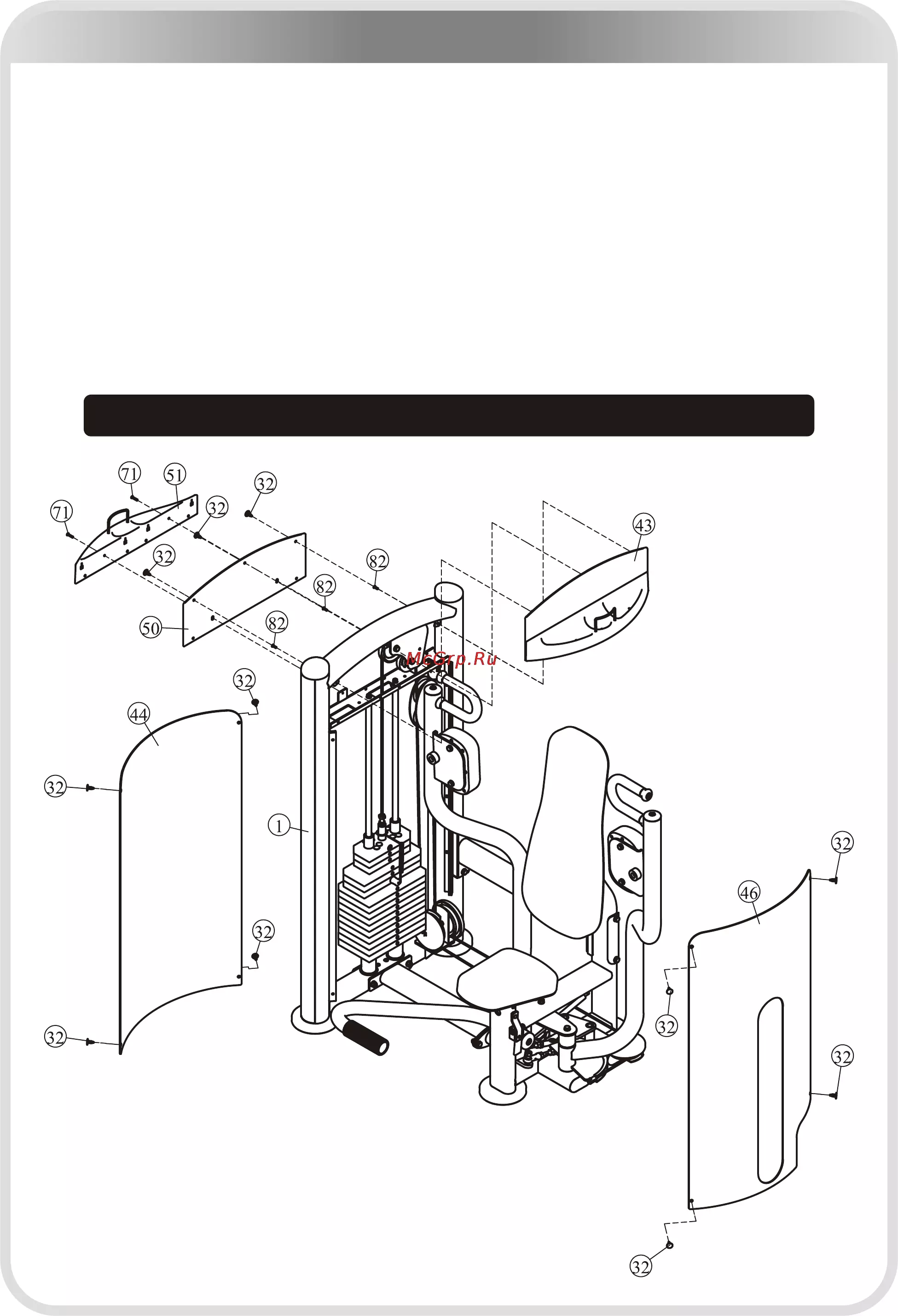

1. Attach the Front Shroud (#46) & Rear Shroud (#44) to the Weight Stack

Frame (#1) using:

eight Button (#32)

2. Attach the Top Front Shroud (#43) to the Weight Stack Frame (#1) using:

three M5*16 Flat Philips Screw (#82)

3. Attach the Top Rear Shroud A (#50) & the Rear Support (#51) to the Weight

Stack Frame (#1) using:

three Button (#32) two M5*25 Flat Philips Screw (#71)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
