─ 20 ─

AssemblyAssembly

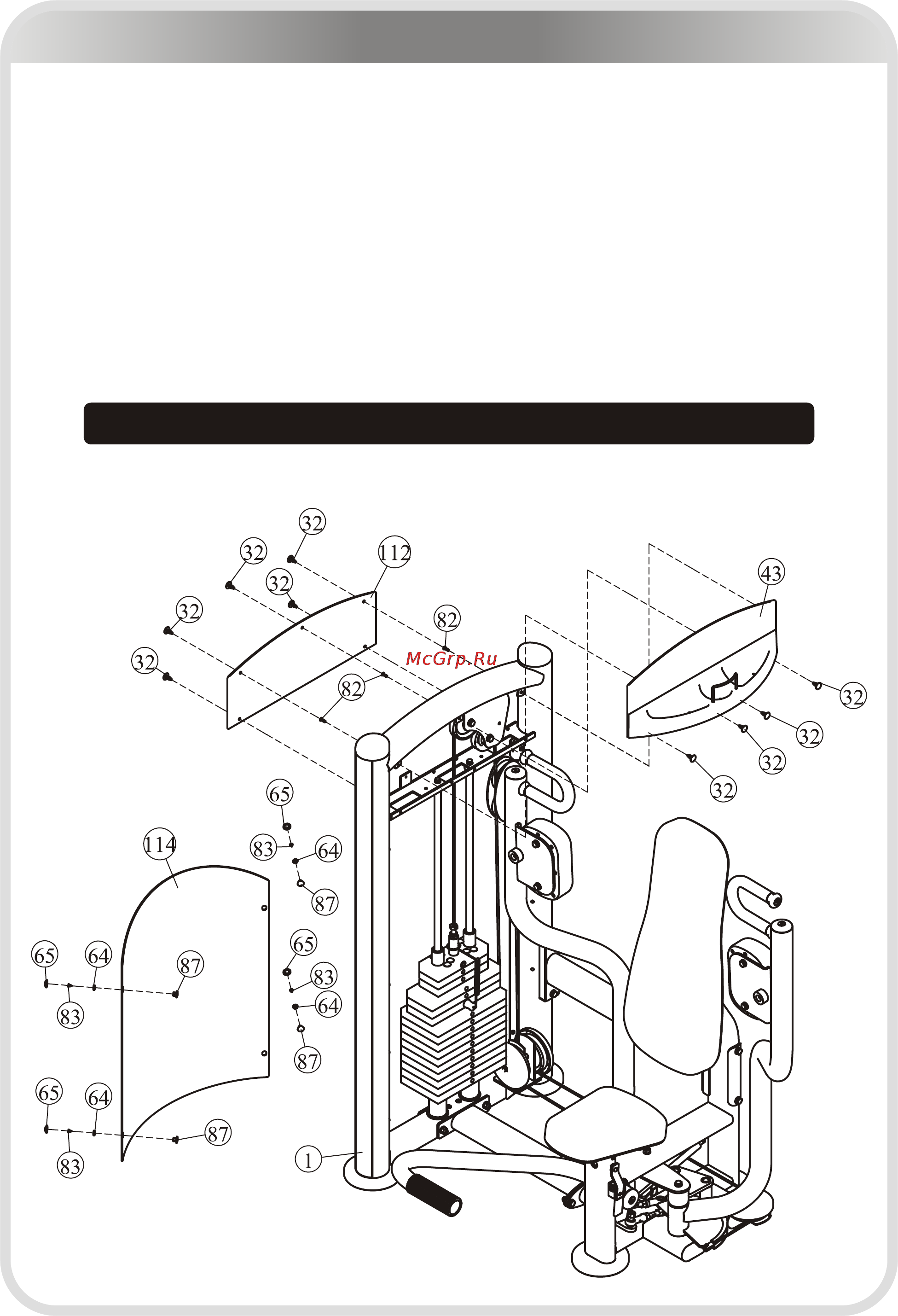

STEP 8

1. Attach the Shroud (#114) to the Weight Stack Frame (#1) using:

four Connect Button (#87) four Plastic Washer (#64)

four ST4.2*10 Self-Tapping Screw (#83) four Plastic Cover (#65)

2. Attach the Top Front Shroud (#43) to the Weight Stack Frame (#1) using:

four Button (#32) three M5*16 Flat Philips Screw (#82)

3. Attach the Top Rear Shroud (#112) to the Weight Stack Frame (#1) using:

five Button (#32)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Shor t Shroud !
