─ 14 ─

AssemblyAssembly

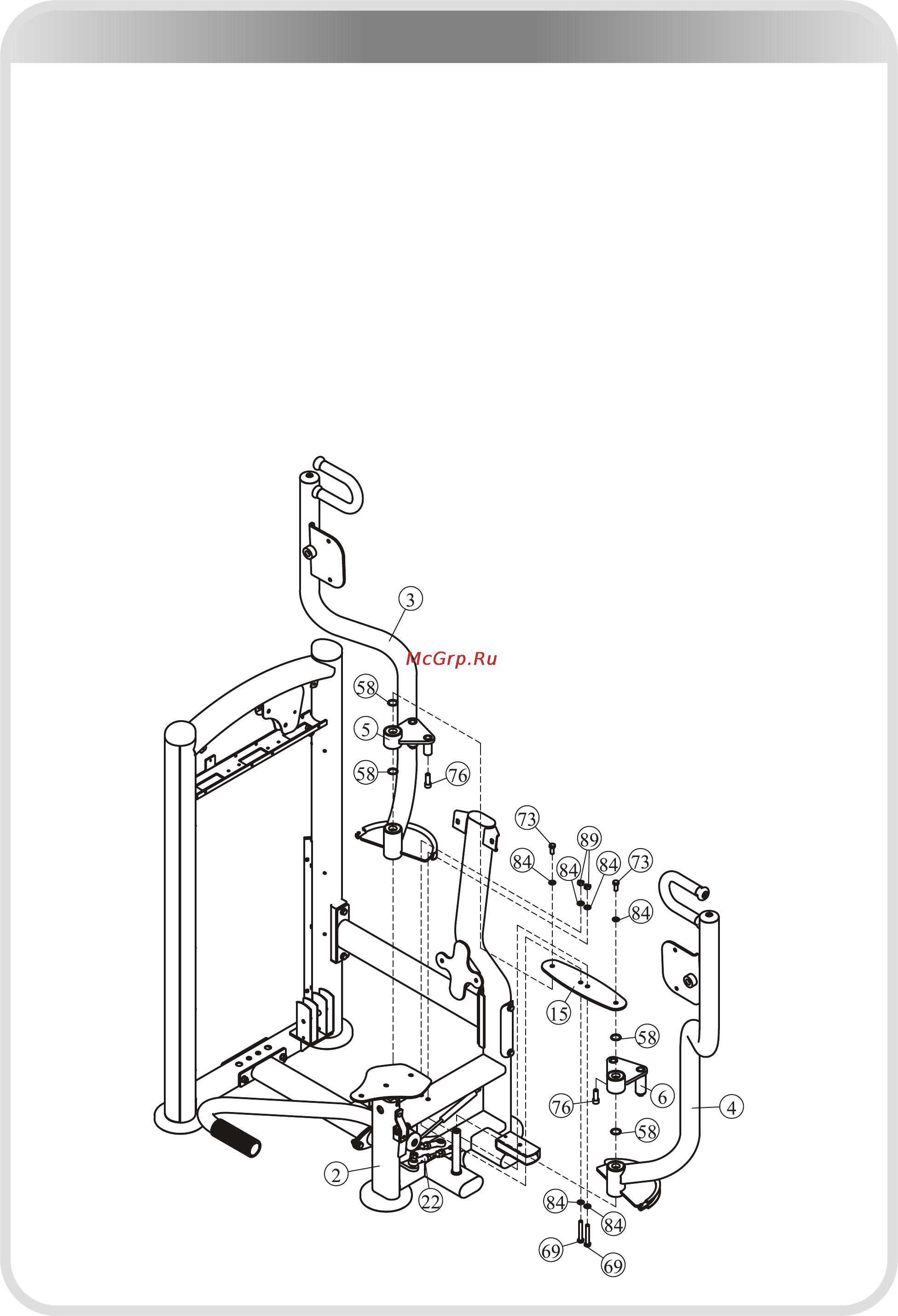

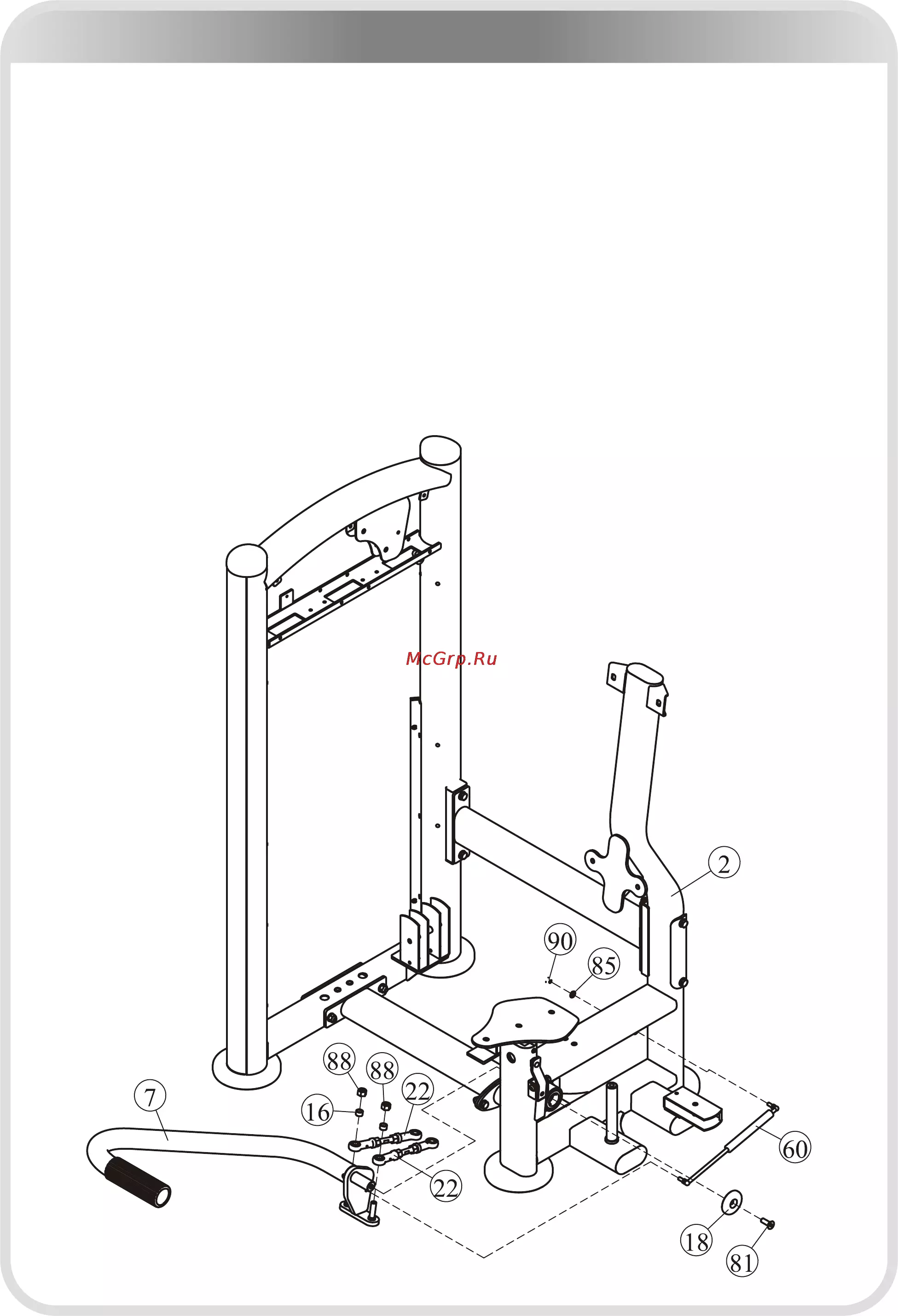

STEP 4

1. Attach the Right Lat Arm (#3) & Right Bracket (#5) to the Main Frame (#2) using:

two Φ31*Φ25.5*1.5 Big Washers (#58)

2. Attach the Left Lat Arm (#4) & Left Bracket (#6) to the Main Frame (#2) using:

two Φ31*Φ25.5*1.5 Big Washers (#58)

3. Attach the Oval Flat (#15) to the Main Frame (#2) using:

two M10*75 HHB (#69) two M10*25 HHB (#73)

six Φ11*Φ20*2 Flat Washer (#84) two M10 Nylon Lock Nut (#89)

4. Attach the Right Bracket (#5) to the Rod Assembly (#22) using:

one M12*35 SHCS (#76)

5. Attach the Left Bracket (#6) to the Rod Assembly (#22) using:

one M12*35 SHCS (#76)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
