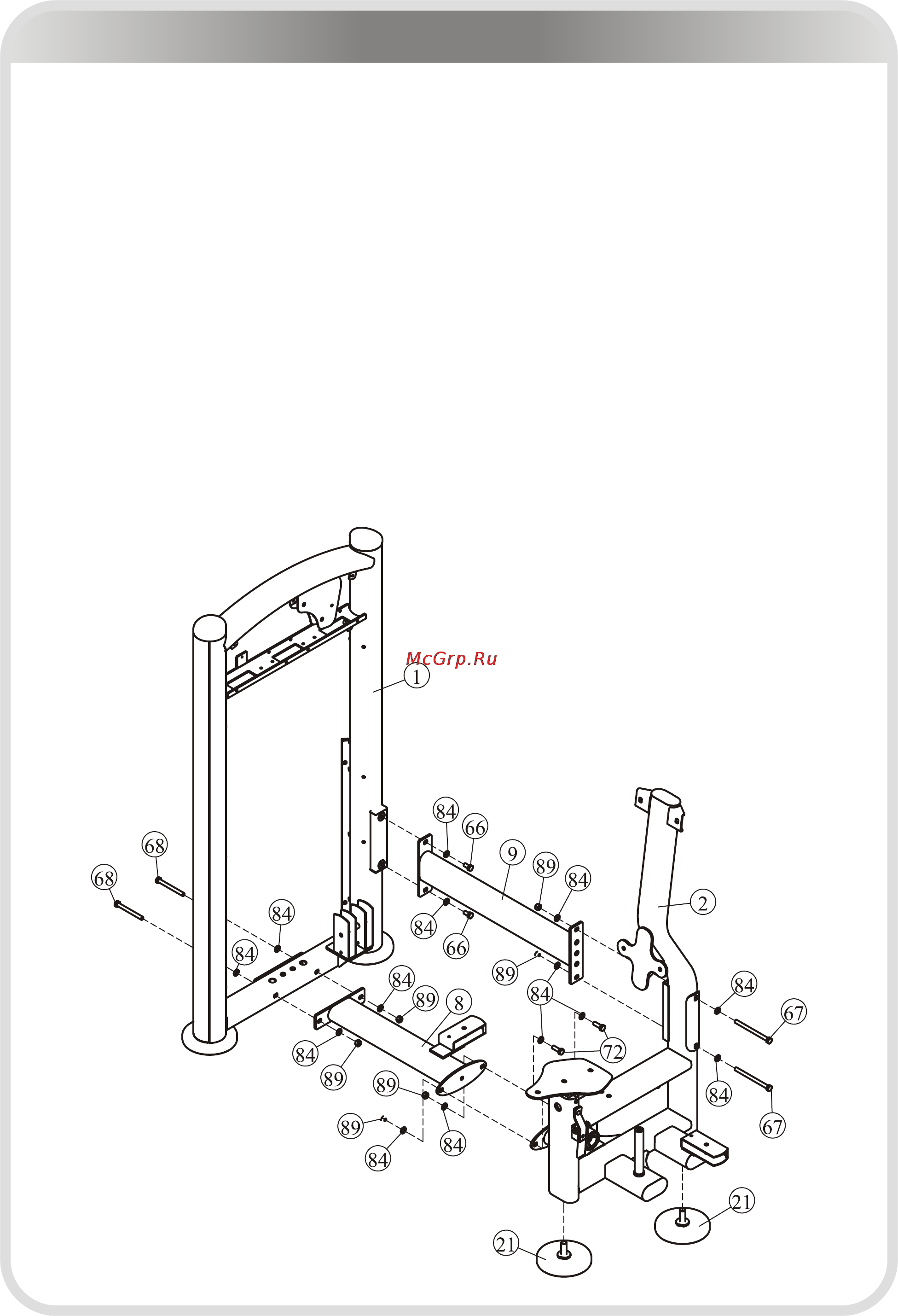

Assembly

STEP 2

1. Attach two Adjustable Foot Plate (#21) to the Main Frame (#2).

2. Attach the Bottom Cross Brace (#8) to the Weight Stack Frame (#1) using:

two M10*100 HHB (#68) four Φ11*Φ20*2 Flat Washer (#84)

two M10 Nylon Lock Nut (#89)

3. Attach the Bottom Cross Brace (#8) to the Main Frame (#2) using:

two M10*30 HHB (#72) four Φ11*Φ20*2 Flat Washer (#84)

two M10 Nylon Lock Nut (#89)

4. Attach the Rear Cross Brace (#9) to the Weight Stack Frame (#1) using:

two M10*20 HHB (#66) two Φ11*Φ20*2 Flat Washer (#84)

5. Attach the Rear Cross Brace (#9) to the Main Frame (#2) using:

two M10*135 HHB (#67) four Φ11*Φ20*2 Flat Washer (#84)

two M10 Nylon Lock Nut(#89)

Note: Hand tighten Βolts and Nylon Lock nuts.
