Assembly
STEP 1

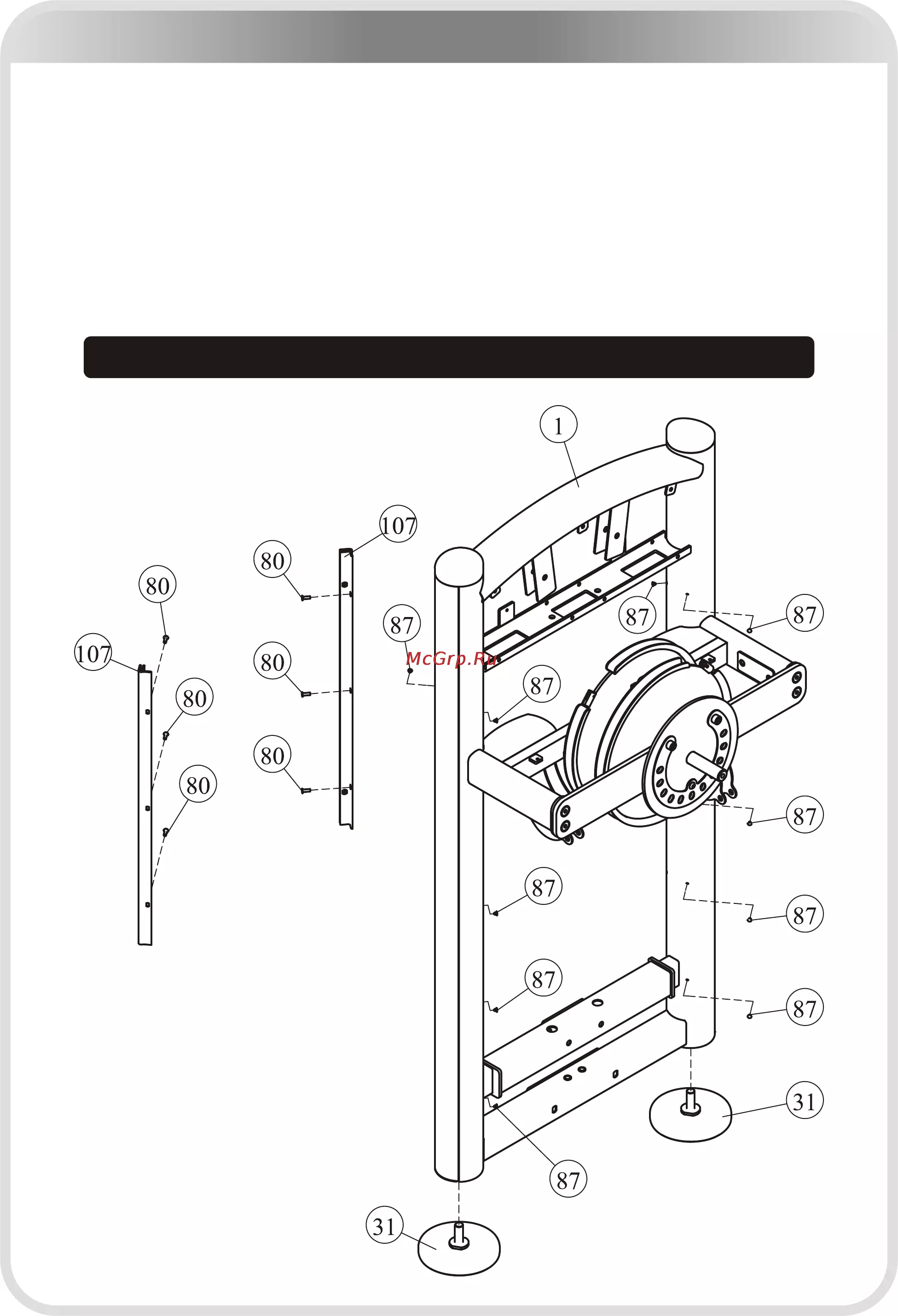

1. Attach two Adjustable Foot Plate (#31) to the Weight Stack Frame (#1).
2. Attach two Shroud Retainer Plate (#104) to the Weight Stack Frame (#1) using:
six M5*16 Flat Philips Screw (#80)
3. Attach eight Φ8.1*7 Button (#87) to the Weight Stack Frame (#1).
Note: Wrench Tighten Screws.
Here is the assembly instruction for Long Shroud !
