Assembly

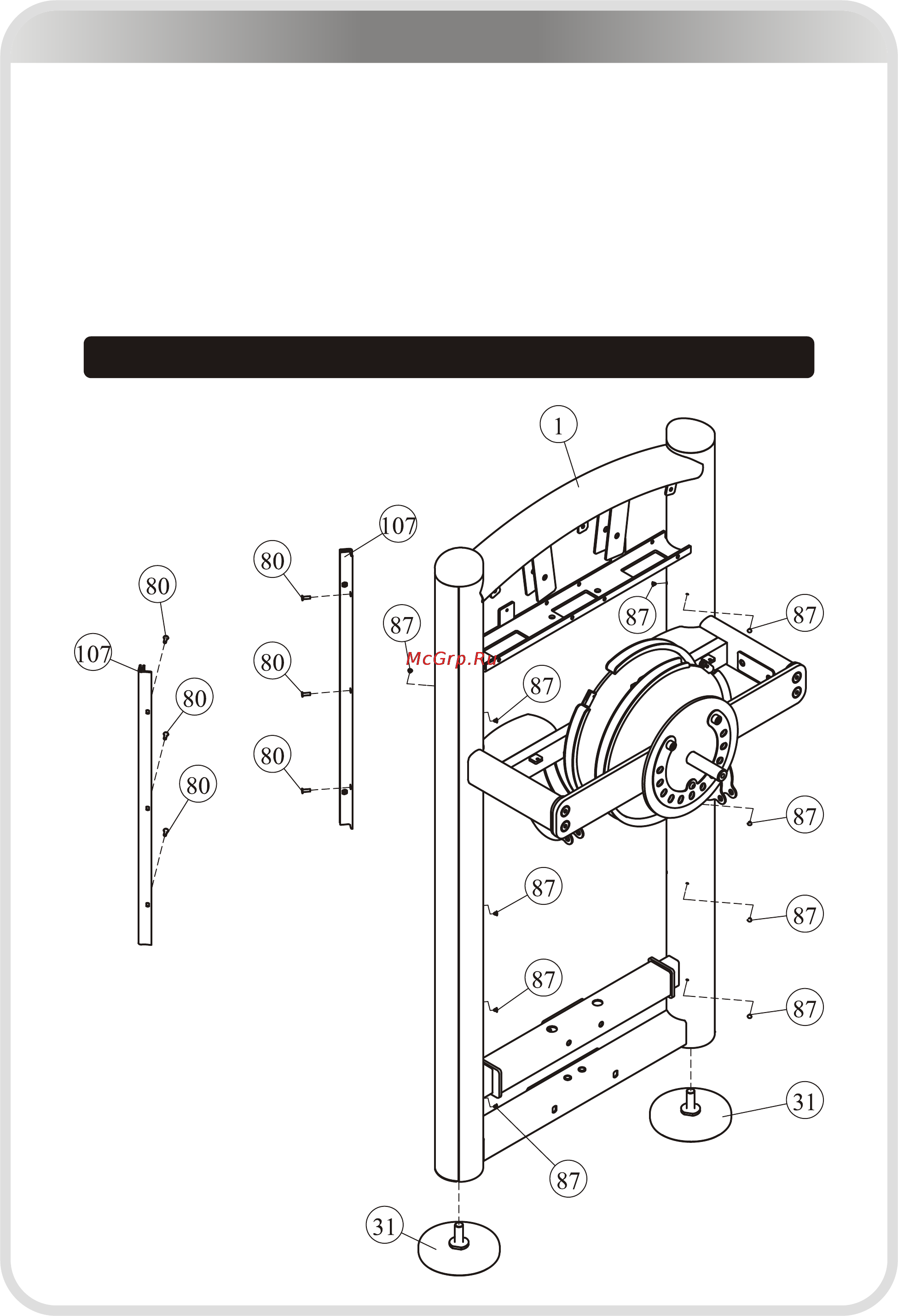

STEP 1
1. Attach two Adjustable Foot Plate (#31) to the Weight Stack Frame (#1).
2. Attach two Short Shroud Retainer Plate (#107) to the Weight Stack Frame
(#1) using:
six M5*16 Flat Philips Screw (#80)
3. Attach ten Φ8.1*7 Button (#87) to the Weight Stack Frame (#1).
Note: Wrench Tighten Screws.
Here is the assembly instruction for Shor t Shroud !
