─ 22 ─

AssemblyAssembly

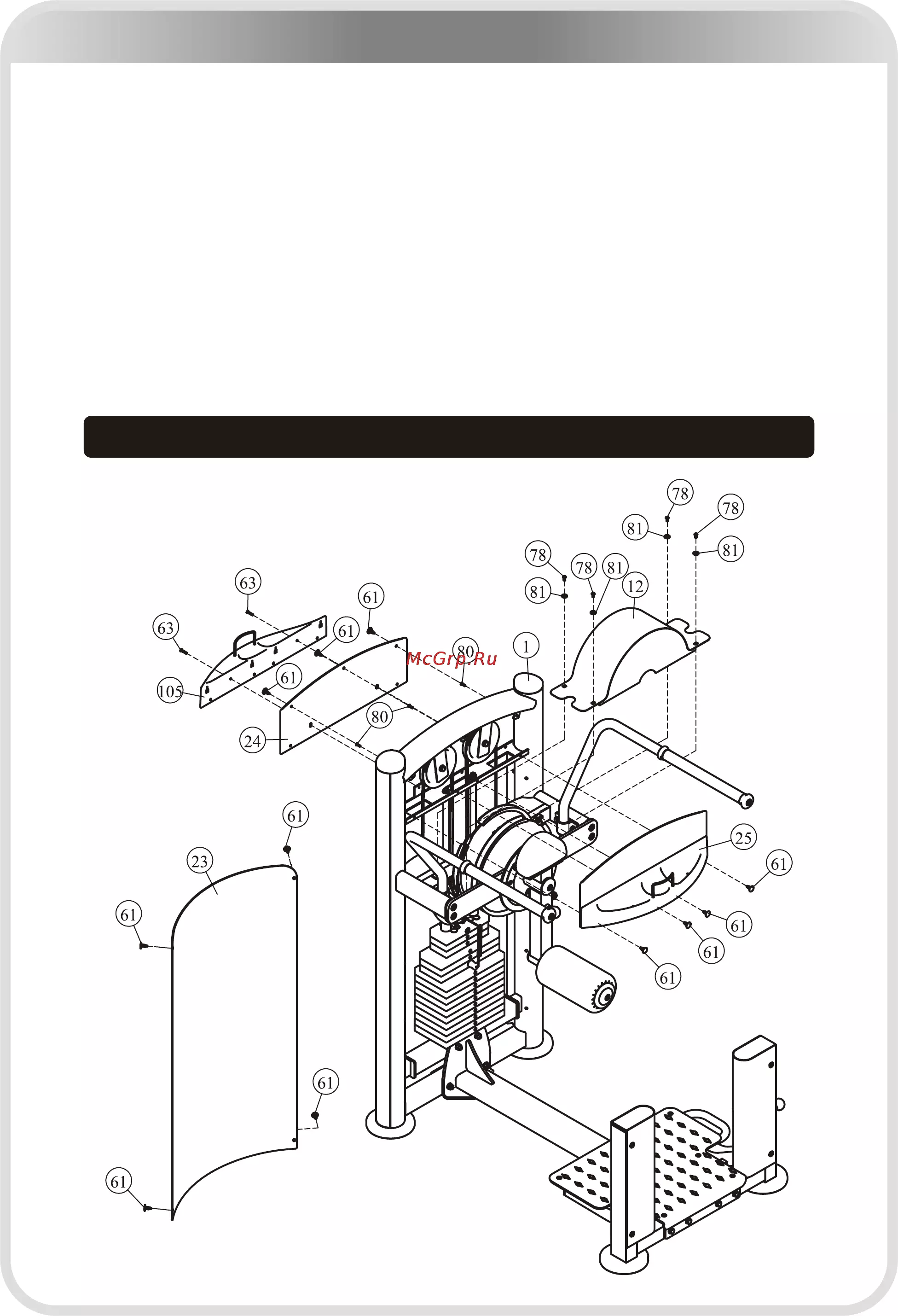

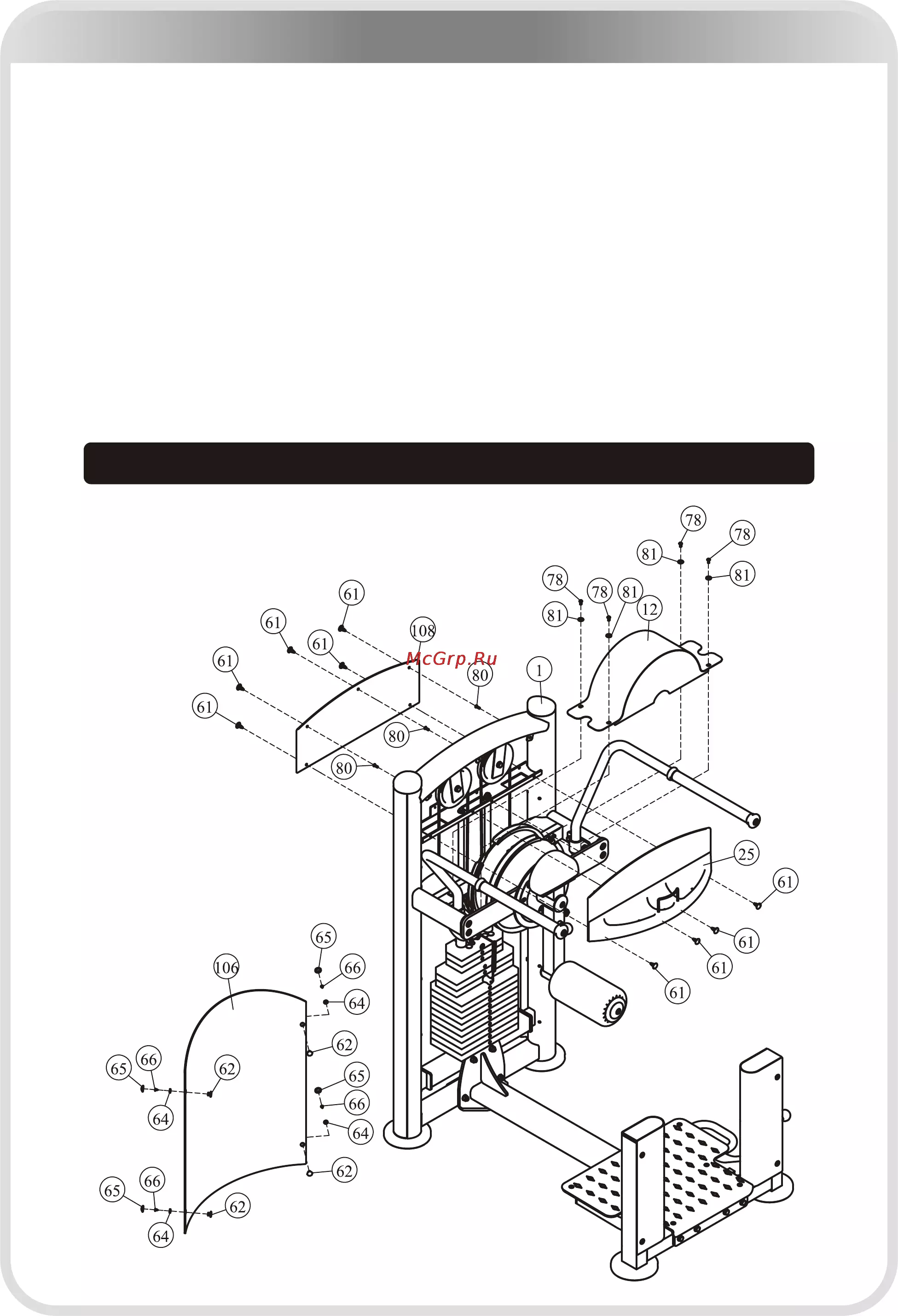

STEP 8

1. Attach the Shroud (#106) to the Weight Stack Frame (#1) using:

four Connect Button (#62) four Plastic Washer (#64)

four ST4.2*10 Self-Tapping Screw (#66) four Plastic Cover (#65)

2. Attach the Top Front Shroud (#25) to the Weight Stack Frame (#1) using:

four Button (#61) three M5*16 Flat Philips Screw (#80)

3. Attach the Top Rear Shroud (#108) to the Weight Stack Frame (#1) using:

five Button (#61)

4. Attach the Round Cover (#12) to the Weight Stack Frame (#1) using:

four M6*12 BHCS (#78) four Φ6.6*Φ18*1.6 Flat Washers (#81)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

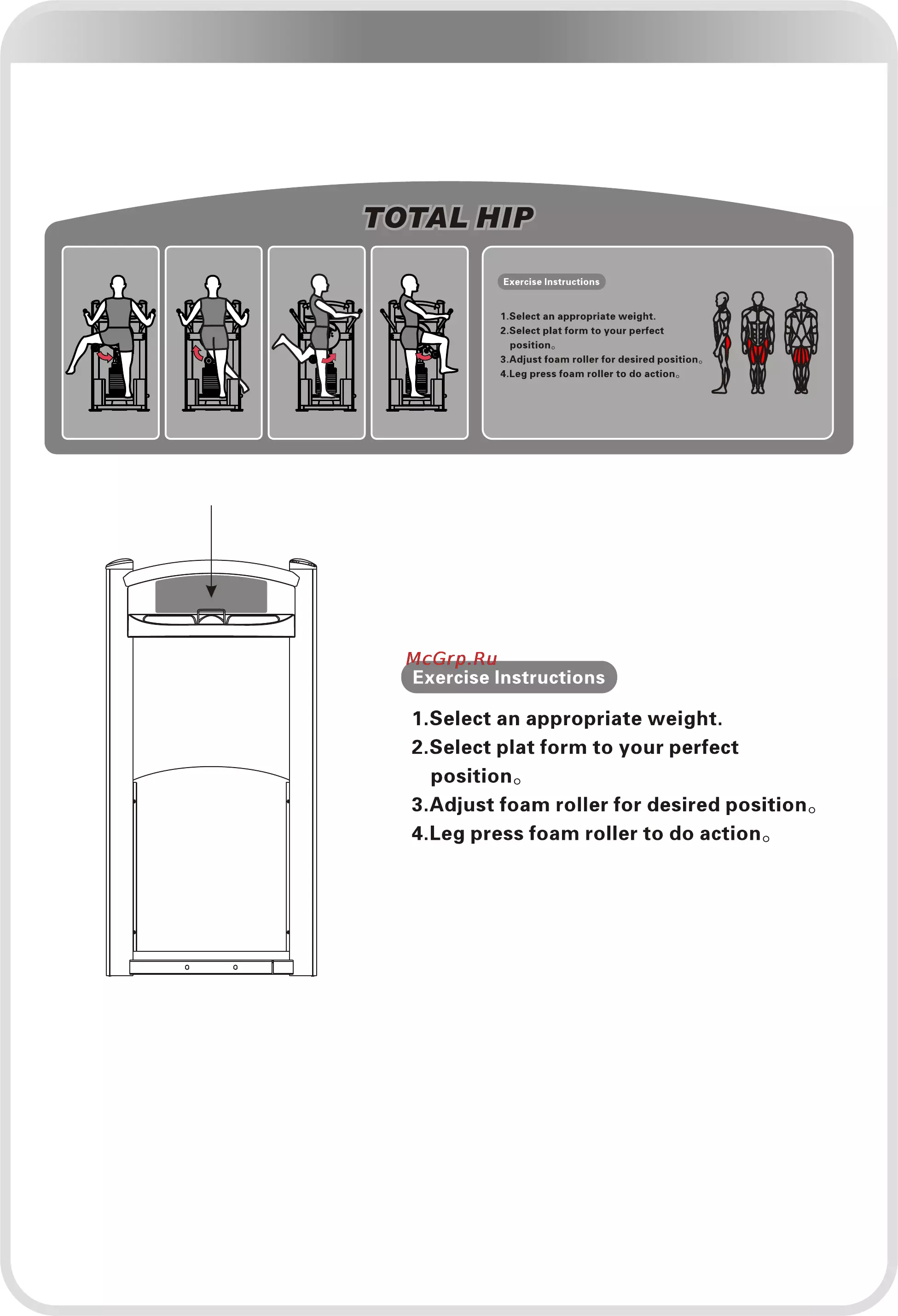

Here is the assembly instruction for Shor t Shroud !
