AssemblyAssembly

STEP 5

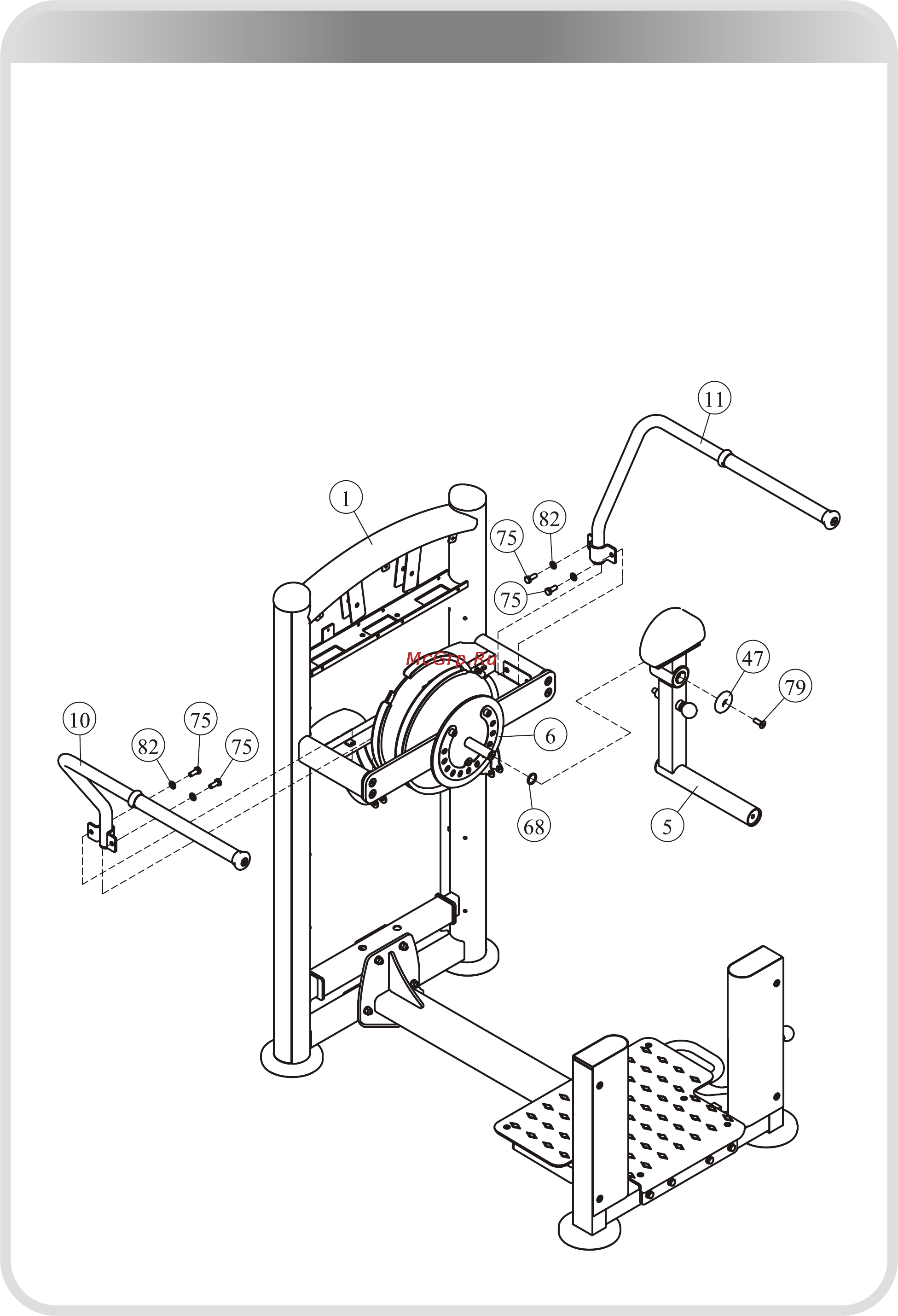

1. Attach the Left Armrest (#10) & the Right Armrest (#11) to the Weight Stack

Frame (#1) using:

four M10*25 HHB (#75) four Φ11*Φ20*2 Flat Washers (#82)

2. Attach the Sway Frame (#5) to the Weight Stack Frame (#1) using:

one Little Adjustable Ring (#68) one Aluminous Cap (#47)

one M10*30 Flat Head Cap Screw (#79)

Note: Hand Τighten Βolts and Nylon Lock nuts.
