─ 13 ─

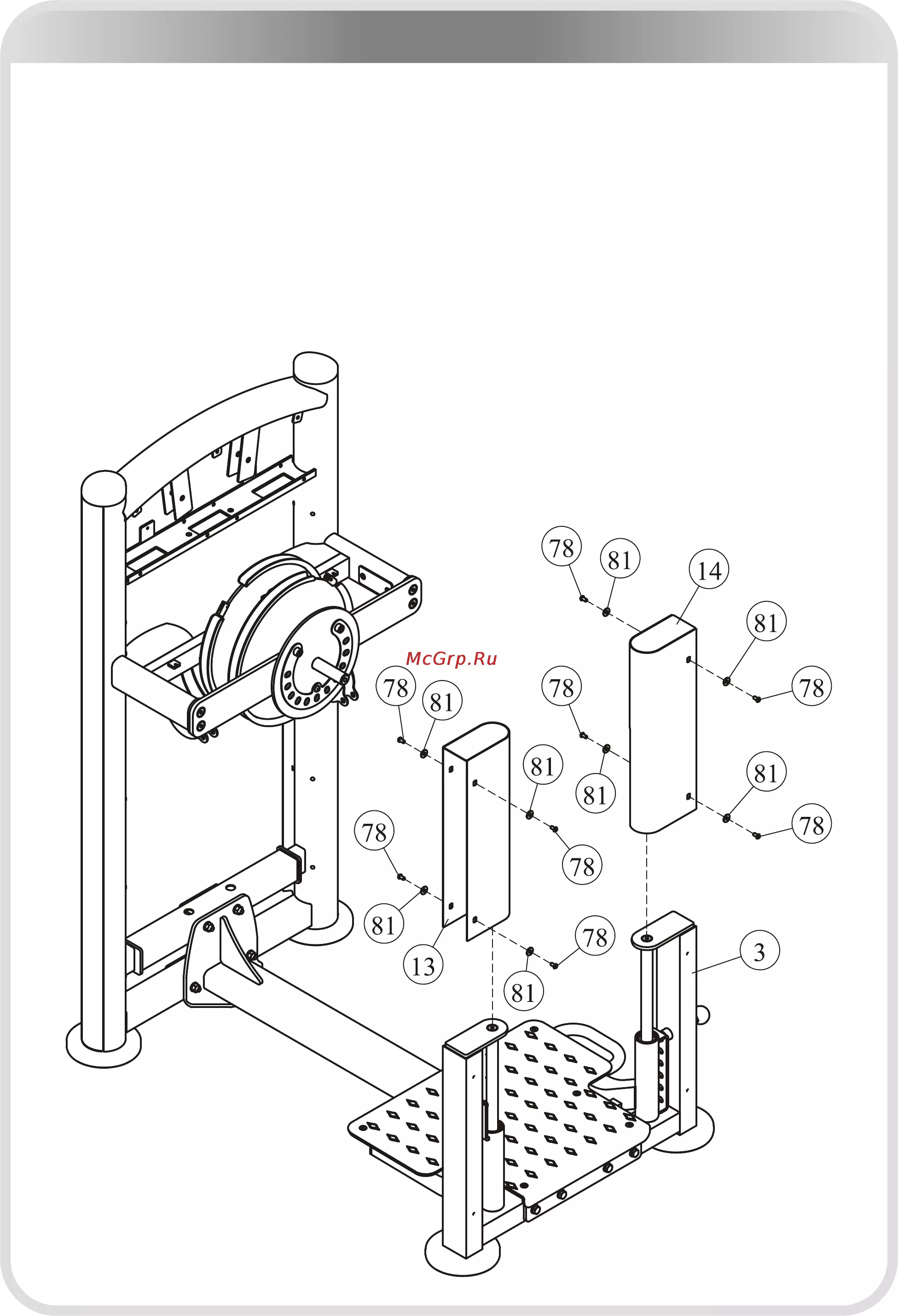

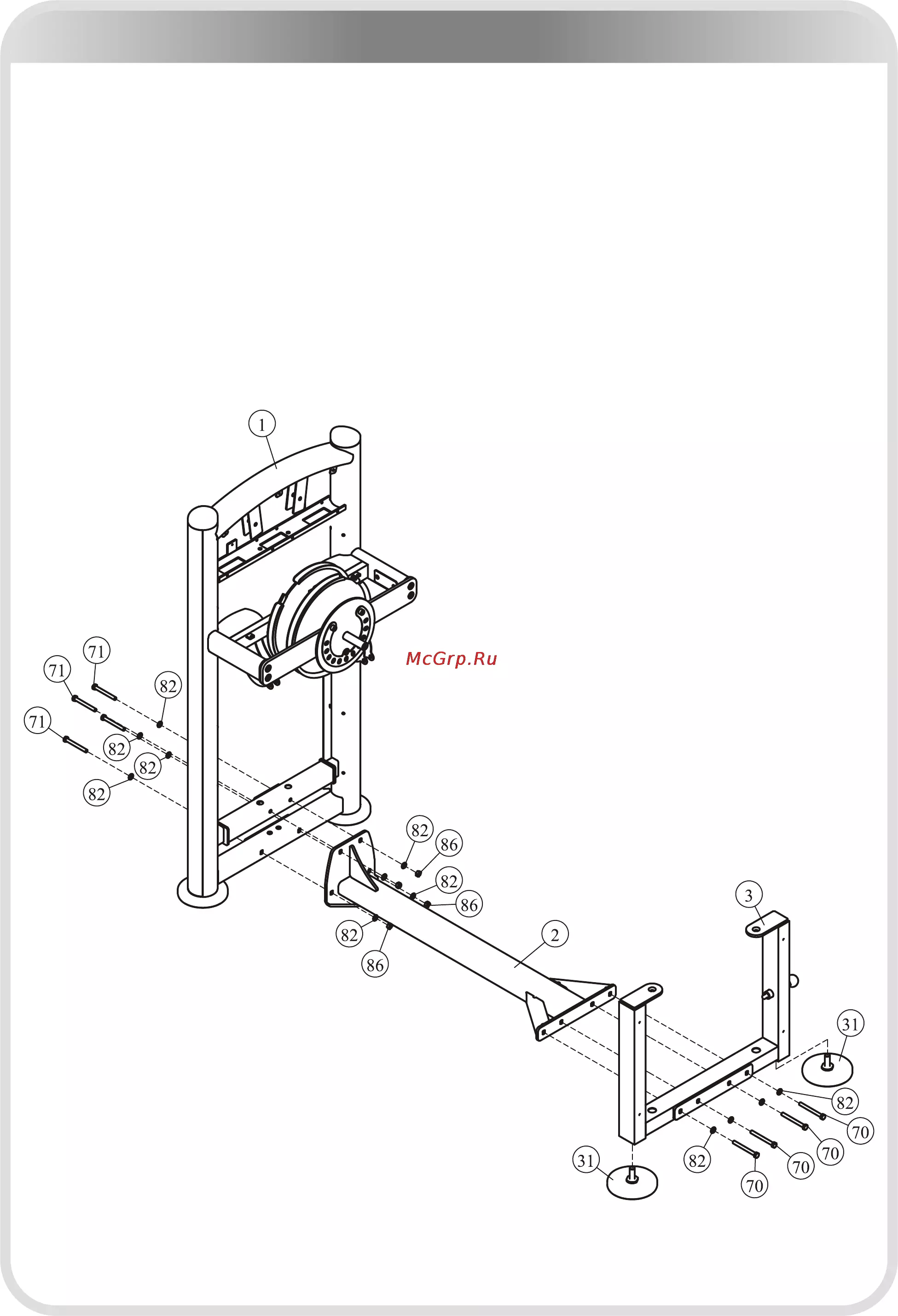

Assembly

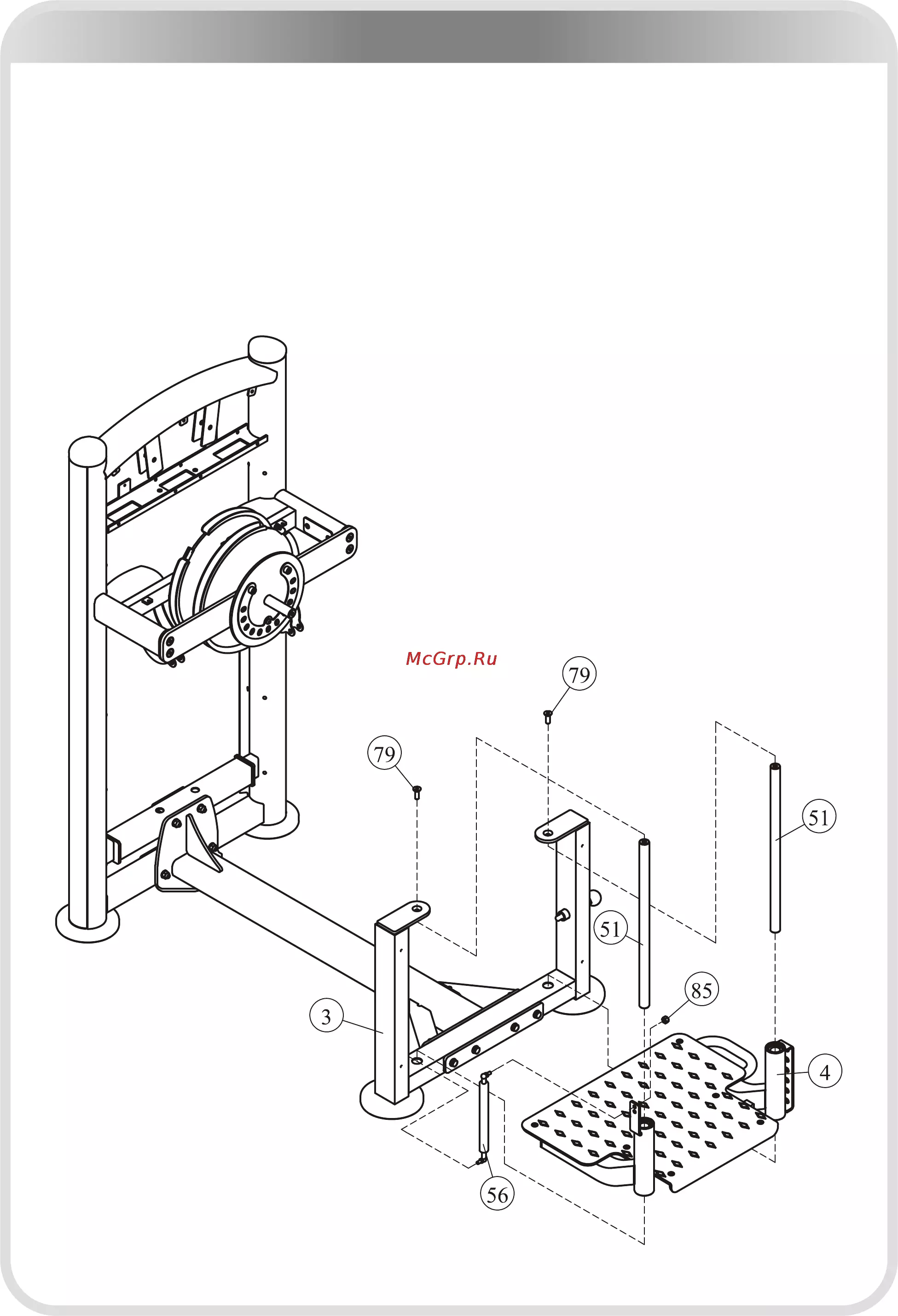

STEP 3
1. Attach the Footstool Brace (#4) to the Rear Frame (#3) using:
two M10*30 FHCS (#79) two Φ25*510 Short Leader (#51)
2. Attach the Gas Spring (#56) to the Rear Frame (#3) & the Footstool Brace
(#4) using:
one M8 Nylon Lock Nut(#85)
Note: Wrench Tighten Βolts and Nylon Lock nuts.
