Assembly
STEP 2

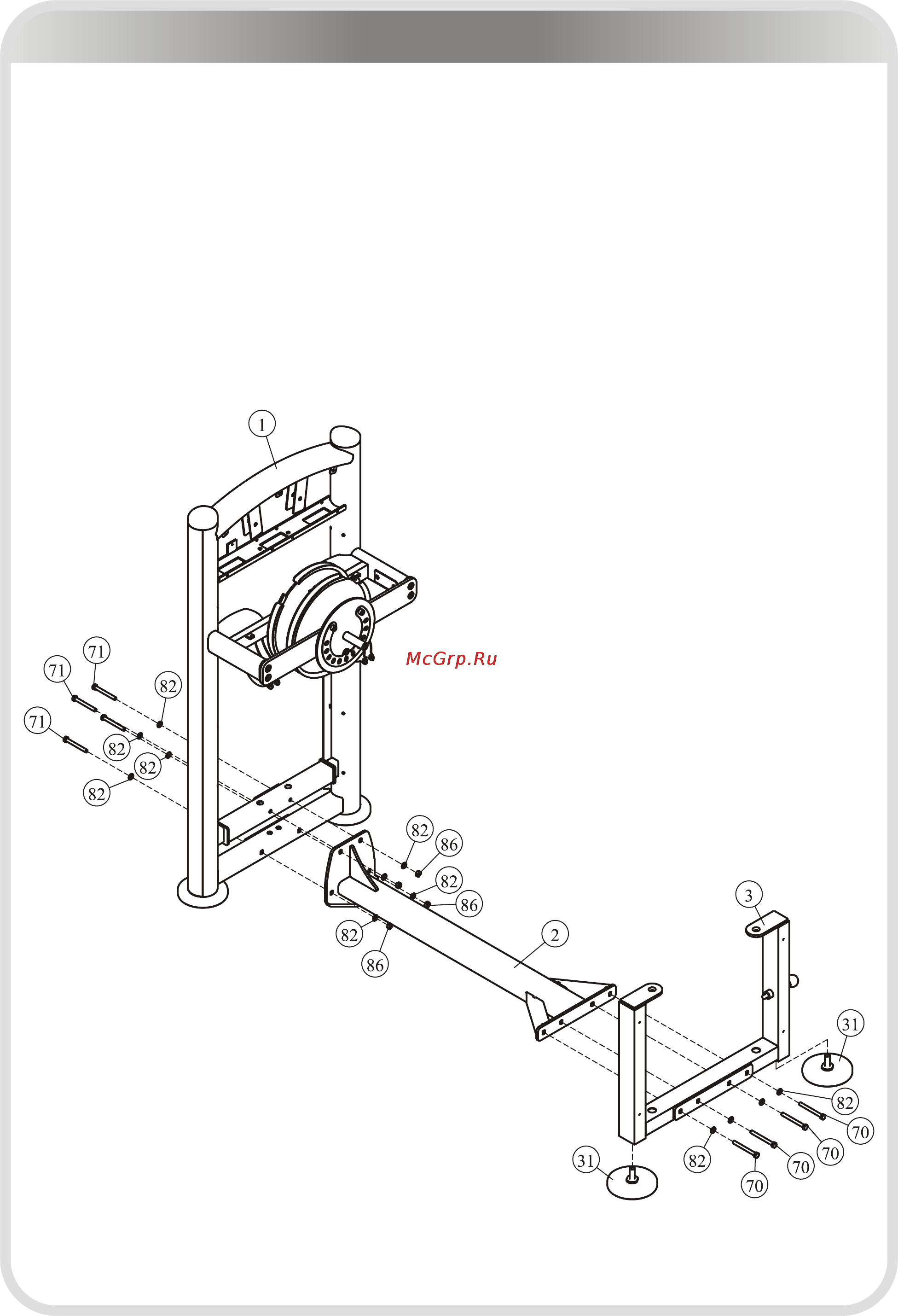

1. Attach two Adjustable Foot plate (#31) to the Rear Frame (#3).
2. Attach the Bottom Cross Brace (#2) & the Rear Frame (#3) to the Weight
Stack Frame (#1) using:
four M10*90 HHB (#71) four M10*100 HHB (#70)
twelve Φ11*Φ20*2 Flat Washers (#82) four M10 Nylon lock Nuts (#86)
Note: Hand Τighten Βolts and Nylon Lock nuts.
