─ 16 ─

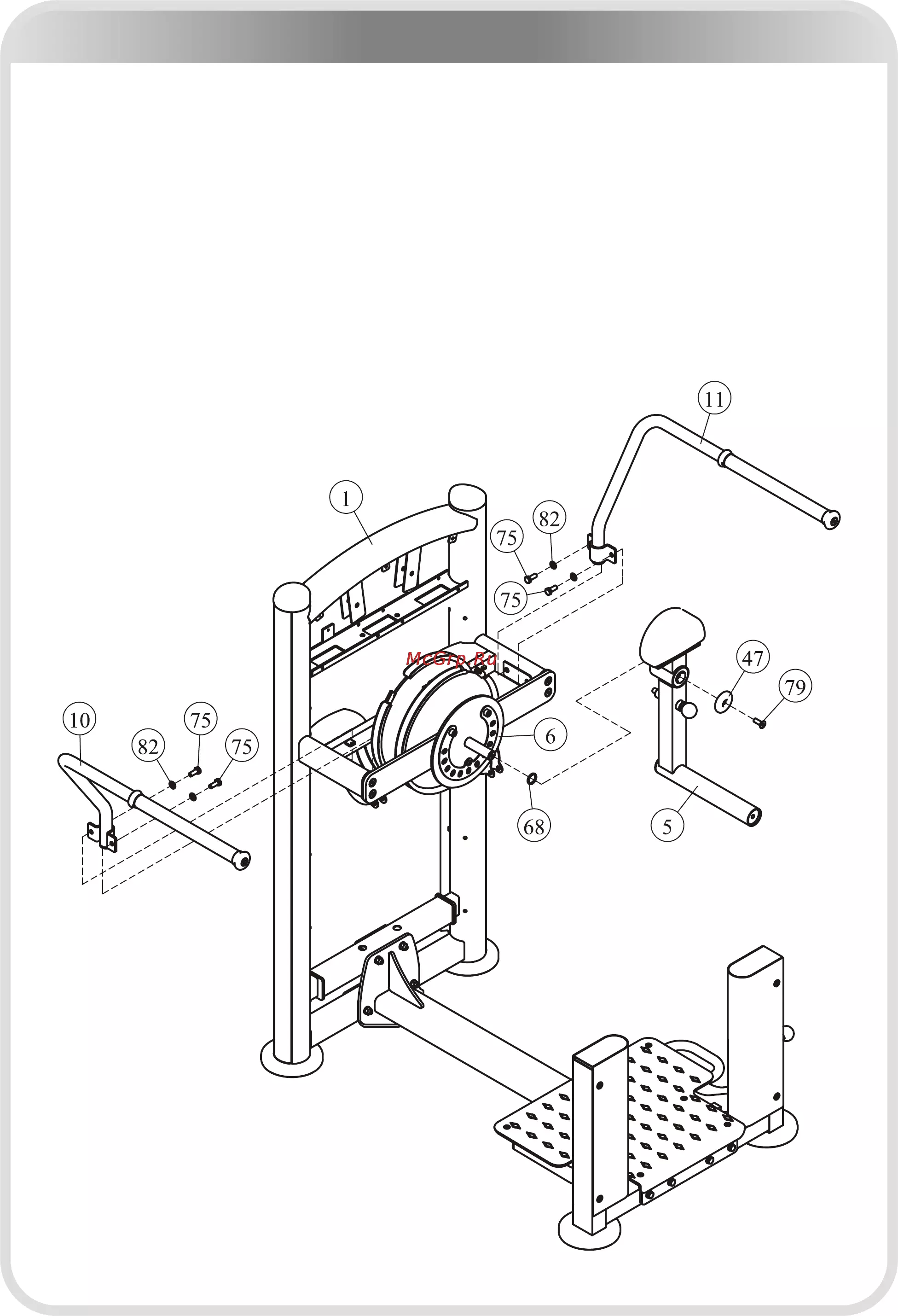

AssemblyAssembly

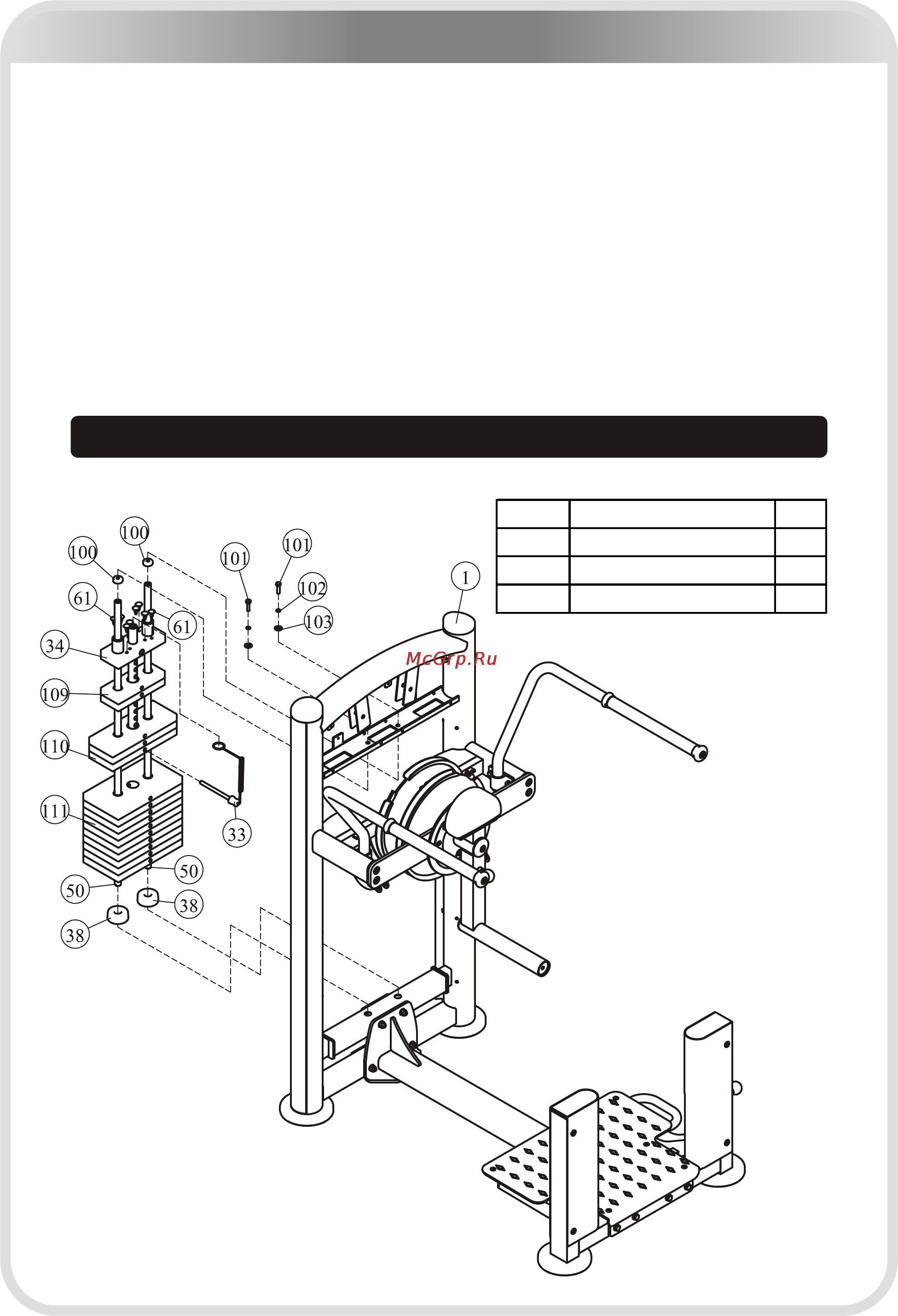

STEP 6

1. Attach:

two Guide Rod (#50) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#38)

ten Weight Plate 15LBS (#111) three Weight Plate 10LBS (#110)

two Weight Plate 5LBS (#109) one Top Plate (#34)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#101) two Φ8 Spring Washers (#102)

two Φ9*Φ22*1.6 Flat Washer (#103) two Φ29*Φ19*10 Rubber Plug (#100)

2. Attach the Selector Pin W/Coil (#33) & eight Button (#61) to the Top Plate (#34).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 200LBS Weights !

Item No. Description Qty

109 Weight Plate 5LBS 2

110 Weight Plate 10LBS 3

111 Weight Plate 15LBS 10

200LBS Weights
