AssemblyAssembly

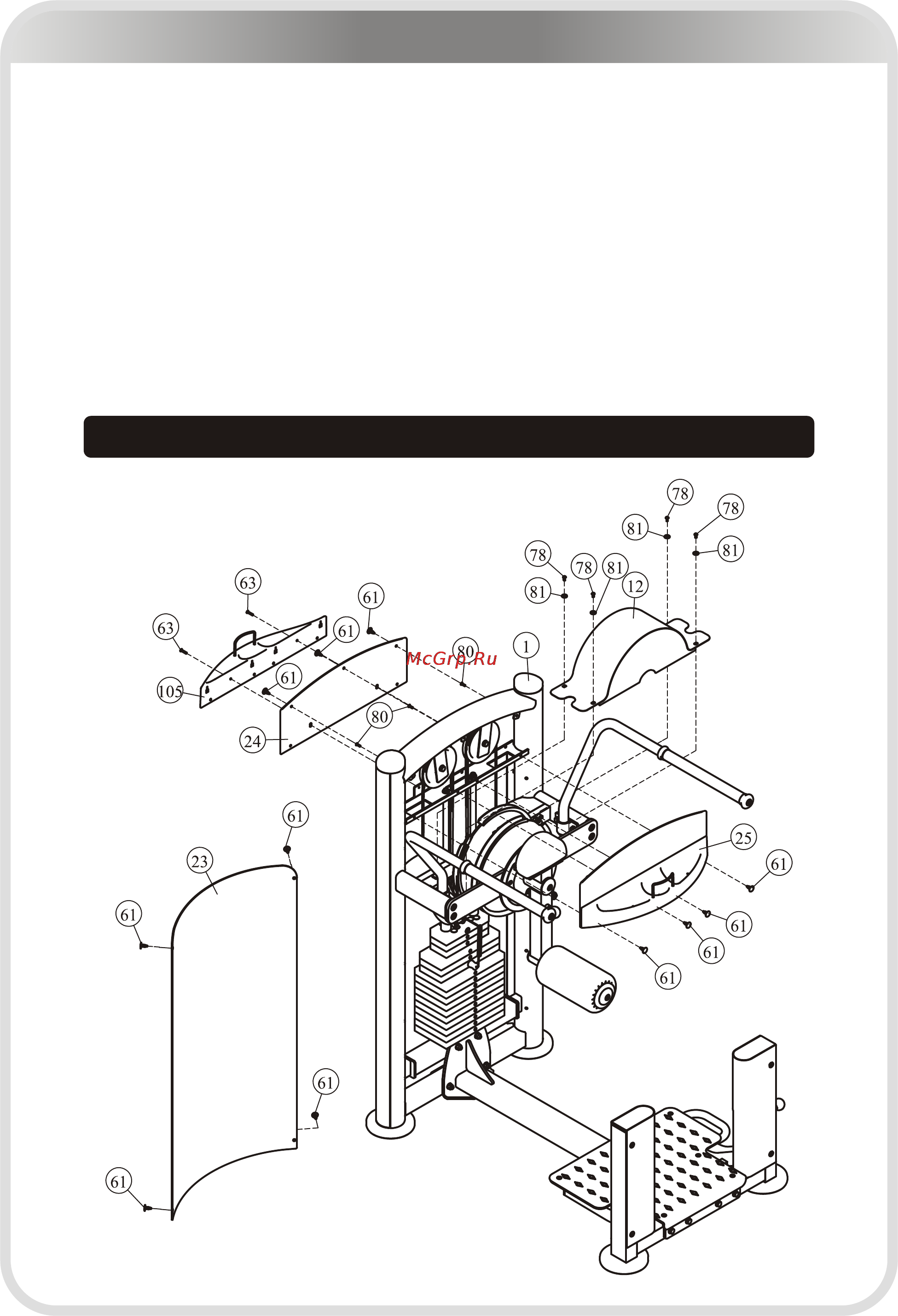

STEP 9

1. Attach Rear Shroud (#23) to the Weight Stack Frame (#1) using:

four Button (#61)

2. Attach the Top Front Shroud (#25) to the Weight Stack Frame (#1) using:

three M5*16 Flat Philips Screw (#80) four Button (#61)

3. Attach the Top Rear Shroud A (#24) & the Rear Support (#105) to the Weight

Stack Frame (#1) using:

three Button (#61) two M5*25 Flat Philips Screw (#63)

4. Attach the Round Cover (#12) to the Weight Stack Frame (#1) using:

four M6*12 BHCS (#78) four Φ6.6*Φ18*1.6 Flat Washers (#81)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
