AssemblyAssembly

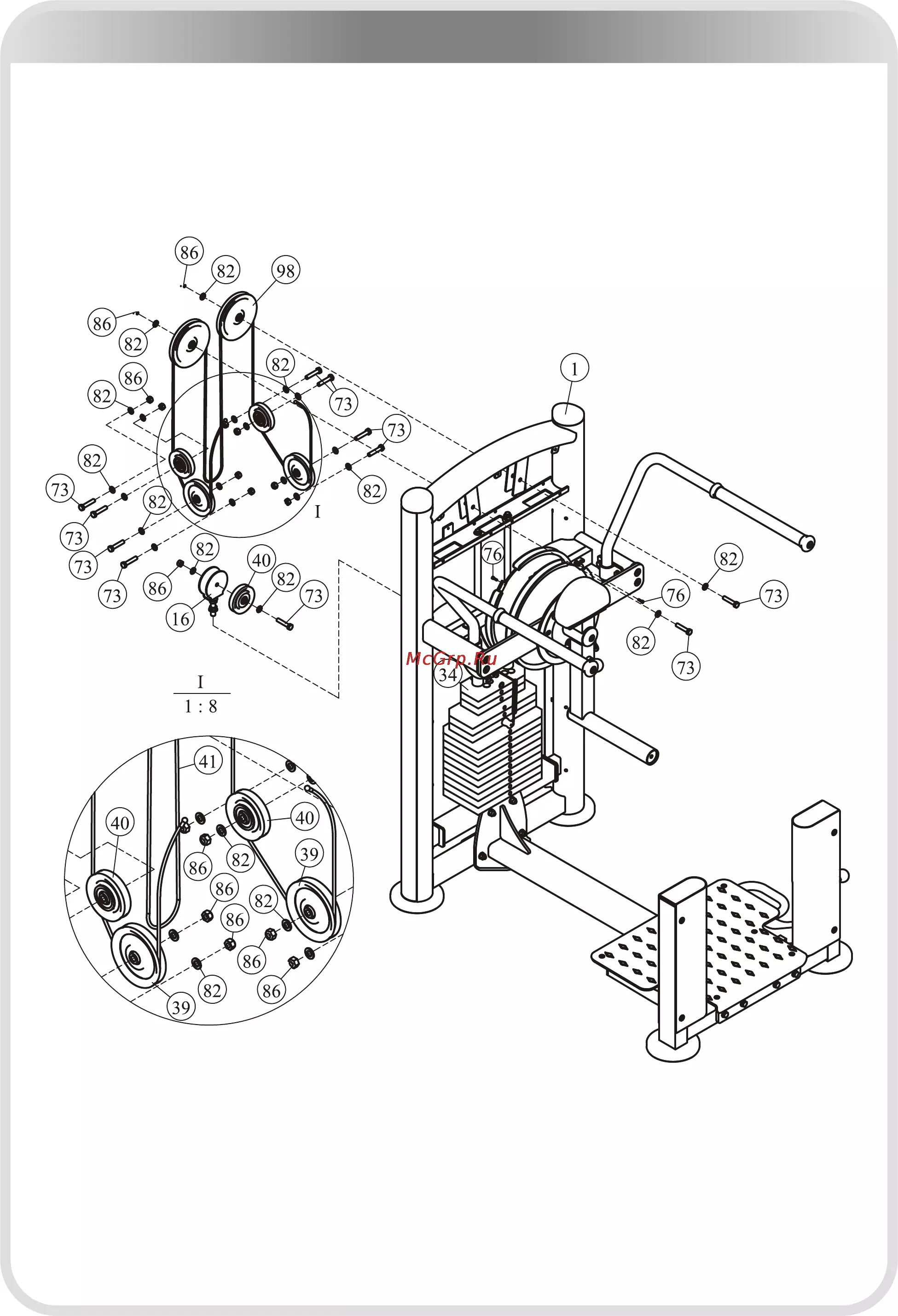

STEP 7

1. Attach the Pulley Bracket (#16) to the Top Plate (#34).

2. Attach the Cable (#41) to the Pulley Bracket (#16) using:

one M10*50 HHB (#73)

two Φ11*Φ20*2 Flat Washers (#82)

one M10 Nylon lock Nuts (#86)

one 3.5" Pulley (#40)

3. Attach two 6" Pulley (#98) to the Weight Stack Frame (#1) using:

two M10*50 HHB (#73)

four Φ11*Φ20*2 Flat Washers (#82)

two M10 Nylon lock Nuts (#86)

4. Attach two 4.5" Pulley (#39) to the Weight Stack Frame (#1)using:

four M10*50 HHB (#73)

eight Φ11*Φ20*2 Flat Washers (#82)

four M10 Nylon lock Nuts (#86)

5. Attach two 3.5" Pulley (#40) to the Weight Stack Frame (#1) using:

four M10*50 HHB (#73)

eight Φ11*Φ20*2 Flat Washers (#82)

four M10 Nylon lock Nuts (#86)

6. Attach the Cable (#41) to the Weight Stack Frame (#1) using:

two M4*15 SHCS (#76)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
