ASUS Z9PE-D16 6-29
5. Click
I accept the terms in the license agreement
and then click
Next
to
continue.

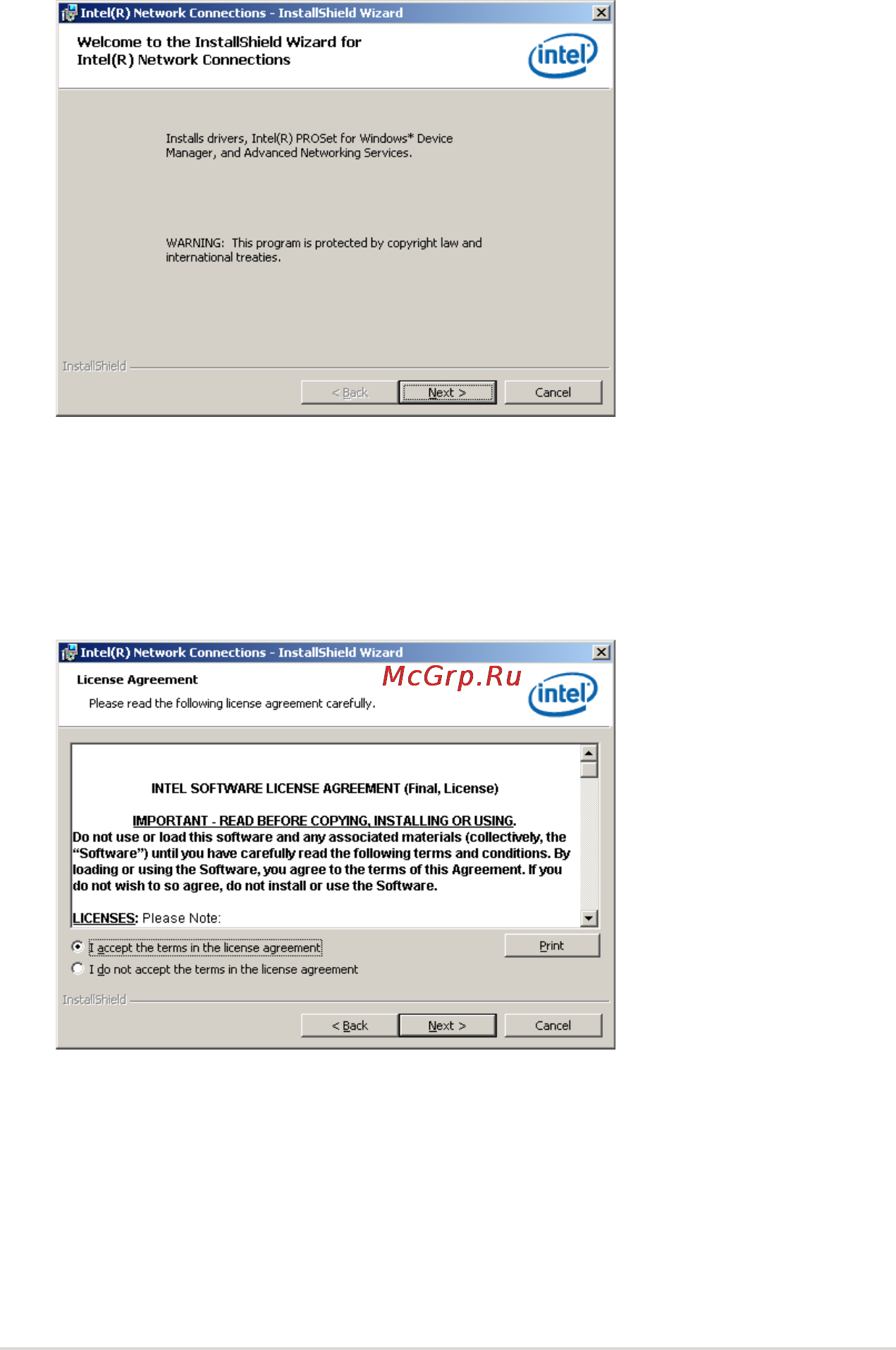

4. When the
Intel
®
PRO Network Connections – InstallShield Wizard
window
appears, click
Next
to start the installation.
