6-30 Chapter 6: Driver installation

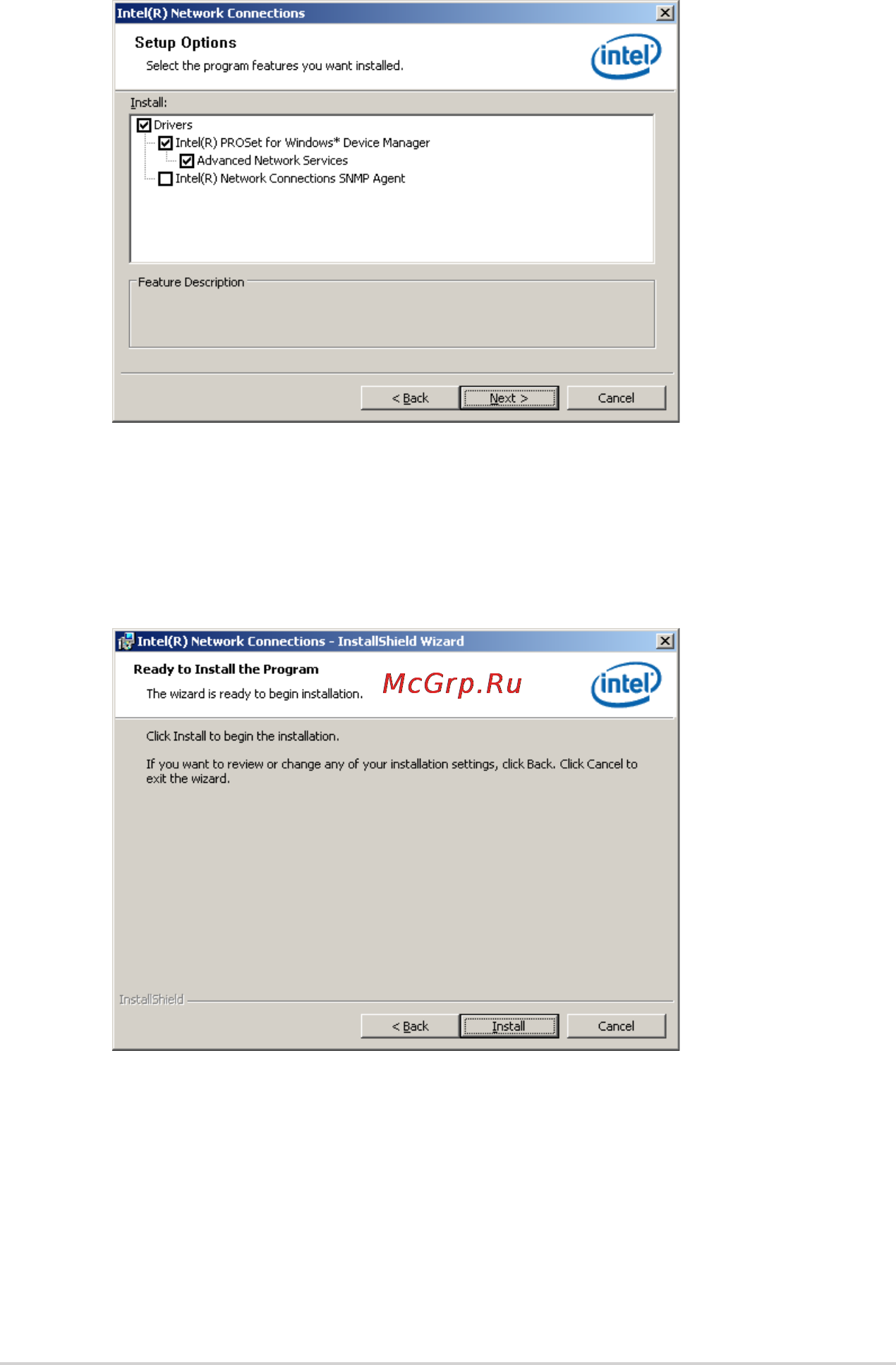

6. Select the programs you want to install and click
Next
to continue.
7. Click
Install
to start the installation.
