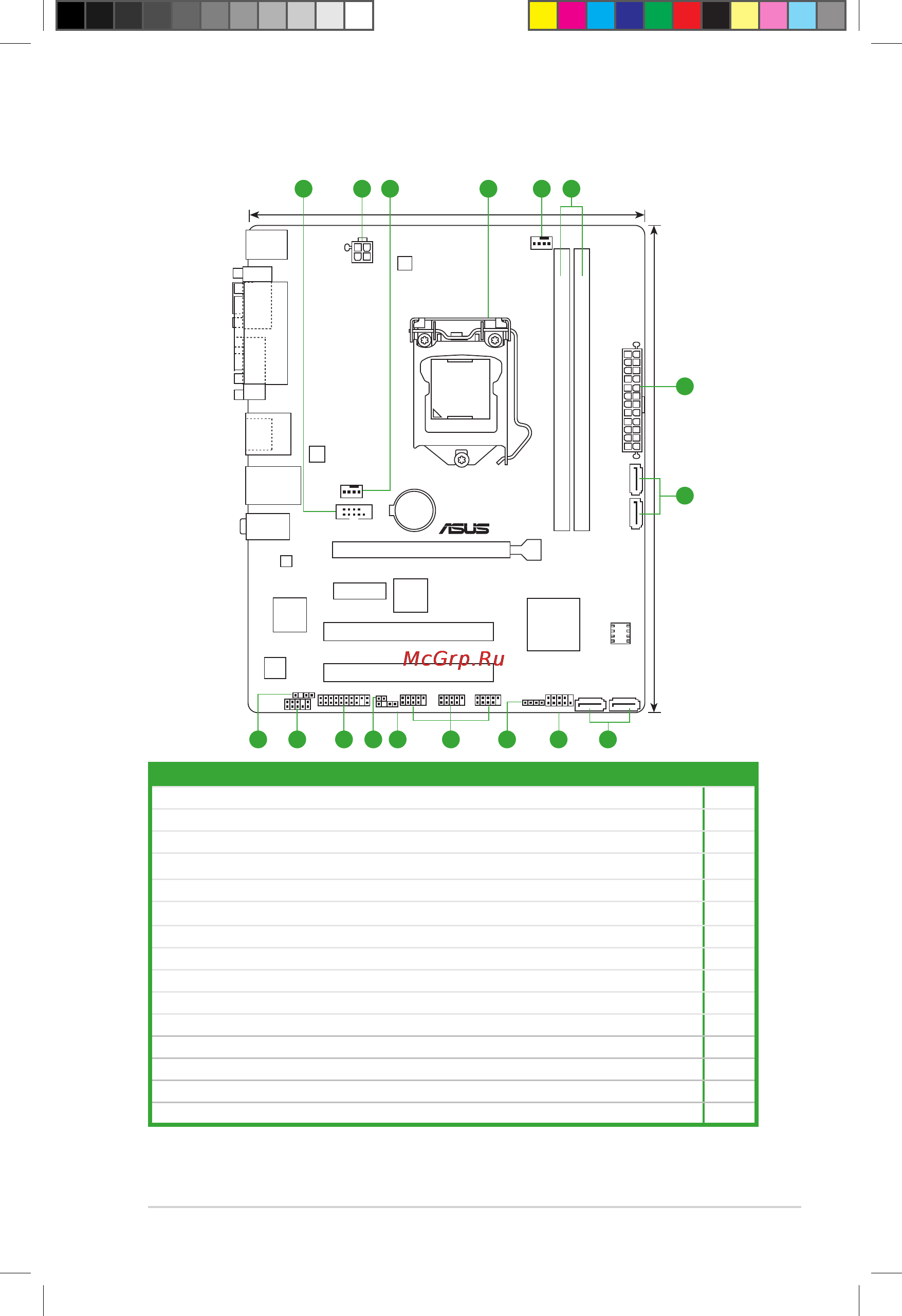

1.2.3 Motherboard layout
H81M-V3
PCIEX16
PCIEX1_1
PCI2
PCI1
RTL
8111G
TPM
AAFP
EATXPWR
CPU_FAN
BATTERY
Super
I/O
ALC
887-VD2
ASM
1442K
ASM
1083
KBMS
8Mb
BIOS
CLRTC
CHASSIS
SPEAKER
SPDIF_OUT
19.8cm(7.8in)
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
SATA6G_2 SATA6G_1
SATA3G_1 SATA3G_2
AUDIO
LAN_USB34
HDMI
USB3_12
CHA_FAN
24.4cm(9.6in)
LGA1150
DIGI
+VRM
Intel
®
H81
ATX12V
F_PANEL
USB1112USB910USB56
VGA
LPT
COM
COM
21 3 54 3
12 710131415 11
2
6
89
Connectors/Jumpers/Slots/LED
1. Serialportconnector(10-1pinCOM2) 1-19
2. ATXpowerconnectors(24-pinATXPWR,4-pinATX12V) 1-15
3. CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN) 1-18
4. Intel
®
LGA1150CPUsocket 1-4
5. DDR3DIMMslots 1-7
6. Intel
®
H81SerialATA6.0Gb/sconnector(7-pinSATA6G_1~2) 1-17
7. Intel
®
H81SerialATA3.0Gb/sconnector(7-pinSATA3G_1~2) 1-17
8. Systempanelconnector(10-1pinF_PANEL) 1-21
9. Speakerconnector(4-pinSPEAKER) 1-19
10. USB2.0connectors(10-1pinUSB56,USB910,USB1112) 1-20
11. Chassisintrusionconnector(4-1pinCHASSIS) 1-22
12. ClearRTCRAM(2-pinCLRTC) 1-12
13. TPMheader(20-1pinTPM) 1-16
14. Frontpanelaudioconnector(10-1pinAAFP) 1-16
15. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-22
ASUS H81M-V3
1-3
