Asus h81m-v3 [28/50] H81m v3 usb2 connectors
![Asus h81m-v3 [28/50] H81m v3 usb2 connectors](/views2/1161712/page28/bg1c.png)

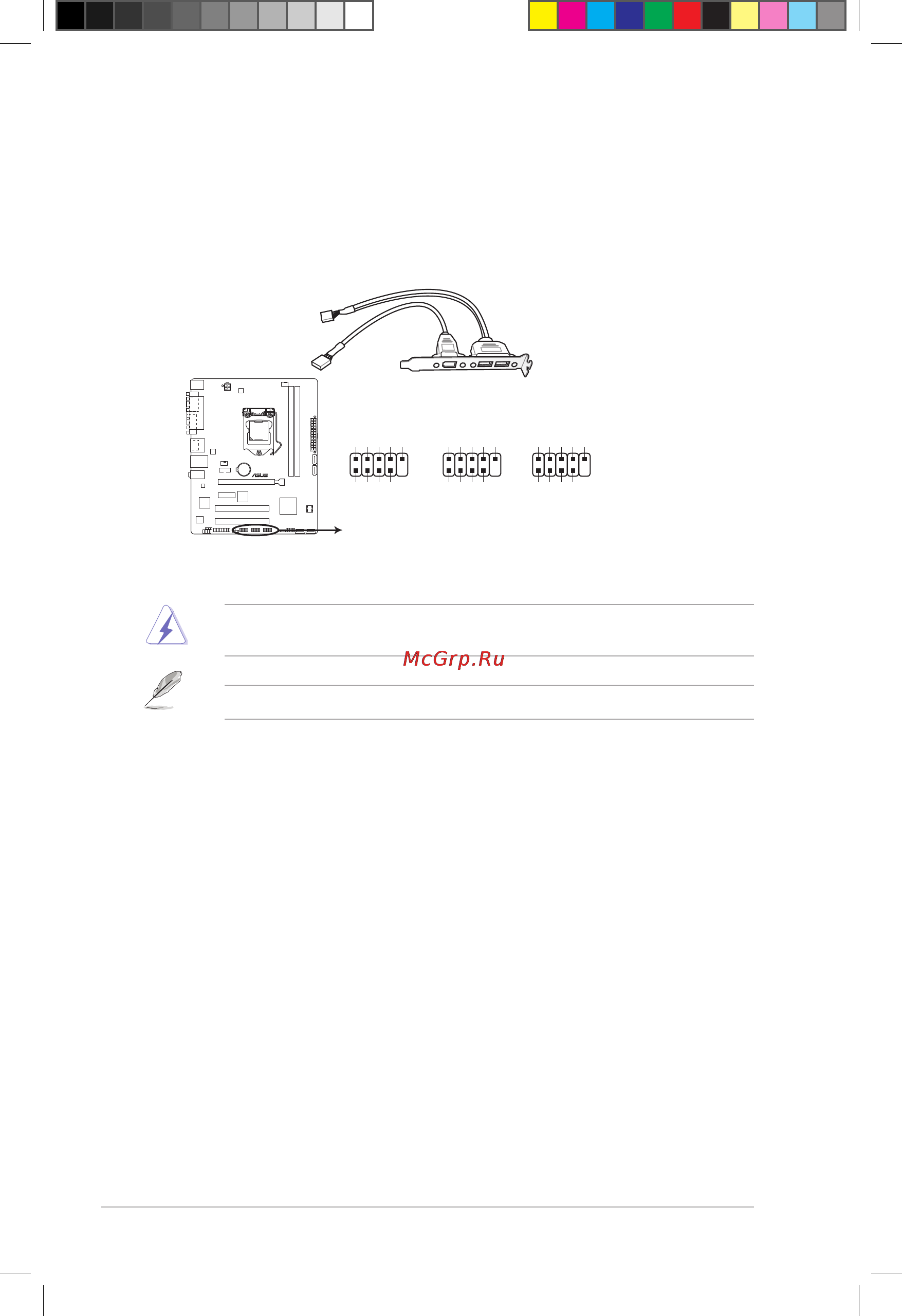

9. USB 2.0 connectors (10-1 pin USB56, USB910, USB1112)
TheseconnectorsareforUSB2.0ports.ConnecttheUSBmodulecabletoanyof
theseconnectors,theninstallthemoduletoaslotopeningatthebackofthesystem
chassis.TheseUSBconnectorscomplywithUSB2.0specicationsandsupportsupto
480Mbpsconnectionspeed.
Neverconnecta1394cabletotheUSBconnectors.Doingsowilldamagethe
motherboard!
TheUSB2.0moduleispurchasedseparately.
H81M-V3
H81M-V3 USB2.0 connectors
PIN 1
USB+5V
USB_P11-
USB_P11+
GND
NC
USB+5V
USB_P12-
USB_P12+
GND
USB1112USB910
PIN 1
USB+5V
USB_P9-
USB_P9+
GND
NC
USB+5V
USB_P10-
USB_P10+
GND
USB56
PIN 1
USB+5V
USB_P5-
USB_P5+
GND
NC
USB+5V
USB_P6-
USB_P6+
GND
1-20
Chapter 1: Product introduction
