Asus h81m-v3 [30/50] H81m v3 chassis intrusion connector
![Asus h81m-v3 [30/50] H81m v3 chassis intrusion connector](/views2/1161712/page30/bg1e.png)

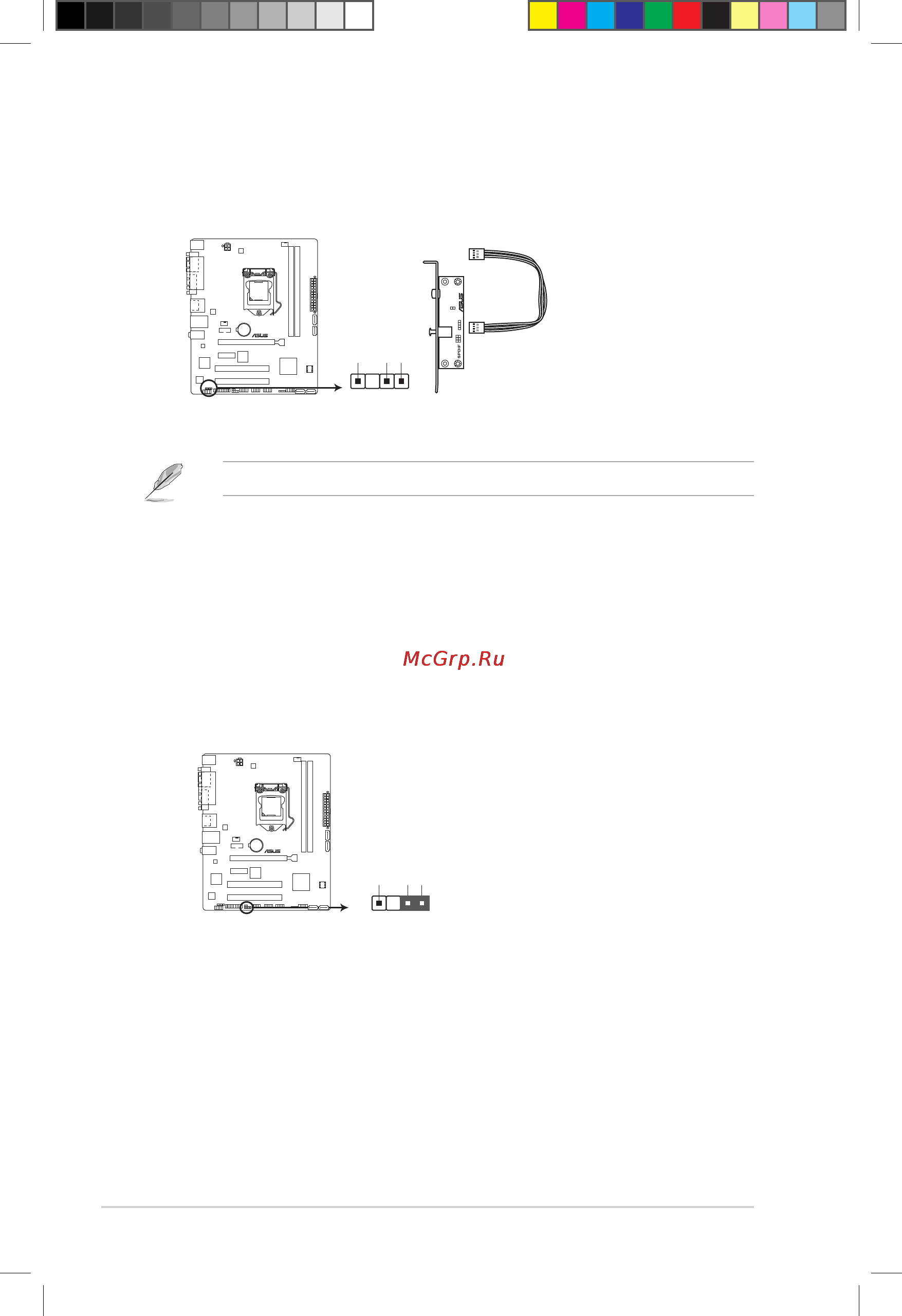

11. Digital audio connector (4-1 pin SPDIF_OUT)
ThisconnectorisforanadditionalSony/PhilipsDigitalInterface(S/PDIF)port.
TheS/PDIFmoduleispurchasedseparately.
12. Chassis intrusion connector (4-1 pin CHASSIS)
Thisconnectorisforachassis-mountedintrusiondetectionsensororswitch.Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusionsensororswitchsendsahigh-levelsignaltothisconnectorwhenachassis
componentisremovedorreplaced.Thesignalisthengeneratedasachassisintrusion
event.
Bydefault,thepinlabeled“ChassisSignal”and“Ground”areshortedwithajumper
cap.Removethejumpercapsonlywhenyouintendtousethechassisintrusion
detection feature.
H81M-V3
SPDIF_OUT
+5V
SPDIFOUT
GND
H81M-V3 Digital audio connector
PIN 1
+5VSB_MB
Chassis Signal
GND
CHASSIS
H81M-V3 Chassis intrusion connector
H81M-V3
1-22
Chapter 1: Product introduction
