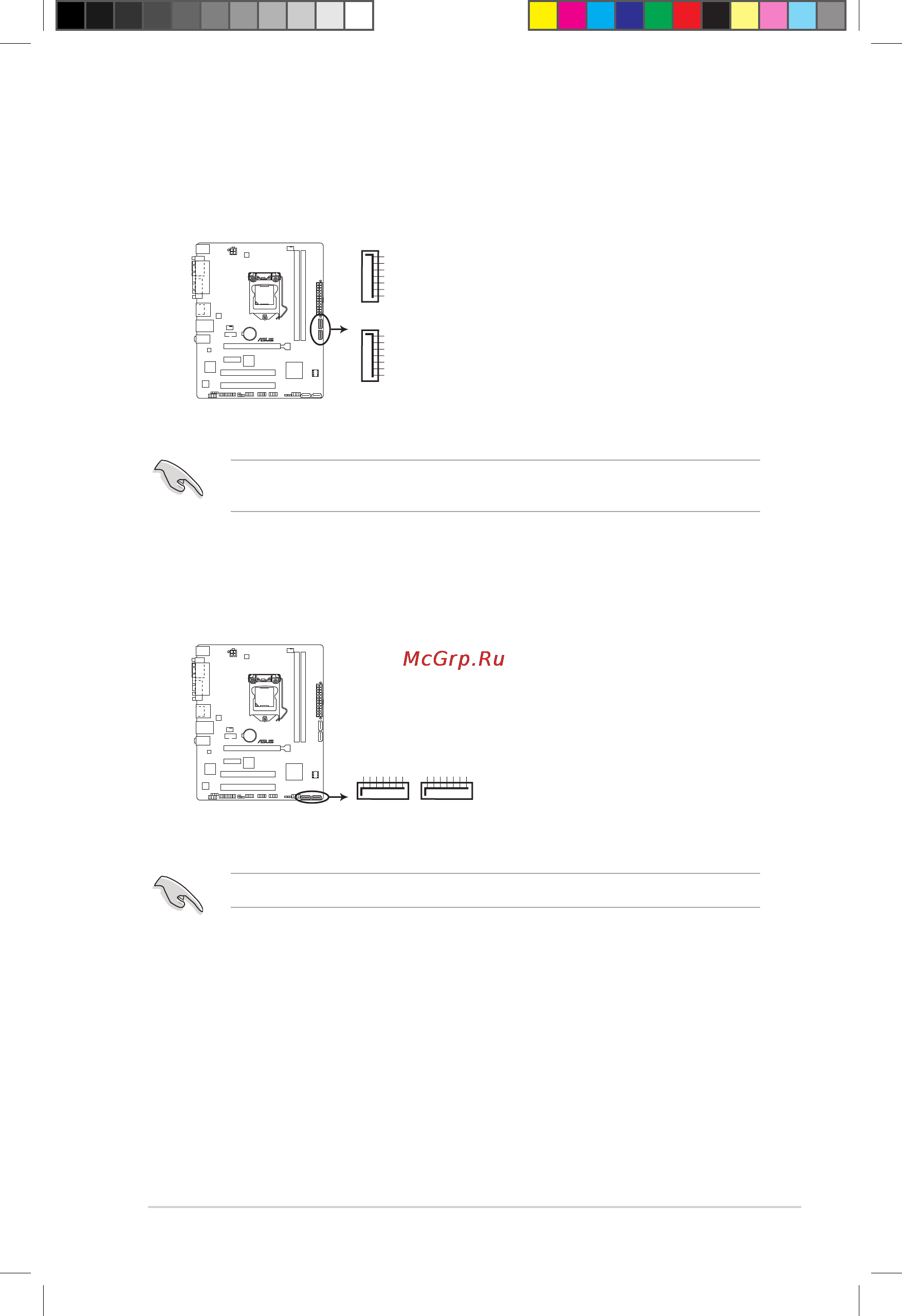

4. Intel
®
H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~2 [gray])
ThisconnectorconnectstoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/ssignalcables.
Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto[AHCI].
See section 2.6.3 SATA Configuration for details.
5. Intel
®
H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1~2)
ThisconnectorconnectstoSerialATA3.0Gb/sharddiskdrivesviaSerialATA3.0
Gb/ssignalcables.
Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto[AHCI].
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
SATA6G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
H81M-V3
H81M-V3 SATA 6.0Gb/s connectors
H81M-V3
H81M-V3 SATA 3.0Gb/s connectors
SATA3G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
SATA3G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
ASUS H81M-V3
1-17
