1-20
Chapter 1: Product introduction
11. Intel
®

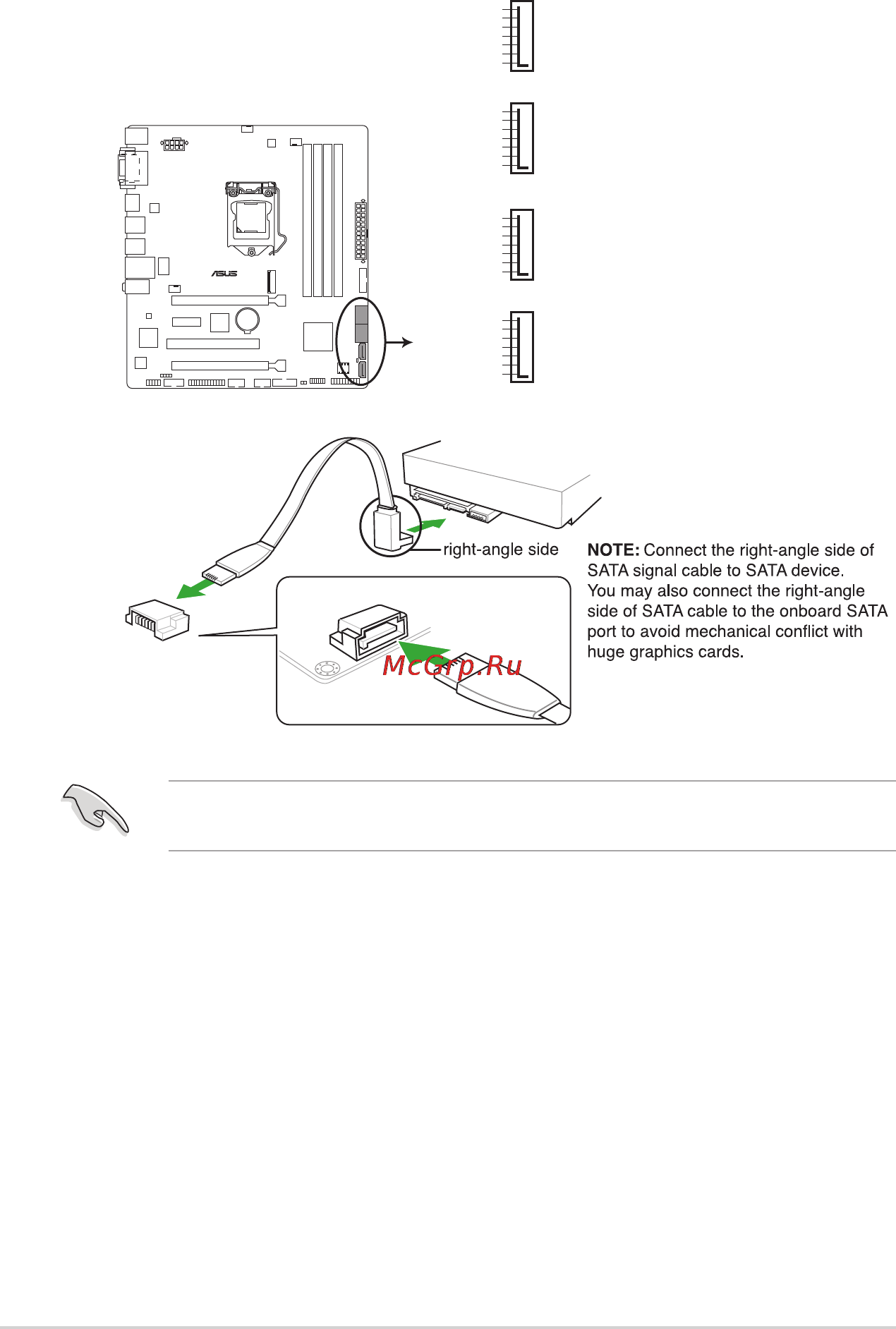

H170 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_3~6)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/s signal cables.
Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto[AHCI].
Seesection2.6.6SATAConguration for details.
SATA6G_6
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXN6
RSATA_RXP6
GND
SATA6G_5
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXN5
RSATA_RXP5
GND
SATA6G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
SATA6G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
H170M-E D3 Intel
®
SATA 6.0Gb/s connectors
H170M-E D3
