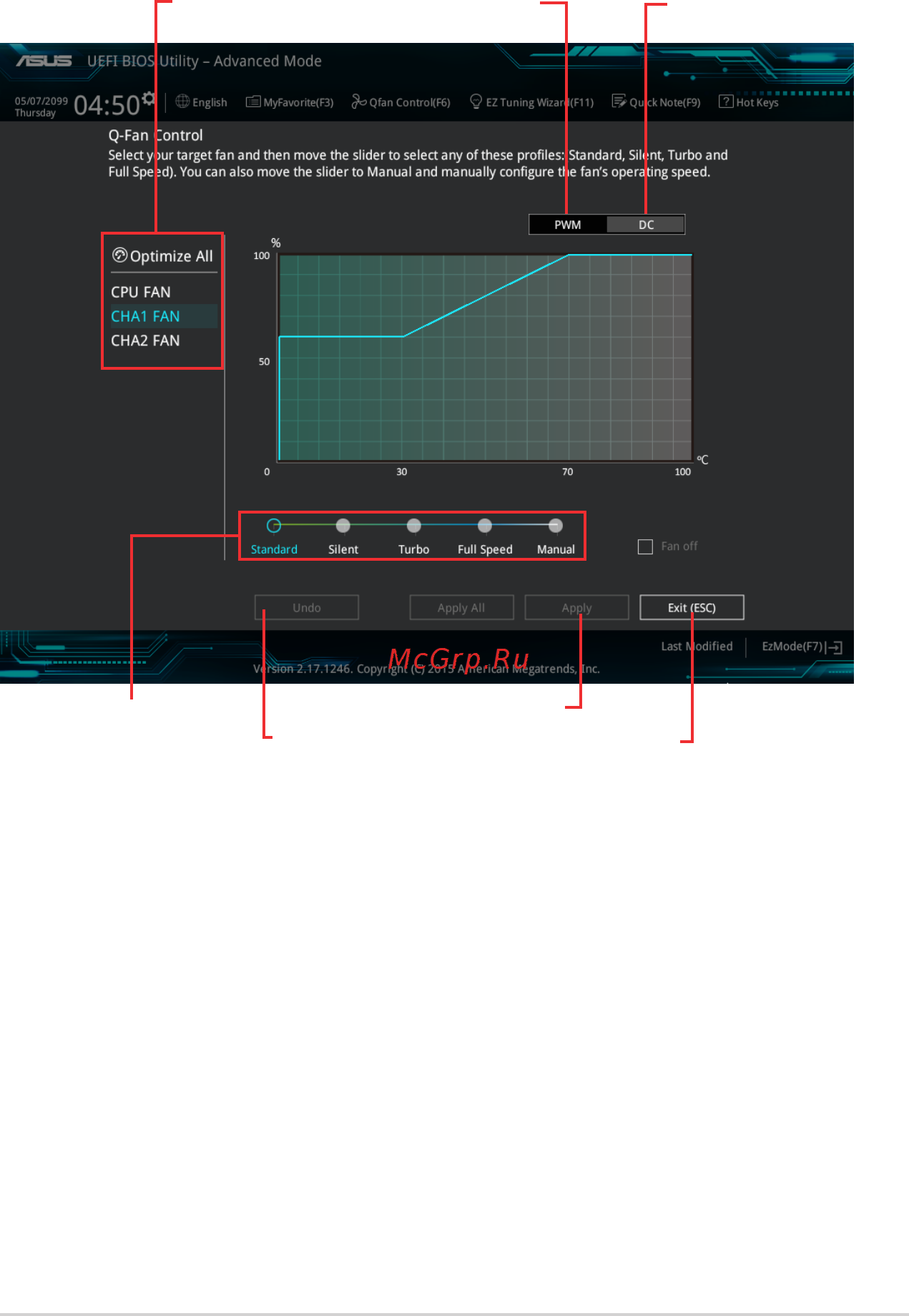

2.2.3 QFan Control
The QFan Control allows you to set a fan prole or manually congure the operating speed of
your CPU and chassis fans.
Click to select a fan
to be congured
Click to activate
PWM Mode
Click to undo
the changes
Click to apply
the fan setting
Click to
go back to
main menu
Select a prole to apply
to your fans
Click to activate DC
Mode
ASUS H170M-E D3 2-11
