Asus h170m-e d3 [47/83] Ez tuning wizard

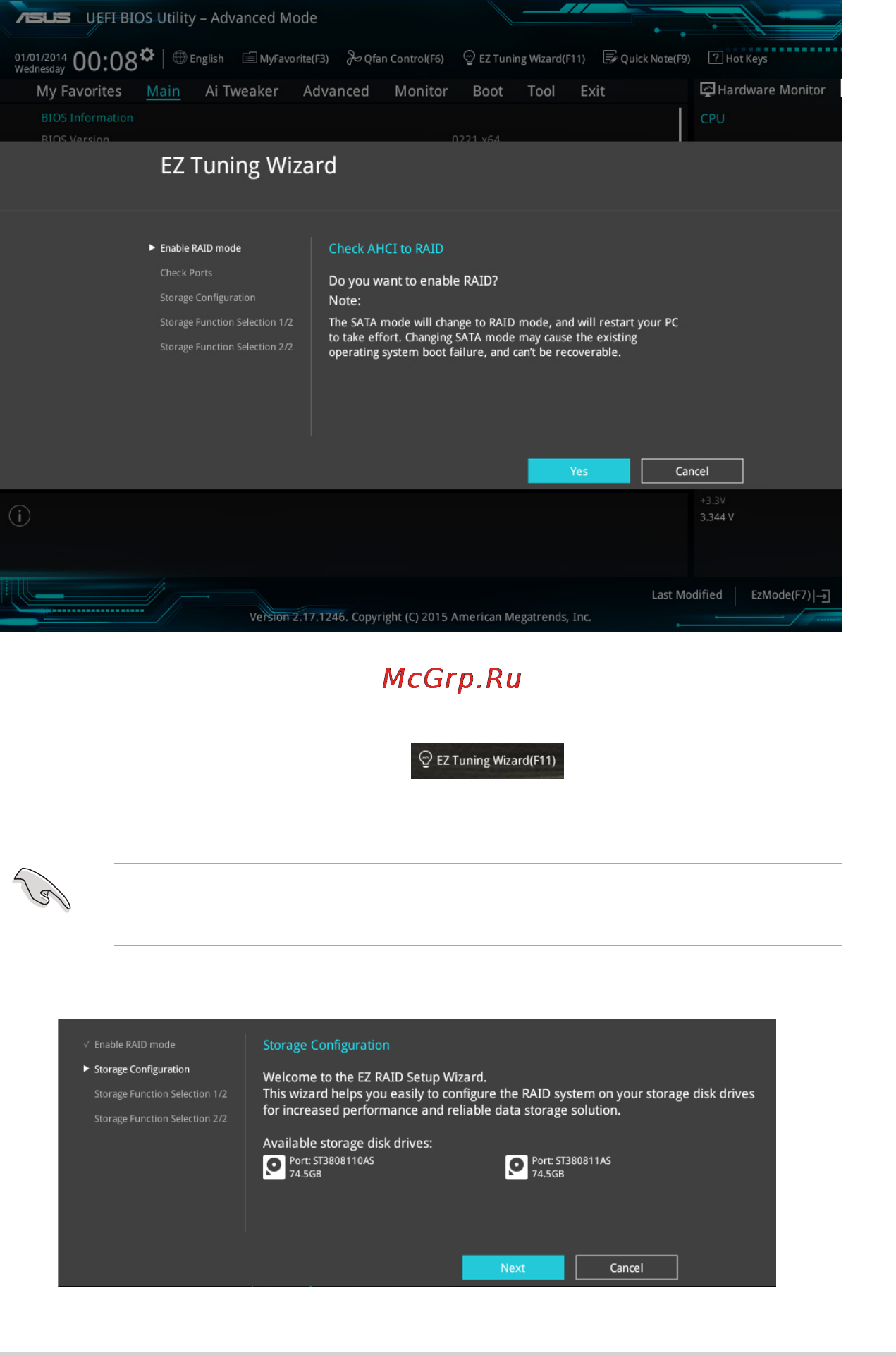

2.2.4 EZ Tuning Wizard

EZ Tuning Wizard allows you to easily set RAID in your system using this feature.

Creating RAID

To create RAID:

1. Press <F11> on your keyboard or click from the BIOS screen to open

EZ Tuning Wizard screen.

2. Click Yes to enable RAID.

• Ensure that your HDDs have no existing RAID volumes.

• Ensure to connect your HDDs to Intel

SATA connectors.

3. The available HDDs display. Click Next to continue.

ASUS H170M-E D3 2-13
