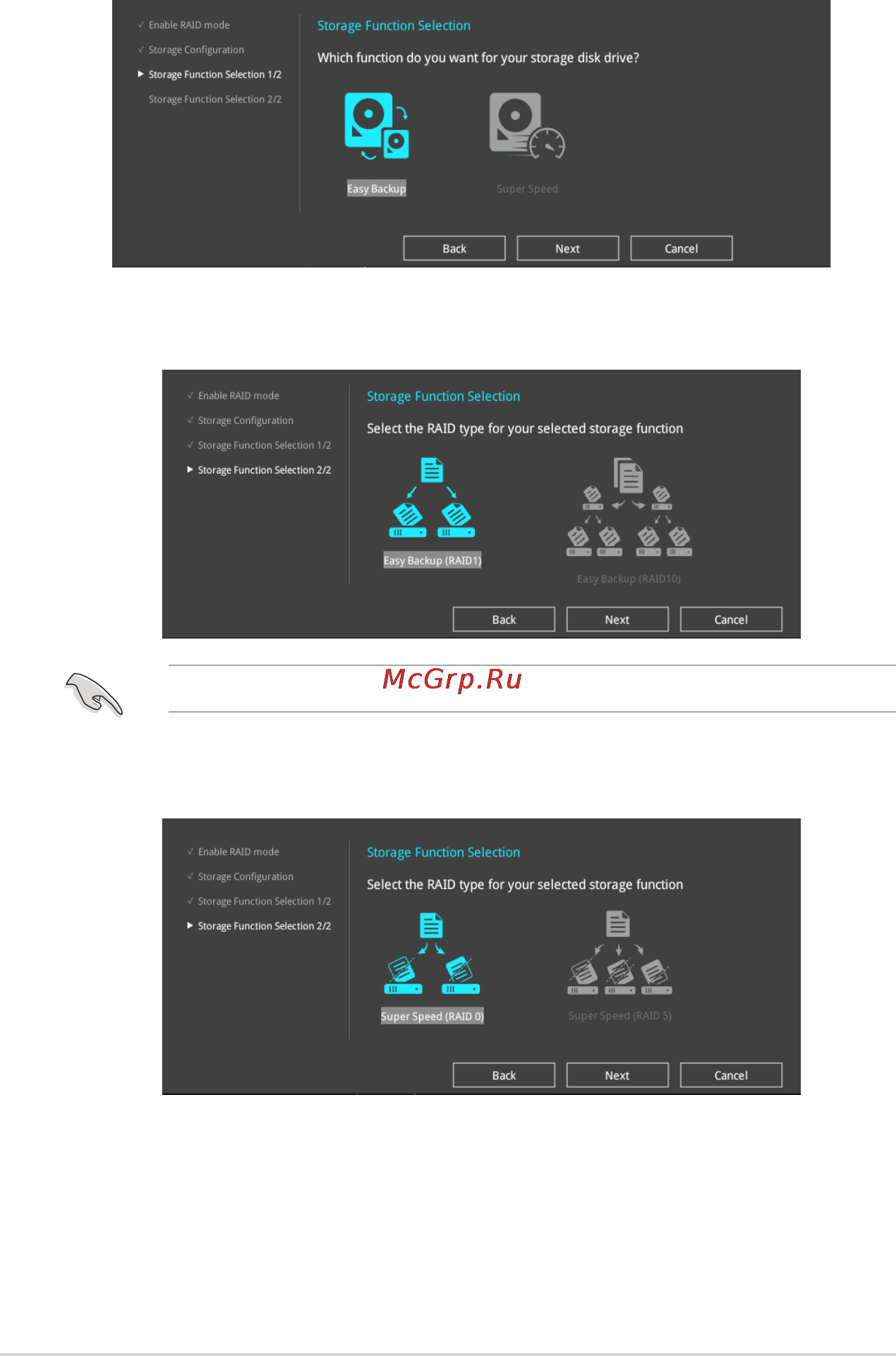

4. Select the type of storage for your RAID Easy Backup or Super Speed, then click
Next.
a. For Easy Backup, select from Easy Backup (RAID1) or Easy Backup (RAID10)
then click Next.
b. For Super Speed, select from Super Speed (RAID0) or Super Speed (RAID5)
then click Next.
You can only select Easy Backup (RAID 10) if you connect four (4) HDDs.
5. After selecting the type of RAID, click Yes to continue the RAID setup.
6. After the RAID setup is done, click Yes to exit the setup then click OK to reset your
system.
2-14 Chapter 2: Getting started
