Printing procedure

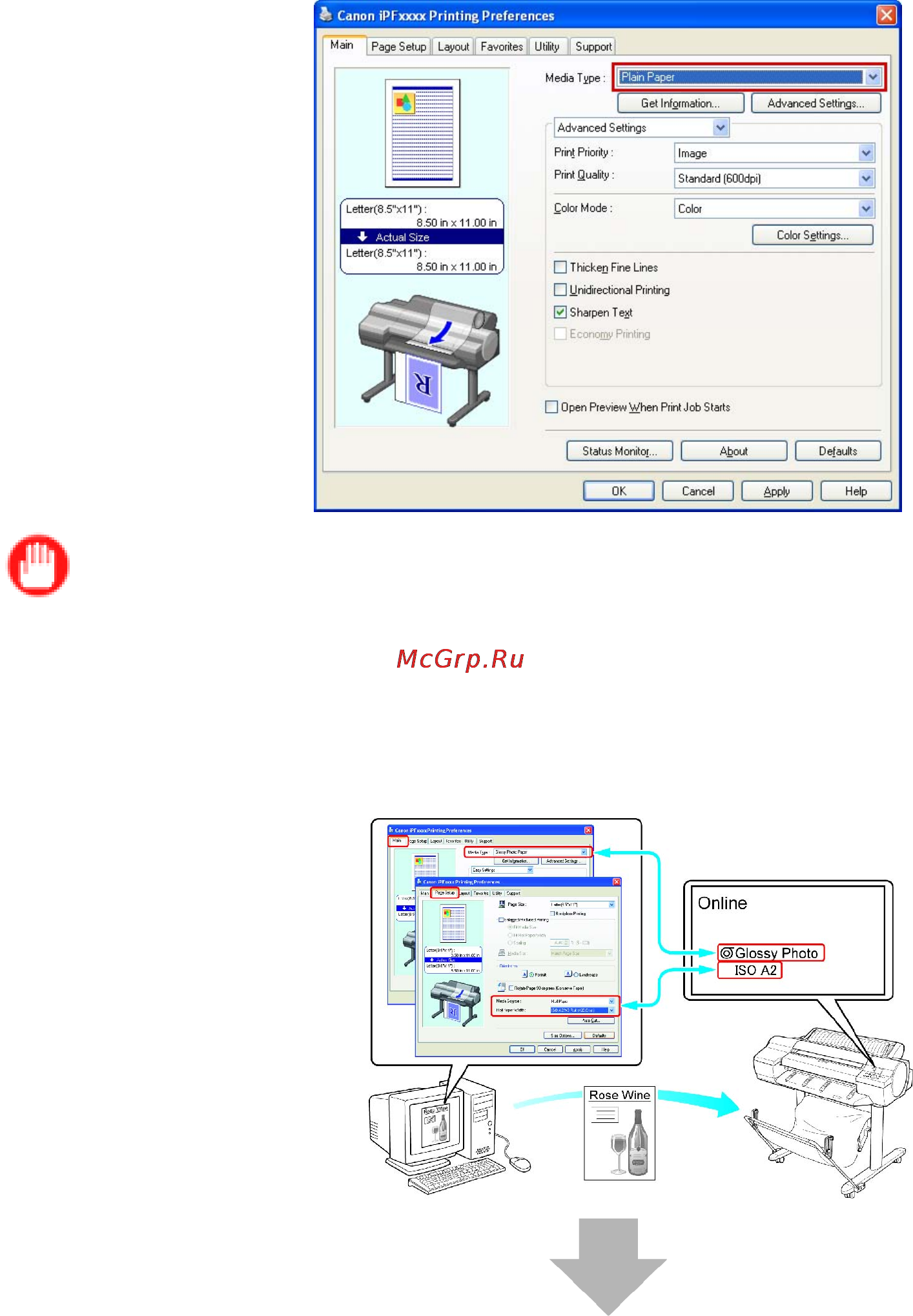

8. Complete settings in the printer driver for the type of paper and other details.
• Specifying Paper in the Printer Driver (Windows) (→P .205)
• Specifying Paper in the Printer Driver (Mac OS X) (→P .207)
Important
• Always specify the same type and size of paper in the printer menu and printer driver .
If the type and size do not match, an error message will be displayed and printing is not possible.
• Papr Size Mismatch (→P .539)
• Papr T ype Mismatch (→P .538)
• Paper Mismatch (→P .538)
88 Basic Printing W orkow
