Handling rolls

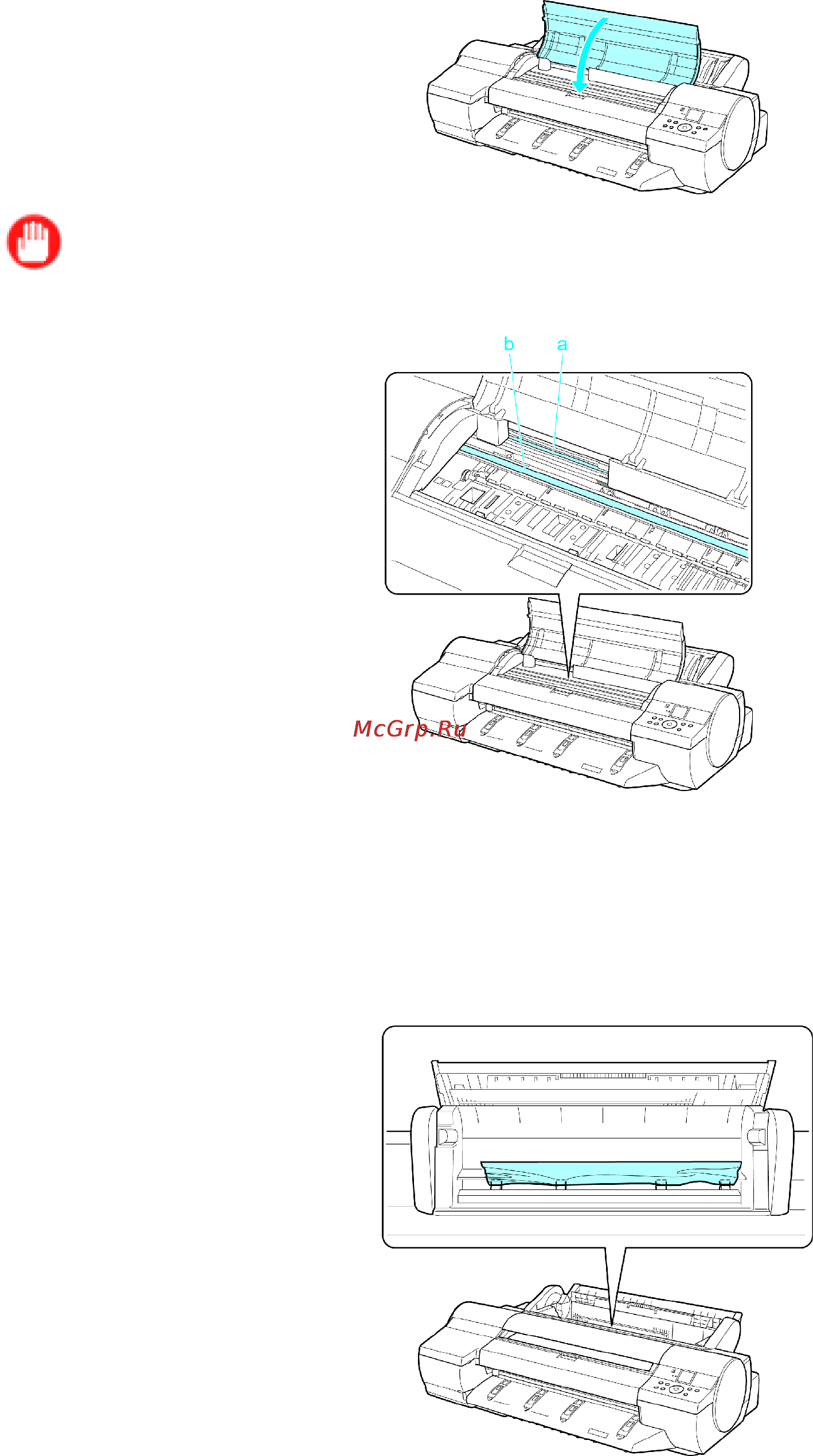

2. Clear any jammed paper from inside the T op Cover .
After removing the paper , make sure there are no other scraps of paper in the printer .
3. Close the T op Cover .
Important
• Do not touch the Linear Scale (a) or Carriage Shaft (b).
• If paper from a roll is jammed by the Paper Feed Slot
1. Open the Roll Feed Unit Cover .
2. Remove the jammed paper from the Paper Feed Slot .
After removing the paper , make sure there are no other scraps of paper in the printer . If paper
is jammed deep in the Paper Feed Slot , (→P .122) remove the Roll Feed Unit and clear the
paper jam.
Handling Paper 121
