Network Setting
Conguring the Communication Mode Manually
This topic gives instructions for conguring the communication mode manually .

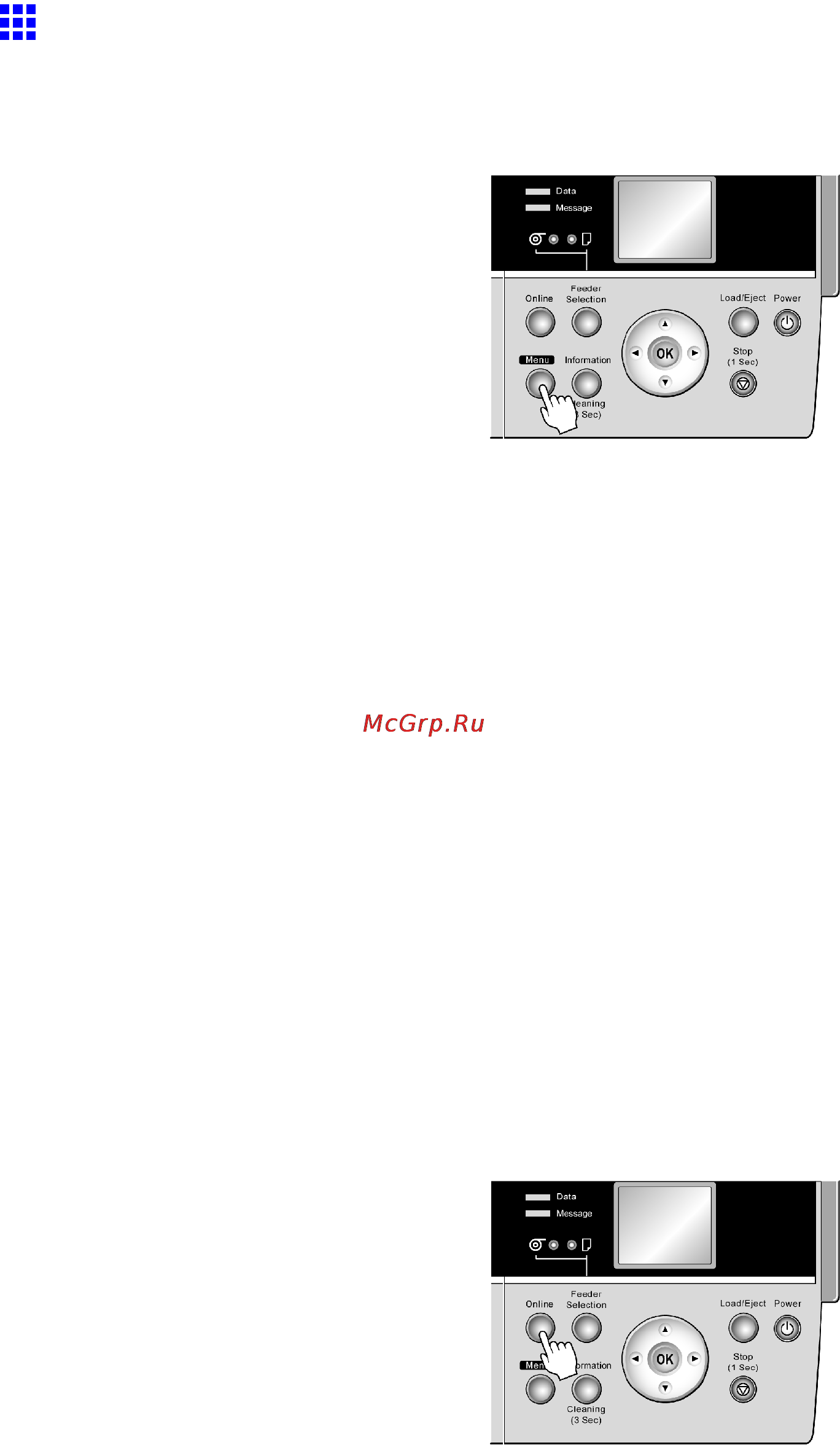

1. Press the Menu button to display MAIN MENU .
2. Press ▲ or ▼ to select Interface Setup , and then press ► .
3. Press ▲ or ▼ to select Ethernet Driver , and then press ► .
4. Press ▲ or ▼ to select Auto Detect , and then press ► .
5. Press ▲ or ▼ to select Off , and then press OK .
Return to the Ethernet Driver menu.
6. Press ▲ or ▼ to select Comm.Mode , and then press ► .
7. Press ▲ or ▼ to select the communication mode, and then press the OK button.
Return to the Ethernet Driver menu.
8. Press ▲ or ▼ to select Ethernet T ype , and then press ► .
9. Press ▲ or ▼ to select the Ethernet type, and then press OK .
Return to the Ethernet Driver menu.
10. Press ▲ or ▼ to select Spanning T ree , and then press ► .
1 1. Press ▲ or ▼ to enable or disable spanning tree support, and then press OK .
Return to the Ethernet Driver menu.
12. Press the Online button.
After the conrmation message is displayed, press OK .
The printer will now restart.
