Handling rolls
Feeding Roll Paper Manually
Y ou can bring the printer of ine by pressing the Online button.

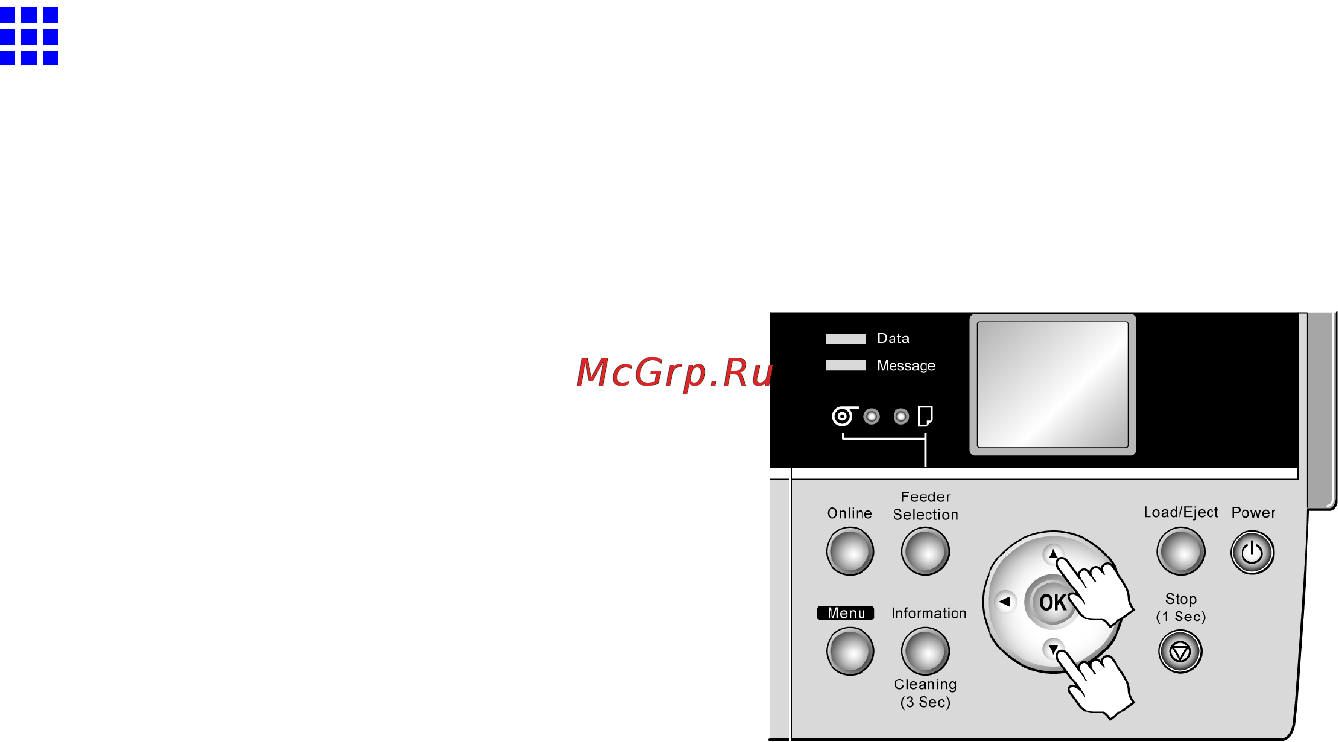

When the printer is of ine and roll paper is selected as the paper source, you can advance or retract the
roll by pressing ▲ or ▼ .
Press ▲ to retract the roll manually .
Press ▼ to advance the roll manually .
If you hold down the ▲ or ▼ button for less than a second, the roll paper will move about 1 mm (0.039 in).
If you hold down ▲ or ▼ for more than a second, the paper will move until you release the button. Release
the button when the Display Screen indicates End of paper feed. Cannot feed paper more. .
124 Handling Paper
