D-Link dir-860l/ru/a1a [32/143] Pppoe username password

28D-Link DIR-860L User Manual

Section 3 - Conguration

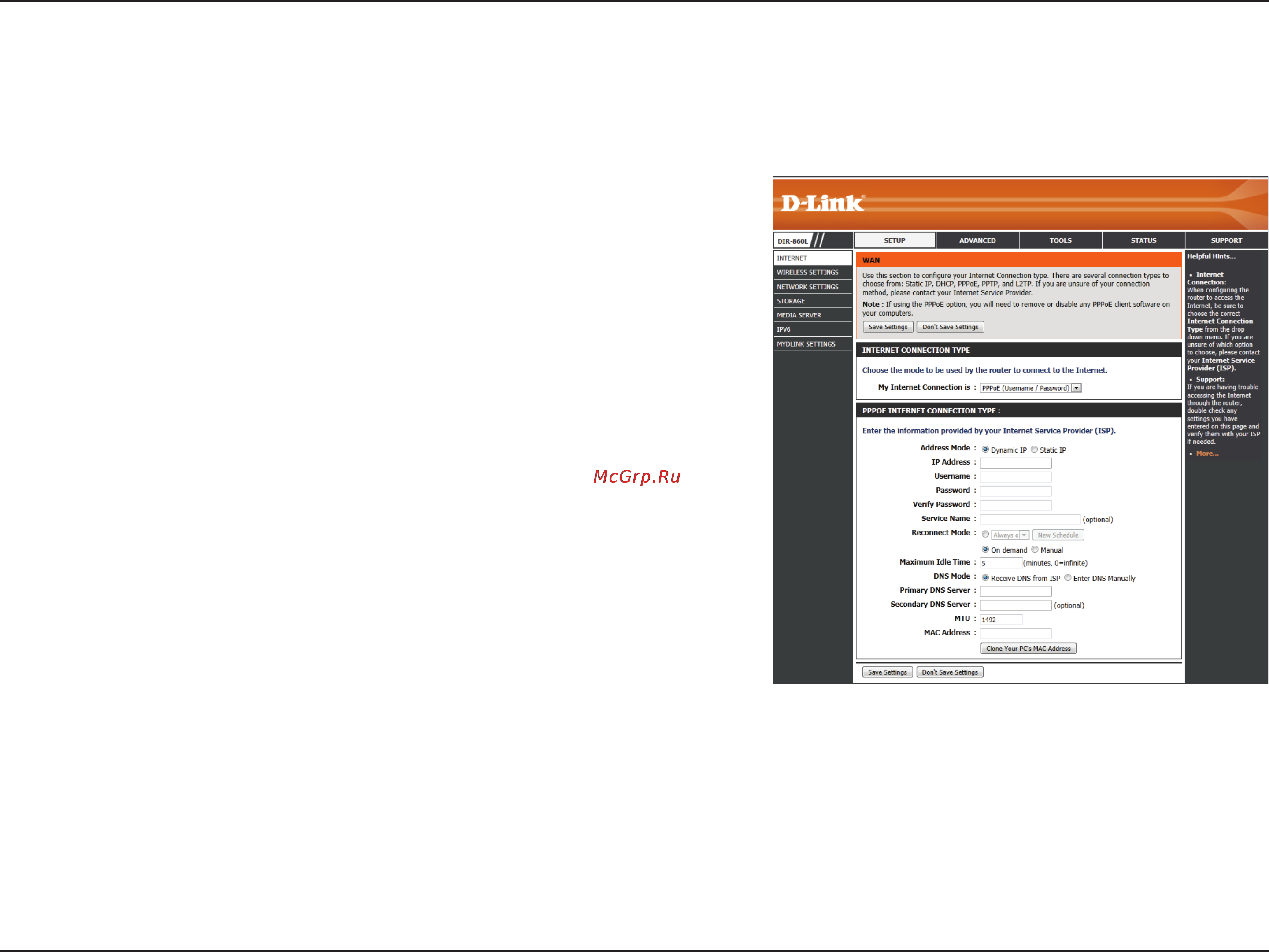

Select PPPoE.(Username/Password) from the drop-down menu.

Select Static.IP if your ISP assigned you an IP address, subnet mask,

gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE username.

Enter your PPPoE password and then retype the password in the next

box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection

is maintained during inactivity. To disable this feature, enable Auto-

reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default

MTU.

The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended

that you change the default MAC address unless required by your ISP. You can use the Clone.Your.PC’s.MAC.Address button to

replace the Internet port’s MAC address with the MAC address of your Ethernet card.

My Internet

Connection:

Address Mode:

IP Address:

Username:

Password:

Service Name:

Reconnect

Mode:

Maximum Idle

Time:

DNS Addresses:

MTU:

MAC Address:

PPPoE (Username/Password)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password.

This option is typically used for DSL services. Make sure to remove any PPPoE software from your computer. The software is not needed and will

not work through a router.
